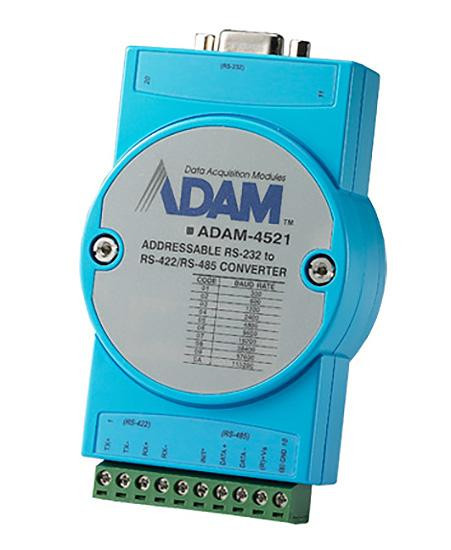

ADAM-4521-AE

Features Include:

• Power Input Unregulated: 10 ~ 30 VDC w/ power reversal protection
• Power Consumption: 1.0 W @ 24 VDC
• Connectors: 1 x DB9 female connector, 1 x 10-pin plug-in screw terminal
• Automatic RS-485 data flow control
• 1000 VDC isolation protection
• Surge protection RS-485 data line
• Transmission speed up to 115.2 Kbps
• LED indicator to monitor status
• Baud Rate (bps): 300 bps~115.2 kbps
• Converter/Repeater: RS-422/485 to RS-232
• Speed Modes (bps): 300, 600, 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k (software configurable)

Technical Information:

• Advantech ADAM-4510/S, ADAM-4520, ADAM-4521 Module Technical Data
• Advantech ADAM-4000 Series User Manual
• Advantech ADAM-4000 Series Access Port Instructions
• Advantech ADAM-4000 Series AIO Calibration Instructions
• Advantech ADAM-4000 Series Reconnection Instructions
• Advantech ADAM-4000 Series DO Voltage/Current Datasheet
• Advantech ADAM-4000 Series Tolerance Range Datasheet
