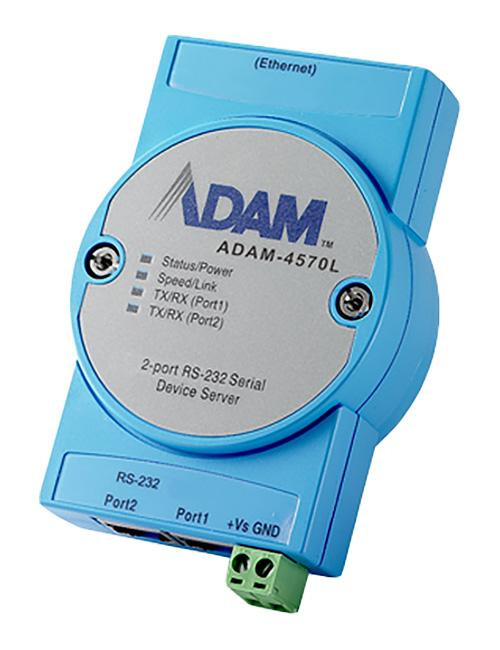

ADAM-4570L-DE
Alt: ADAM 4000 Series
$182.00
Serial Device Server, 2-Port RS-232/422/485
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- Power Consumption: 2.5W
- Power Input (DC): 10 ~ 30 VDC
- Power Operating Current: 0.3A @ 12 V
- Dimensions (W x H x D): 70 x 112 x 25 mm
- IP Protection Rating: IP30
- RJ-45 Port Connector Type: RJ-45, 1-Port
- Serial Port Connector Type: RJ48, 2-Port
- Baud Rate: 50 ~ 921.6 Kbps
- Supports RS-232 serial communication
- Supports baud rate up to 921.6 kbps
- Provides COM port redirection (Virtual COM) mode
- Allows a max. of 5 hosts to access one serial port
- Built-in 15 KV ESD protection for all serial signals
- Provides 10/100 Mbps auto-sensing Ethernet port
- Supports auto re-connection function
- Supports Windows 2000/XP/Vista drivers
- Supports remote update firmware
Technical Information:
- Advantech ADAM-4571/L/4570/L Series Serial Device Server Specifications
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
