$140.70

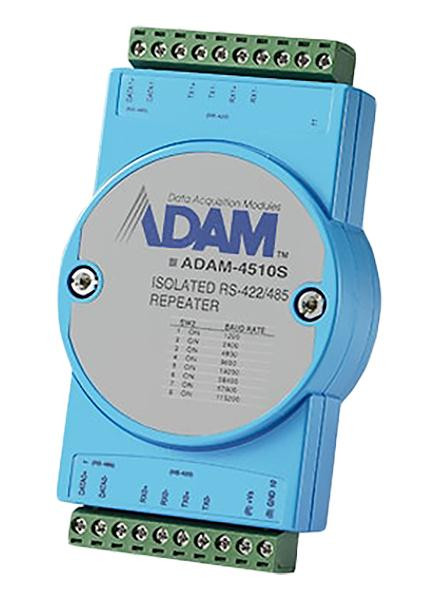

ADAM-4510S-F
Alt: ADAM 4000 Series
$195.30
Serial Repeater, RS-422/485 Repeater with Isolation, ADAM-4500 Series
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- Isolation Voltage: 3,000 VDC
- Operating Temperature: -10~70 °C (14~158 °F)
- Connectors: 2 x 10-pin plug-in screw terminal
- Input Voltage: Unregulated 10 ~ 30 VDC w/ power reversal protection
- Baud Rate (bps): 1200 bps~115.2 kbps
- Converter/Repeater: RS-422/485 Repeater
- Automatic RS-485 data fl ow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- LED indicator to monitor status
Power Consumption:
- Power Consumption ADAM-4510
- Typical: 1.1 W @ 24 VDC
- Max.: 1.2 W @ 24 VDC
- ADAM-4510S
- Typical: 1.5 W @ 24 VDC
- Max.: 1.6 W @ 24 VDC
Technical Information:
- Advantech ADAM-4510/S, ADAM-4520, ADAM-4521 Module Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
