ADAM-4168-C
Alt: ADAM 4000 Series
$204.00
Remote I/O Module, 8-Channel Relay Output Module, ADAM-4100 Series
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Specifications
Communication Module Type
I/O Modules
Series
ADAM 4000 Series
Warranty
2 Years
Alternate Part Number
ADAM 4000 Series
Weight
0.75
Features Include:
- Robust 8-ch Relay Output Module with Modbus
- Input Voltage: Unregulated 10 ~ 48 VDC
- Input Range: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, 0~15 mV, 0~50 mV, 0~100 mV, 0~500 mV, 0~1 V, 0~2.5 V
- lnput Type: mA, mV, V, T/C: J, K, T, E, R, S, B, N type
- Power Consumption: 1.8 W @ 24 VDC
- Contact Rating (Resistive): 0.5 A @ 120 VAC, 0.25 A @ 240 VAC, 1 A @ 30 VDC, 0.3 A @ 110 VDC
- Breakdown Voltage: 750 VAC (50/60 Hz)
- Total Switching Time: 10 ms
- Interface: RS-485, Micro USB
- Isolation Voltage: 3,000 VDC
- Connectors: 2 x plug-in terminal blocks (#14 ~ 22 AWG)
- Protocol: ASCII Command and Modbus/RTU
- Watchdog Timer: System (1.6 second) & Communication
Downloads
- Advantech ADAM-4118/4150/4168 Module Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$461.00
Advantech

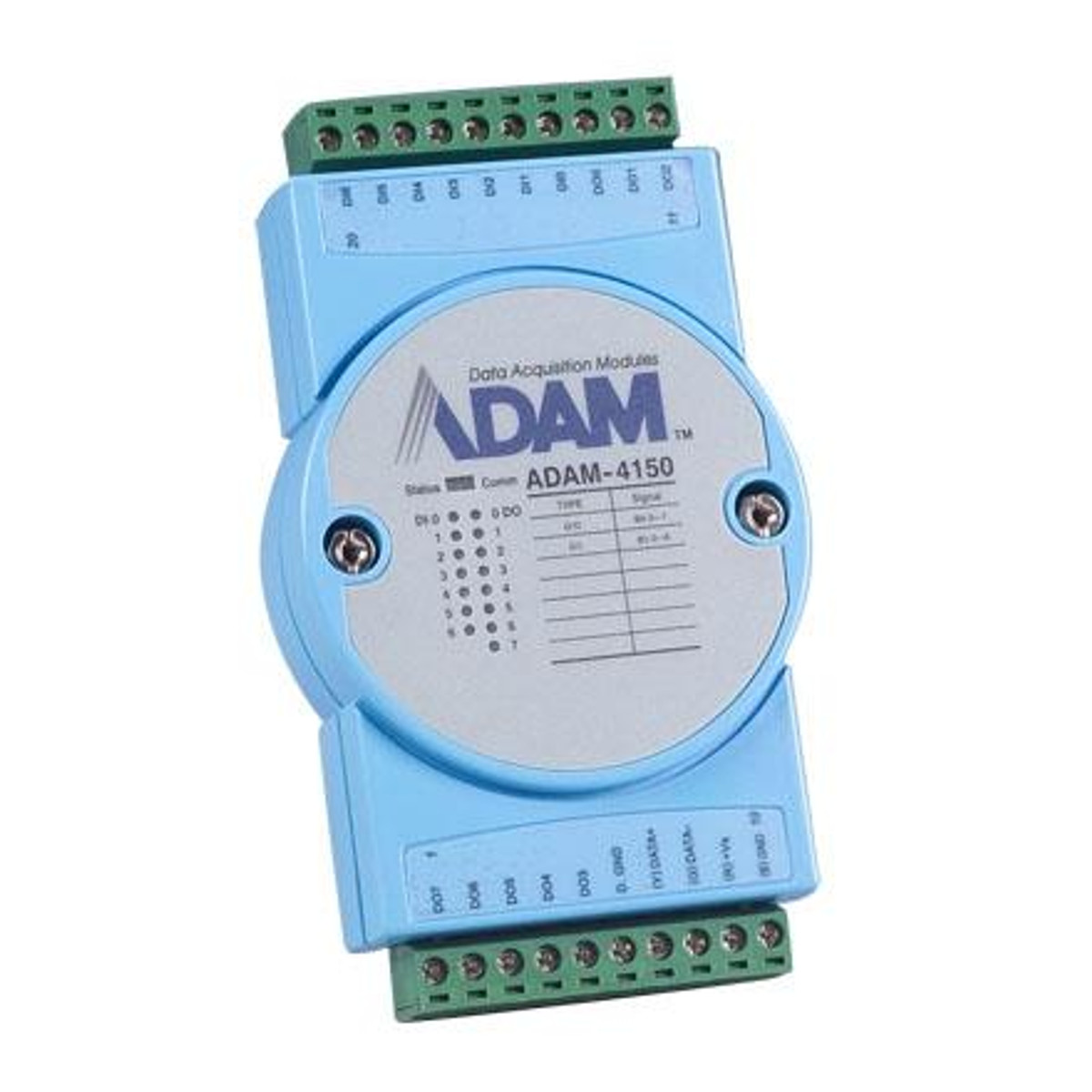

ADAM-4150-C
