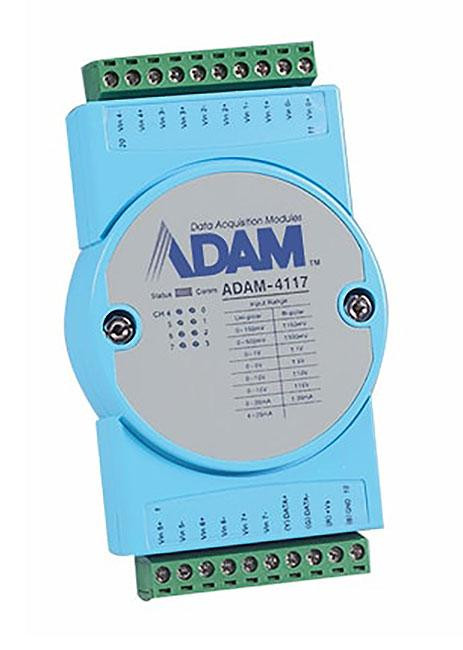

ADAM-4117-C
Alt: Latest Version of ADAM-4117-B and ADAM-4117-AE
$295.10
Remote I/O Module, 8-Channel Analog Input Module with Modbus, Robust, 10-48VDC, 8 Differential Configuration Channels, RS-485/USB Interface, ADAM-4000 Series
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Specifications
Alternate Part Number
Latest Version of ADAM-4117-B and ADAM-4117-AE
Communication Module Type
I/O Modules
Series
ADAM 4000 Series
Warranty
2 Years
Weight
0.75
Features Include:
- Robust 8-ch Analog Input Module with Modbus
- Input Voltage: 10~48 VDC
- Input Range: ±15 V, ±10 V, ±5 V, ±1V, ±0.5 V, ±0.15 V, 0~15 V, 0~10 V, , 0~5 V, 0~1 V, 0~0.5 V, 0~0.15 V, ±20 mA, 4~20 mA, 0~20 mA
- lnput Type: V, mV, mA
- Resolution (Bits): 16-bit
- Sampling Rates(S/s): 100 S/s (sum)
- Interface: RS-485, Micro USB
- Isolation Voltage: 3,000 VDC
- Connectors: 2 x 10-pin plug-in screw terminal
- Protocol: ASCII command, Modbus/RTU
- Operation temperature: -40~85°C, Power input:10VDC~48VDC
- Noise protection: 4kV surge(power),4kV EFT,8 kV ESD protection
- LED indicator to monitor I/O status
- Watchdog Timer: System (1.6 second) & Communication
Downloads
- Advantech ADAM-4510I/4520I/4117 Module Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
