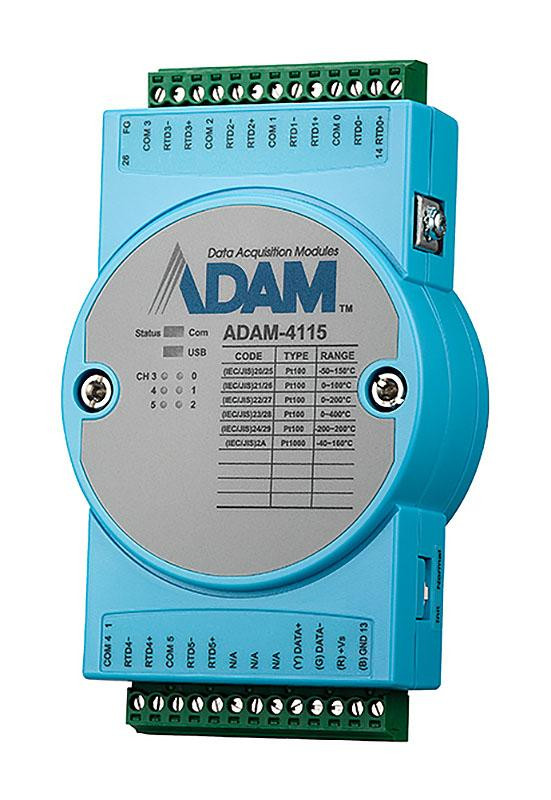

ADAM-4115-C
Alt: ADAM 4000 Series
$461.00
Remote I/O Module, 6-Channel RTD Input Module, ADAM-4100 Series
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Specifications
Communication Module Type
I/O Modules
Series
ADAM 4000 Series
Warranty
2 Years
Alternate Part Number
ADAM 4000 Series
Weight
0.75
Features Include:
- Robust 6-Ch RTD Input Module
- Operation temperature:-40~85°C
- Power input:10VDC~48VDC
- Power Consumption: 1.2 W @ 24 VDC
- Input Connections: 2, 3-wire
- Noise protection: 4kV surge(power),4kV EFT,8 kV ESD protection
- Interface: RS-485, Micro USB
- Isolation Voltage: 3,000 VDC
- Output Type: Sink
- Protocols: ASCII command, Modbus/RTU
- Watchdog Timer: System (1.6 s) & Communication
- Power Dissipation: 300 mW for each channel
Downloads
- Advantech ADAM-4115/4015 RTD Input Module Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
