$358.10
ADAM-4068-C
Alt: ADAM 4000 Series
$207.90

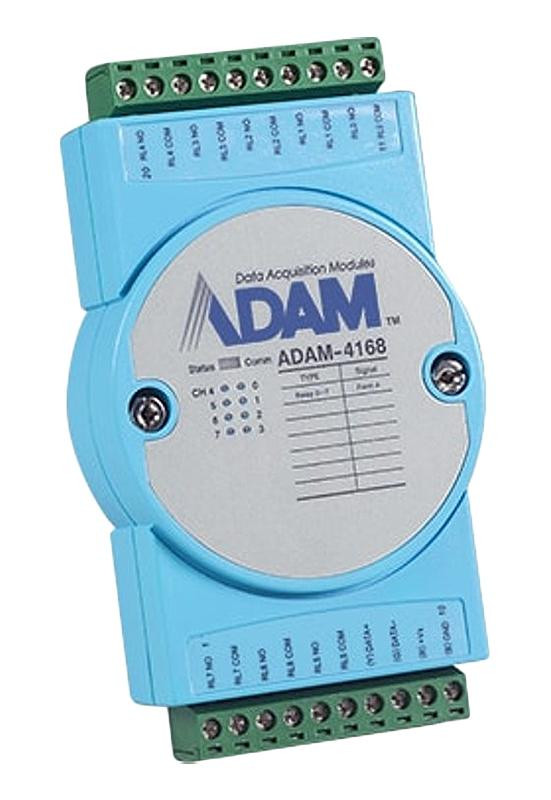

Remote I/O Module, 8-Channel Relay Output Module with Modbus, ADAM-4000 Series
- Weight:
- 0.75 LBS
- Minimum Purchase:
- 1 unit
Description
Advantech was founded in 1983 by three ex-Hewlett Packard engineers and released the first industrial PC (IPC-600) in 1990.
Features Include:
- 8-ch Relay Output Module with Modbus
- Connectors: 2 x plug-in terminal blocks (#14 ~ 22 AWG)
- Power Input Unregulated: 10 ~ 30 VDC
- Power Consumption: 1 W @ 24 V DC typ., 1.7 W @ 24 V DC max.
- Watchdog Timer: System (1.6 second) & Communication
- Supported Protocols: ASCII command and Modbus/RTU
- Breakdown Voltage: 500 VAC (50/60 Hz)
- Channels: 4 x Form A, 4 x Form C
- Contact Rating (Resistive): 0.5 A @ 120 VAC, 0.25 A @ 240 VAC, 1 A @ 30 VDC, 0.3 A @ 110 VDC
- Initial Insulation Resistance: 1 G Ω min. at 500 VDC
- Relay off Time (Typical): 4 ms
- Relay on Time (Typical): 3 ms
- Maximum Operating Speed: 50 operations/min (at related load)
Technical Information:
- Advantech ADAM-4060/4068/4069 Relay Output Modules Technical Data
- Advantech ADAM-4000 Series User Manual
- Advantech ADAM-4000 Series Access Port Instructions
- Advantech ADAM-4000 Series AIO Calibration Instructions
- Advantech ADAM-4000 Series Reconnection Instructions
- Advantech ADAM-4000 Series DO Voltage/Current Datasheet
- Advantech ADAM-4000 Series Tolerance Range Datasheet
