LS Electric
LSLV0370H100-5COND(PLUS)
VFD, 50hp, 55 Amp (55A) ND (VT) / 40hp, 43 Amp (43A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 10.8 x 17.7 x 11.2" (WHD), H110 + Series
$3,556.60
LSLV0370H100-2COFD(PLUS)
Alt: 67360014PL
$4,472.31
VFD, 50hp, 142 Amp (142A) ND (VT) / 40hp, 106 Amp (106A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 12.8 x 21.7 x 12.2" (WHD), H100 + Series
- Weight:
- 86.40 LBS
- Minimum Purchase:
- 1 unit
Description

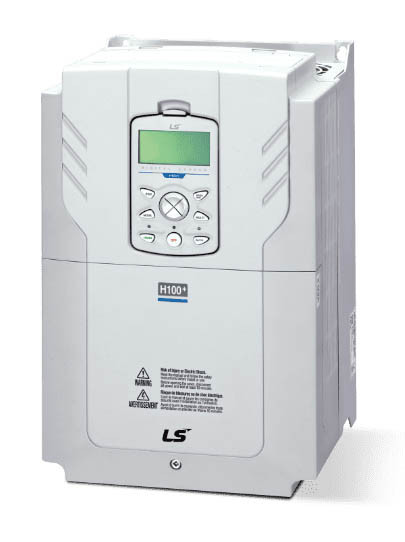

The H100+ (Plus) takes the H100 series features and adds new fan and pump control functions! This series is an eco-friendly and energy saving solution for your fan and pump systems.
This series is available in 240V/3 phase from 1hp to 25hp as well as 480V/3 phase from 1hp to 80hp.
The H100+ series has all of the existing features of the H100 series PLUS:
- No-flow control
- Flow monitoring
- PI auxiliary (suction/level/vacuum) control
- Over-cycling protection
- Differential level detection
- Low/high feedback detection
- Setpoint timeout
- Current limit
- Thrust bearing control
- Pump minimum speed
- Improved Hand-Off-Auto keypad
- Power-On run for keypad command
- Lead-lag
- Enhanced PID performance
- Simplify PID group
- Various sleep mode and method
- Selectable wake-up method (absolute, deviation)
- Wake-up disable mode
- Backspin timer
- Single phase protection - UL tested and approved for use on single phase power
- Dual rating - can be used for normal or heavy duty applications
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
LS Electric
LSLV0900H100-2COFD(PLUS)
VFD, 125hp, 325 Amp (325A) ND (VT) / 100hp, 255 Amp (255A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 15 x 27.8 x 15.6" (HWD), H100 + Series
$7,855.81
LS Electric
LSLV0450H100-2COFD(PLUS)
VFD, 60hp, 169 Amp (169A) ND (VT) / 50hp, 136 Amp (136A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 12.8 x 21.7 x 12.2" (WHD), H100 + Series
$5,438.18
LS Electric
LSLV0750H100-2COFD(PLUS)
VFD, 100hp, 264 Amp (264A) ND (VT) / 75hp, 195 Amp (195A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 11.8 x 27.8 x 15.2" (WHD), H100 + Series
$7,612.88
LS Electric
LSLV0550H100-2COFD(PLUS)
VFD, 75hp, 223 Amp (223A) ND (VT) / 60hp, 169 Amp (169A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 11.8 x 27.8 x 15.2" (WHD, H100 + Series
$6,767.00
LS Electric
LSLV0370H100-4COND(PLUS)
VFD, 50hp, 37kW, 380-480VAC, 3 Phase, 75A, LCD Keypad, UL Open, Built-in DC Reactor, 10.83 x 17.72 x 11.18", H100+ Series, This is the Latest Version of LSLV0370H100-4COND, 6731001200
$3,233.27
LS Electric
LSLV0370H100-4COFD(PLUS)
VFD, 50hp, 37kW, 380-480VAC, Three Phase, 75A, LCD Keypad, UL Open, Built-in EMC Filter, Built-in DC Reactor, 10.83 x 17.72 x 11.18", H100+ Series, This is the Latest Version of LSLV0370H100-4COFD, 6731003600
$3,288.65
LS Electric
LSLV0370H100-4COND
VFD, 50hp, 37kW, 380-480VAC, 3 Phase, 75A, LCD Keypad, UL Open, Built-in DC Reactor, 10.83 x 17.72 x 11.18"
$3,233.27
LS Electric
LSLV0370H100-4COFD
VFD, 50hp, 37kW, 380-480VAC, Three Phase, 75A, LCD Keypad, UL Open, Built-in EMC Filter, Built-in DC Reactor, 10.83 x 17.72 x 11.18"
$3,288.65
