LS Electric
LSLV0300SP100-2CEND
VFD, 40hp, 110 Amp (110A) ND (VT) / 30hp, 81 Amp (81A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
$6,525.00
LSLV0300SP100-4CEFD
Alt: 6737003600
$4,275.00

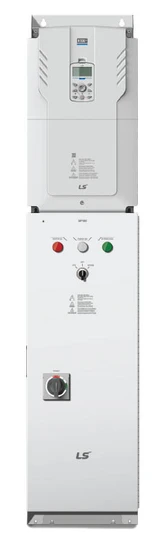

VFD, 40hp, 61 Amp (61A) ND (VT) / 30hp, 41 Amp (41A) HD (CT), Built-in DC Reactor, Built-in EMC Filter, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 3: 9.83 x 51.65 x 11.33" (WHD), SP100 Bypass
- Weight:
- 97.00 LBS
- Minimum Purchase:
- 1 unit
Description
The LS SP100 Bypass was designed for HVAC applications!
Available in 200V/3 phase input from 7.5 to 40hp and in 400V/3 phase in put from 7.5 to 75hp.
Features of the SP100 series:
- 3 contactor bypass
- HAND/OFF/AUTO LCD keypad
- Compact, NEMA 1
- Built-in DC reactor standard
- Easy wiring and installation
- Auto bypass function
- Motor OL trip detection
- Built-in Modbus RTU, BACnet, MS/TP
- KEB, Kinetic Energy Buffering
- Built-in five relay outputs
- Dualport Ethernet/IP, Modbus TCP, BACnet/IP, Lonworks (optional)
This is the ideal VFD packaged solution for variable torque fan and pump applications!
Specifications
Alternate Part Number
6737003600
Product Data Sheet
LS Electric 6737003600 Datasheet
Series
SP100 Bypass Series
Full Catalog
LS Electric LV Drive Series Catalog
Brochure
LS Electric SP100-H100 Brochure
Additional Documents
LS Electric SP100 User Manual
Warranty
2 Years
Drives - Type of Drive
Fan and Pump/HVAC
Output
3 Phase Output
Horsepower
40 hp
Input Voltage
400-480V, 3 Phase
Weight
97
Housing/Enclosure
NEMA 1
Outdoor Rated
No
