LSLV0300SP100-2CEND
Alt: 6736002500
$6,525.00

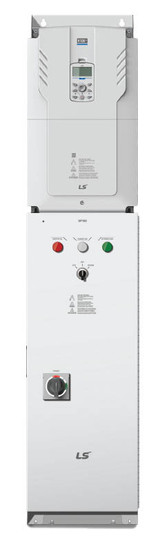

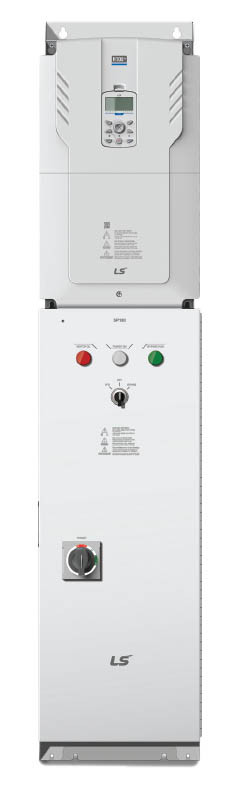

VFD, 40hp, 110 Amp (110A) ND (VT) / 30hp, 81 Amp (81A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
- Weight:
- 180.77 LBS
- Minimum Purchase:
- 1 unit
Description
The LS SP100 Bypass was designed for HVAC applications!
Available in 200V/3 phase input from 7.5 to 40hp and in 400V/3 phase in put from 7.5 to 75hp.
Features of the SP100 series:
- 3 contactor bypass
- HAND/OFF/AUTO LCD keypad
- Compact, NEMA 1
- Built-in DC reactor standard
- Easy wiring and installation
- Auto bypass function
- Motor OL trip detection
- Built-in Modbus RTU, BACnet, MS/TP
- KEB, Kinetic Energy Buffering
- Built-in five relay outputs
- Dualport Ethernet/IP, Modbus TCP, BACnet/IP, Lonworks (optional)
This is the ideal VFD packaged solution for variable torque fan and pump applications!
Specifications
Alternate Part Number
6736002500
Full Catalog
LS Electric LV Drive Series Catalog
Series
SP100 Bypass Series
Additional Documents
LS Electric SP100 User Manual
Product Data Sheet
LS Electric 6736002500 Datasheet
Brochure
LS Electric SP100-H100 Brochure
Warranty
2 Years
Outdoor Rated
No
Output
3 Phase Output
Horsepower
40 hp
Weight
180.77
Input Voltage
200-240V, 3 Phase
Housing/Enclosure
NEMA 1
Drives - Type of Drive
Fan and Pump/HVAC
