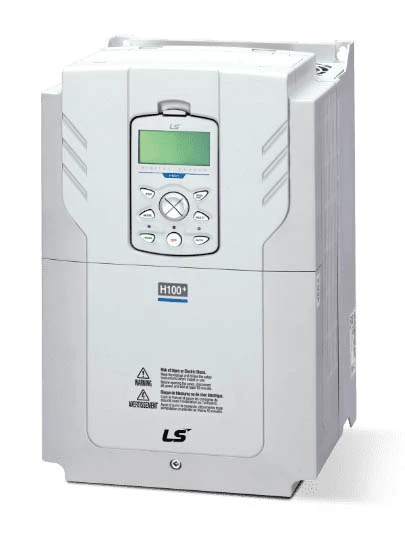

LSLV0220H100-5CEND(PLUS)
LS Electric

LSLV0220H100-5CEND(PLUS)

Alt: 67320010PL

$2,200.26

VFD, 30hp, 34 Amp (34A) ND (VT) / 25hp, 27 Amp (27A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 8.7 x 21.7 x 8.8" (WHD), H100 + Series

Weight:
31.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Minimal setup and no extra equipment is required to have outstanding pump control with this drive!
Description

The H100+ (Plus) takes the H100 series features and adds new fan and pump control functions! This series is an eco-friendly and energy saving solution for your fan and pump systems.

This series is available in 240V/3 phase from 1hp to 25hp as well as 480V/3 phase from 1hp to 80hp.

The H100+ series has all of the existing features of the H100 series PLUS:

  • No-flow control
  • Flow monitoring
  • PI auxiliary (suction/level/vacuum) control
  • Over-cycling protection
  • Differential level detection
  • Low/high feedback detection
  • Setpoint timeout
  • Current limit
  • Thrust bearing control
  • Pump minimum speed
  • Improved Hand-Off-Auto keypad
  • Power-On run for keypad command
  • Lead-lag
  • Enhanced PID performance
  • Simplify PID group
  • Various sleep mode and method
  • Selectable wake-up method (absolute, deviation)
  • Wake-up disable mode
  • Backspin timer
  • Single phase protection - UL tested and approved for use on single phase power
  • Dual rating - can be used for normal or heavy duty applications
