LS Electric
LSLV0055SP100-2CEND
VFD, 7.5hp, 22 Amp (22A) ND (VT) / 5hp, 17 Amp (17A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 1: 6.65 x 36.51 x 8.55" (WHD), SP100 Bypass
$2,175.00
LSLV0150SP100-2CEND
Alt: 6736002200
$3,225.00
VFD, 20hp, 56 Amp (56A) ND (VT) / 15hp, 46 Amp (46A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 2: 8.26 x 46.41 x 10.27" (WHD), SP100 Bypass
- Weight:
- 81.57 LBS
- Minimum Purchase:
- 1 unit
Description

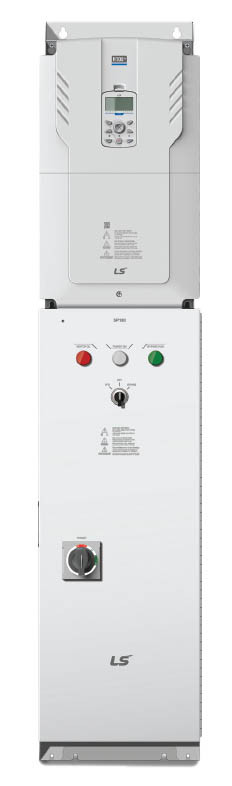

The LS SP100 Bypass was designed for HVAC applications!
Available in 200V/3 phase input from 7.5 to 40hp and in 400V/3 phase in put from 7.5 to 75hp.
Features of the SP100 series:
- 3 contactor bypass
- HAND/OFF/AUTO LCD keypad
- Compact, NEMA 1
- Built-in DC reactor standard
- Easy wiring and installation
- Auto bypass function
- Motor OL trip detection
- Built-in Modbus RTU, BACnet, MS/TP
- KEB, Kinetic Energy Buffering
- Built-in five relay outputs
- Dualport Ethernet/IP, Modbus TCP, BACnet/IP, Lonworks (optional)
This is the ideal VFD packaged solution for variable torque fan and pump applications!
