LS Electric
LSLV0150SP100-2CEND
VFD, 20hp, 56 Amp (56A) ND (VT) / 15hp, 46 Amp (46A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 2: 8.26 x 46.41 x 10.27" (WHD), SP100 Bypass
$3,225.00
LSLV0055SP100-2CEND
Alt: 6736001900
$2,175.00

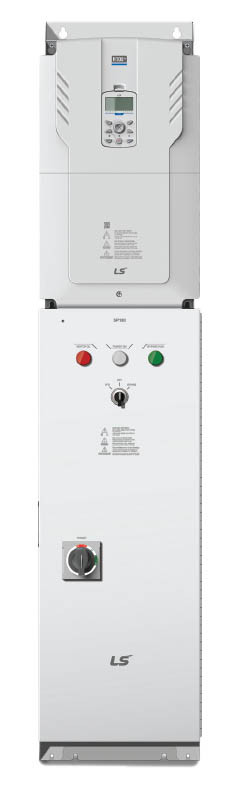

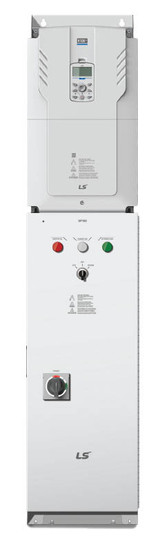

VFD, 7.5hp, 22 Amp (22A) ND (VT) / 5hp, 17 Amp (17A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 1: 6.65 x 36.51 x 8.55" (WHD), SP100 Bypass
- Weight:
- 37.48 LBS
- Minimum Purchase:
- 1 unit
Description
The LS SP100 Bypass was designed for HVAC applications!
Available in 200V/3 phase input from 7.5 to 40hp and in 400V/3 phase in put from 7.5 to 75hp.
Features of the SP100 series:
- 3 contactor bypass
- HAND/OFF/AUTO LCD keypad
- Compact, NEMA 1
- Built-in DC reactor standard
- Easy wiring and installation
- Auto bypass function
- Motor OL trip detection
- Built-in Modbus RTU, BACnet, MS/TP
- KEB, Kinetic Energy Buffering
- Built-in five relay outputs
- Dualport Ethernet/IP, Modbus TCP, BACnet/IP, Lonworks (optional)
This is the ideal VFD packaged solution for variable torque fan and pump applications!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
LS Electric
LSLV0075SP100-2CEND
VFD, 10hp, 30 Amp (30A) ND (VT) / 7.5hp, 24 Amp (24A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 1: 6.65 x 36.51 x 8.55" (WHD), SP100 Bypass
$2,400.00
LS Electric
LSLV0185SP100-2CEND
VFD, 25hp, 69 Amp (69A) ND (VT) / 20hp, 60 Amp (60A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 3: 9.83 x 51.65 x 11.33" (WHD), SP100 Bypass
$4,275.00
LS Electric
LSLV0110SP100-2CEND
VFD, 15hp, 42 Amp (42A) ND (VT) / 10hp, 32 Amp (32A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 2: 8.26 x 46.41 x 10.27" (WHD), SP100 Bypass
$2,775.00
LS Electric
LSLV0055SP100-4CEFD
VFD, 7.5hp, 12 Amp (12A) ND (VT) / 5hp, 8 Amp (8A) HD (CT), Built-in DC Reactor, Built-in EMC Filter, 480V, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 1: 6.65 x 36.51 x 8.55" (WHD), SP100 Bypass
$1,912.50
LS Electric
LSLV0300SP100-2CEND
VFD, 40hp, 110 Amp (110A) ND (VT) / 30hp, 81 Amp (81A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
$6,525.00
LS Electric
LSLV0220SP100-2CEND
VFD, 30hp, 82 Amp (82A) ND (VT) / 25hp, 68 Amp (68A) HD (CT), Built-in DC Reactor, 200-240VAC, Three Phase, LCD Keypad, NEMA 1 Enclosure, Frame 4: 13.27 x 57.48 x 13.53" (WHD), SP100 Bypass
$5,700.00
