LS Electric
LSLV0055H100-4COFN(PLUS)

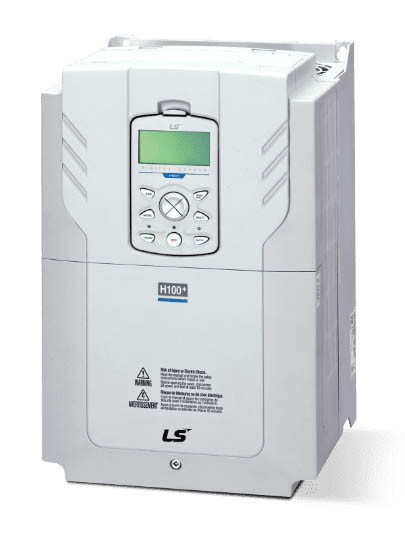

VFD, 7.5hp, 380-480VAC, 3 Phase, 12A, EMC Filter, 6.3 x 9.13 x 7.13", Includes LCD Keypad, H100+ Series, This is the Latest Version of LSLV0055H100-4COFN, 6731002900
$763.98
LSLV0055H100-5CEND(PLUS)
Alt: 67320005PL
$1,145.97
VFD, 7.5hp, 9 Amp (9A) ND (VT) / 5hp, 6.6 Amp (6.6A) HD (CT), 200-240VAC, Three Phase, LCD Keypad, IP20, 7.1 x 18.9 x 8.1" (WHD), H100 + Series
- Weight:
- 20.90 LBS
- Minimum Purchase:
- 1 unit
Description
The H100+ (Plus) takes the H100 series features and adds new fan and pump control functions! This series is an eco-friendly and energy saving solution for your fan and pump systems.
This series is available in 240V/3 phase from 1hp to 25hp as well as 480V/3 phase from 1hp to 80hp.
The H100+ series has all of the existing features of the H100 series PLUS:
- No-flow control
- Flow monitoring
- PI auxiliary (suction/level/vacuum) control
- Over-cycling protection
- Differential level detection
- Low/high feedback detection
- Setpoint timeout
- Current limit
- Thrust bearing control
- Pump minimum speed
- Improved Hand-Off-Auto keypad
- Power-On run for keypad command
- Lead-lag
- Enhanced PID performance
- Simplify PID group
- Various sleep mode and method
- Selectable wake-up method (absolute, deviation)
- Wake-up disable mode
- Backspin timer
- Single phase protection - UL tested and approved for use on single phase power
- Dual rating - can be used for normal or heavy duty applications
