SV0075IS7-4NOFD
Alt: 6121000600
$1,497.47
VFD, 10hp, 380-480VAC, 3 Phase, 16A, 7.9x14x8.9, No Keypad, DC Reactor, EMC Filter
- Weight:
- 22.05 LBS
- Minimum Purchase:
- 1 unit
Description

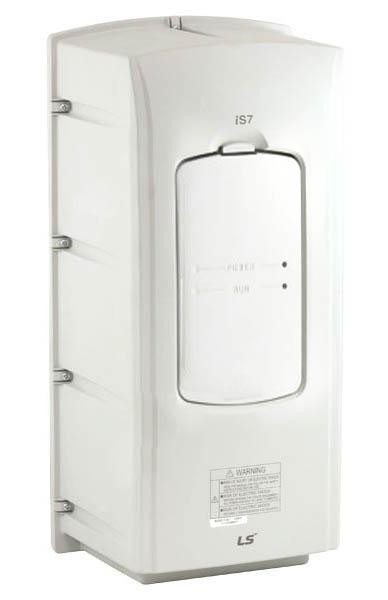

Our LSIS iS7 series is high performance sensorless vector drive that offers optional closed loop control, PLC capability and pump jack control. A NEMA 12 version is also available up to 30 hp.
Available in 230V, 3 phase from 1 to 100 horsepower or 480V, 3 phase from 1 to 500 horsepower.
There are three option slots available:
- Option 1: Fieldbus (Ethernet IP/Modbus TCP, Profibus DP, DeviceNet, CANopen, LonWorks)
- Option 2: Extension (PLC, extension IO, synchronous, safety)
- Option 3: Encoder (encoder, 24V encoder, position control)
Series Features Include:
- Control mode: V/F, V/F PG, Sensorless Vector, Vector
- Standard Protection Rating: IP21, optional IP54 enclosure (~ 22kW)
- Speed Control Range 1:100(Sensorless Vector), 1:1000(Vector)
- LV Trip Delay Function, Cooling Fan Control
- Droop Control, KEB Function, Flying Start, Flux Brake
- PMSM Control
- Built-in RS485 & Modbus Communication
- Profibus-DP, DeviceNet, LonWorks, Rnet, Modbus TCP Option
- Max. Input 11 Points, Output 6 Points when use expended I/O Card
- PLC Card option: Master-K platform Normal Input 14 Points, Normal Output 7 points
- Encoder Card option
- Built-in EMC filter to protect from excessive electronic distortion
- DC reactor built-in for harmonic reduction and power factor improvement
Technical Information:
- LS Electric iS7 Series High Performance Standard AC Drive Flyer
- LS Electric iS7 Series High Performance Standard AC Drive Catalog
- LS Electric iS7 Series Quick Start Reference
- LS Electric iS7 Series High Performance Standard AC Drive User Manual
- LS Electric iS7 Series Web Control Manual
- LS Electric iS7 Series Troubleshooting Manual
- LS Electric VFD Quick Start Guide
- LS Electric Low-Voltage Drive Solution Catalog
- LS Electric Smart Factory Automation Solutions Brochure
Options Technical Information:
- LS Electric SV-iS7 Series Encoder Setup Guide
- LS Electric SV-iS7 Series NEMA4X/IP66 Keypad Mount Option User Manual
- LS Electric SV-iS7 Series LonWorks Option User Manual
- LS Electric SV-iS7 Series CANopen Option User Manual
- LS Electric SV-iS7 Series CC-Link/IE Option User Manual
- LS Electric SV-iS7 Series CC-Link User Manual
- LS Electric SV-iS7 Series DeviceNet Option User Manual
- LS Electric SV-iS7 Series Ethernet Option User Manual
- LS Electric SV-iS7 Series Drive Copy Unit Option Module User Manual
- LS Electric SV-iS7 Series Expansion IO Module User Guide
- LS Electric SV-iS7 Series Firmware Flash Procedure User Guide
- LS Electric SV-iS7 Series Flange Option User Manual
- LS Electric SV-iS7 Series Modbus TCP Option Board User Manual
- LS Electric SV-iS7 Series PLC Option User Manual
- LS Electric SV-iS7 Series Profibus Option Board User Manual
- LS Electric SV-iS7 Series PROFInet User Manual
- LS Electric SV-iS7 Series Pulse Encoder Interface Module User Manual
- LS Electric SV-iS7 Series Pulse RAPIEnet User Manual
- LS Electric SV-iS7 Series Rnet/Fnet Option User Manual
- LS Electric SV-iS7 Series Synchro Option Module User Manual
- LS Electric SV-iS7 Series Z-Pulse Encoder Option Module User Manual
- LS Electric iS7/S100/H100 Series User Group and Locked Parameters Setup
- LS Electric iS7/C100/S100/H100 Series Analog Input Wiring Guide
- LS Electric Dynamic Braking Resistor Flyer
- LS Electric Dynamic Braking Resistor User Manual
Application Notes:
- LS Electric SV-iS7 Series Bolt Former Application Notes
- LS Electric SV-iS7 Series Car Parking Systems Application Notes
- LS Electric SV-iS7 Series Compressor Solution Application Notes
- LS Electric SV-iS7 Series Drop Lift Application Notes
- LS Electric SV-iS7 Series Pallet Truck Application Notes
- LS Electric SV-iS7 Series Paper Mill Application Notes
- LS Electric SV-iS7 Series Press Application Notes
- LS Electric SV-iS7 Series Rod Pump Solution Application Notes
- LS Electric SV-iS7 Series Rotary Press Machine Application Notes
- LS Electric SV-iS7 Series Theater System Application Notes
