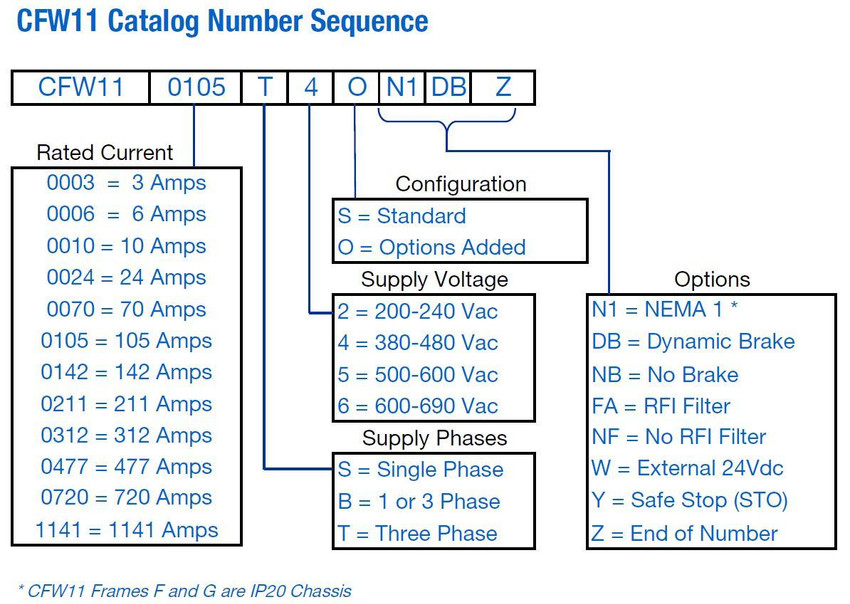

CFW110024T2O55DSZ

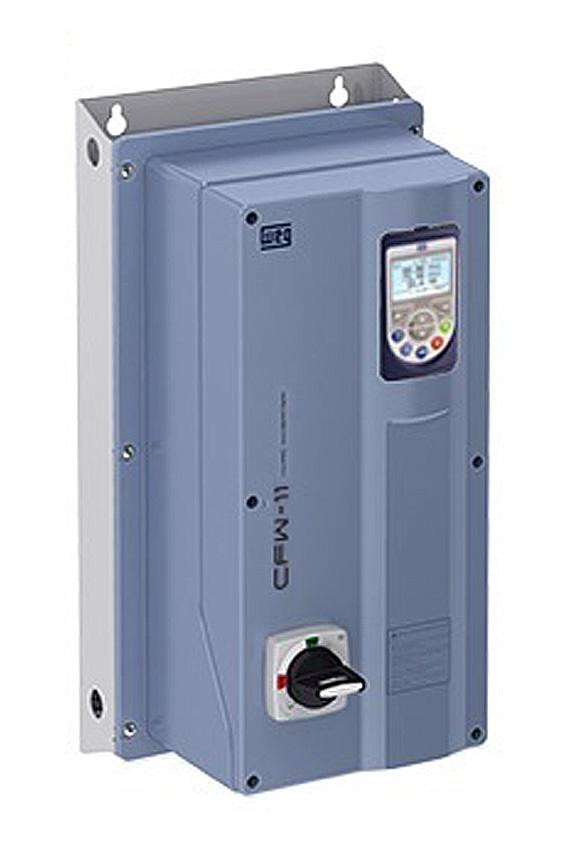

The popular WEG CFW series is now available in a NEMA 12 and IP55 rated package.

The NEMA 12 packaging enables installation right int oharsh, dusty environments without needing an electrical enclosure.

This package is available from stock with a non-fused lockable disconnect as standard. This allows you to safely disconnect a motor when maintenance is required.

Notes for the CFW series:

• CT= Constant Torque, 150% overload/60 seconds
• VT= Variable Torque, 110% overload/60 seconds
• HP rating is based on 'average FLA values', please use as a guide only
• Motor FLA may vary with speed and manufacturers
• All CFW11 IP55/NEMA 12 drives have maximum 40°C ambient temperature without derating

Pump Genius (WEG drives with suffix -PGS):

• Pump Genius can be applied to any pump system that requires constant flow or pressure control.
• Reduce System Component Cost
• Improve System Reliability
• Reduce Maintenance Costs
• Eliminate Costly Control Panels
• Reduce System Energy Requirements
• Reduce Overall Installation Costs

Features Include:

• Built-in inductors on the DC Link
• Space saving in the panel
• Built-in USB port
• Inverter smart cooling system
• Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
• Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
• High precision and reliability in speed and torque control
• Robust hardware

Applications Include:

• Multi Pump Control
• Pumps
• Fans
• Exhausts
• Compressors
• Paper and Cellulose / Wood
• Cement and Mining
• Oil and Gas
• Iron Works and Metallurgy
• Elevation
• Refrigeration
• Sugar and Alcohol
• Process Machine
