CFW110003T4O55DSZ
Alt: 13957487
$1,198.72
VFD, 3.6/3.5 Amp ND/HD, 460VAC, NEMA 12, IP55 Enclosure, Three Phase, Dynamic Braking, NO RFI Filter, with Disconnect Switch, 20.8 x 10.7 x 11"
- Weight:
- 37.50 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description

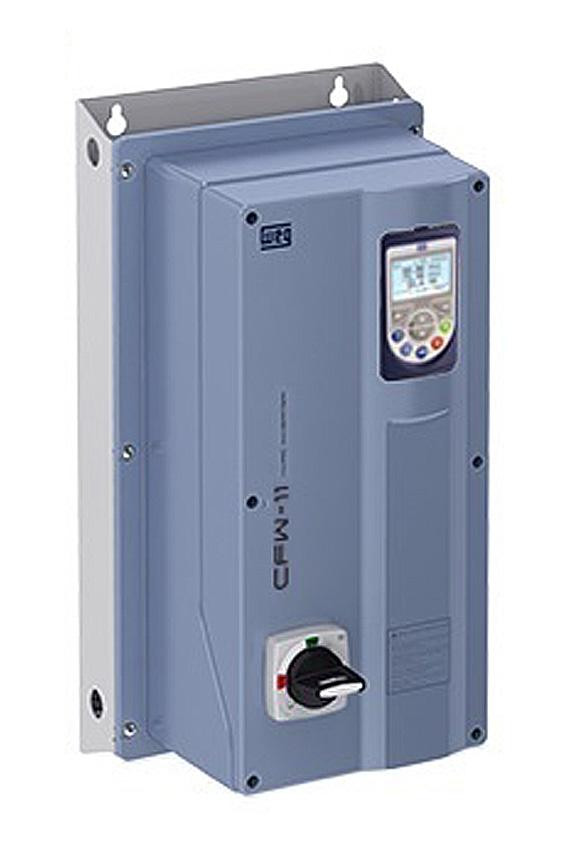

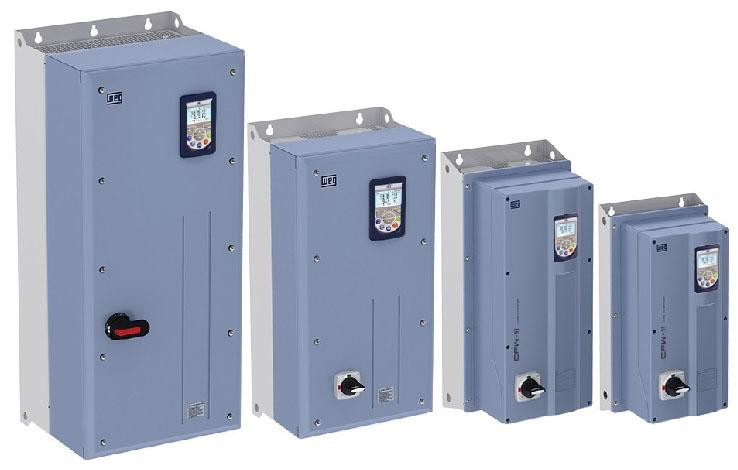

The popular WEG CFW series is now available in a NEMA 12 and IP55 rated package.
The NEMA 12 packaging enables installation right int oharsh, dusty environments without needing an electrical enclosure.
This package is available from stock with a non-fused lockable disconnect as standard. This allows you to safely disconnect a motor when maintenance is required.
Notes for the CFW series:
- CT= Constant Torque, 150% overload/60 seconds
- VT= Variable Torque, 110% overload/60 seconds
- HP rating is based on 'average FLA values', please use as a guide only
- Motor FLA may vary with speed and manufacturers
- All CFW11 IP55/NEMA 12 drives have maximum 40°C ambient temperature without derating
Specifications
Alternate Part Number
13957487
Horsepower
2 hp
Housing/Enclosure
NEMA 12 (IP55)
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
CFW11 Series
Options
Enclosed, Keypad
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
Fan and Pump/HVAC
Warranty
18 Months
Weight
37.5
Pump Genius (WEG drives with suffix -PGS):
- Pump Genius can be applied to any pump system that requires constant flow or pressure control.
- Reduce System Component Cost
- Improve System Reliability
- Reduce Maintenance Costs
- Eliminate Costly Control Panels
- Reduce System Energy Requirements
- Reduce Overall Installation Costs
Features Include:
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
Applications Include:
- Multi Pump Control
- Pumps
- Fans
- Exhausts
- Compressors
- Paper and Cellulose / Wood
- Cement and Mining
- Oil and Gas
- Iron Works and Metallurgy
- Elevation
- Refrigeration
- Sugar and Alcohol
- Process Machine
Downloads
- WEG CFW110003T4O55DSZ Datasheet
- WEG CFW11 Variable Frequency Drive Brochure
- WEG CFW11 NEMA12/IP55 Enclosure Catalog
- WEG CFW11 Frame H Variable Frequency Drive Flyer
- WEG CFW11 Variable Frequency Drive Installation Guide
- WEG CFW11 Quick Parameter Reference Manual
- WEG CFW11 Quick Parameter Reference Guide
- WEG CFW11 Pump Genius Pump Process Control Software Brochure
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
