CFW110070T2O55DSZ
Alt: 13537478
$4,442.24

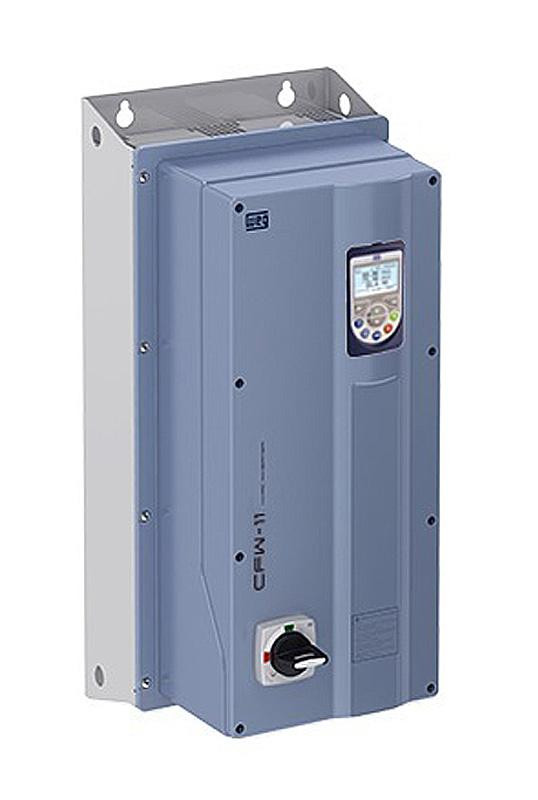

VFD, HD CT 20hp, 56A, 230VAC, NEMA 12, IP55 Enclosure, Three Phase, with Disconnect Switch, 26.4 x 12.1 x 13.7" with Dynamic Braking, (Cannot Ship UPS, Drop Ship Only via Truck)
- Weight:
- 104.30 LBS
- Minimum Purchase:
- 1 unit
Description

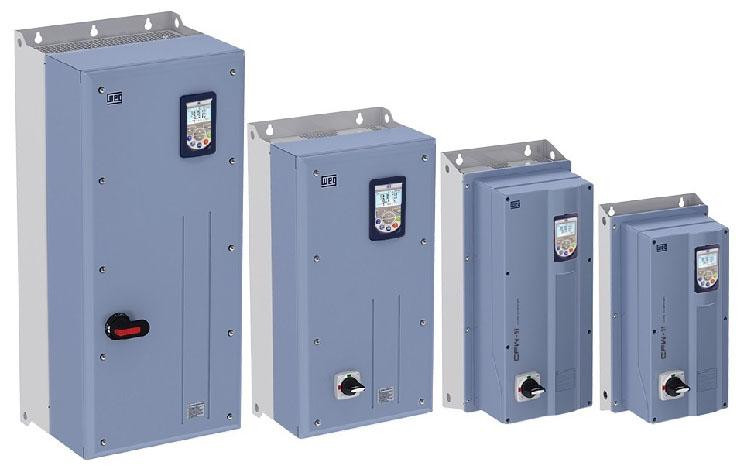

The popular WEG CFW series is now available in a NEMA 12 and IP55 rated package.
The NEMA 12 packaging enables installation right int oharsh, dusty environments without needing an electrical enclosure.
This package is available from stock with a non-fused lockable disconnect as standard. This allows you to safely disconnect a motor when maintenance is required.
Notes for the CFW series:
- CT= Constant Torque, 150% overload/60 seconds
- VT= Variable Torque, 110% overload/60 seconds
- HP rating is based on 'average FLA values', please use as a guide only
- Motor FLA may vary with speed and manufacturers
- All CFW11 IP55/NEMA 12 drives have maximum 40°C ambient temperature without derating
Pump Genius (WEG drives with suffix -PGS):
- Pump Genius can be applied to any pump system that requires constant flow or pressure control.
- Reduce System Component Cost
- Improve System Reliability
- Reduce Maintenance Costs
- Eliminate Costly Control Panels
- Reduce System Energy Requirements
- Reduce Overall Installation Costs
Features Include:
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
Applications Include:
- Multi Pump Control
- Pumps
- Fans
- Exhausts
- Compressors
- Paper and Cellulose / Wood
- Cement and Mining
- Oil and Gas
- Iron Works and Metallurgy
- Elevation
- Refrigeration
- Sugar and Alcohol
- Process Machine
Technical Information:
- WEG CFW110070T2O55DSZ Datasheet
- WEG CFW11 Variable Frequency Drive Brochure
- WEG CFW11 NEMA12/IP55 Enclosure Catalog
- WEG CFW11 Frame H Variable Frequency Drive Flyer
- WEG CFW11 Variable Frequency Drive Installation Guide
- WEG CFW11 Quick Parameter Reference Manual
- WEG CFW11 Quick Parameter Reference Guide
- WEG CFW11 Pump Genius Pump Process Control Software Brochure
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
Options Technical Information:
- WEG CFW-11 HMI-01 Installation Manual
- WEG CFW-11 RHMIF-01 Installation Manual
- WEG CFW-11 SoftPLC User's Manual
- WEG CFW-11 Expansion Modules RS-232/RS-485/CAN/PROFIBUS DP/EtherCAT Installation and Configuration Manual
- WEG CFW-11 RS-232 / RS-485 Communication Manual
- WEG CFW-11 MMF-03-PM-1 Memory Module Installation and Operation Guide
- WEG CFW-11 MMF-03-SP Memory Module Installation and Operation Guide
- WEG CFW-11 DeviceNet Communication Manual
- WEG CFW-11 ENC1 and ENC2 Board Installation and Configuration Manual
- WEG CFW-11 BACnet User's Manual
- WEG CFW-11 BACnet Firmware Update Guide
- WEG CFW-11 CANopen Communication Manual
- WEG CFW-11 CPCS-X and PCSX-01 Kits Installation Guide
- WEG CFW-11 WSCAN Software User's Manual
- WEG CFW-11 WLP Software User's Manual
- WEG External Power Supply for Control in 24 V-KVDC-CFW11-1 Installation Guide
- WEG CFW-11 Guide for Recommended Fuses
Application Notes and White Papers:
Want to learn more?
- WEG Electric CWF11 Video Guides
- Weg Variable Frequency Drives
- Why is WEG Pump Genius Software desired?
- VFD Temperature Guide
- What VFD should I use with my pump?
- A Simple Explanation: The Difference Between a Soft Starter and a Variable Frequency Drive
- What does VFD really mean?
- I know I need a VFD, but which manufacturer is best?
