CFW500B10P0T4DB20G2

Alt: 15575699, Replaces CFW500B10P0T4DB20 (11895185)

$617.99

VFD, 7.5hp, 380-480VAC, 10A, 3 Phase, with Brake, IP20, Generation-2, B Frame, 7.9 x 4.0 x 6.3" HWD, Optional NEMA 1 Kit CFW500-KN1B Available to Order Separately

Weight:
2.60 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Update August 2022:

Due to a component issue, the G2 series will have immediate changes. The changes below are expected to remain until mid-2023, at that point all models are expected to be available as G2 again.

  • IP20 versions, Frame size A through E will only be available as the previous version (G1)
  • IP20 versions, Frame size F and G will remain available as the current G2 model
  • IP66/NEMA 4 versions, Frame size A and B will remain available as the current G2 model

Below you will find the features that the G2 offered that the G1 does NOT have:

  • Features the G1 series does not offer (that were features of G2):
  • STO (Safe Torque Off) - CFW500-SFY2
  • Remote Advanced Text Keypad (HMI-01)
  • BACnet Communications
  • ND/HD ratings for frame E
  • Pump Genius- Multiplex
  • Field upgradable FM using WMS
  • WPS compatibility
  • VFD parameters copy/paste using advanced text keypad (HMI-01)
  • VFD paramenters copy/paste using I/O module
  • SoftPLC program stored in control board

We apologize for any inconvenience this has caused, there was very little notice given by the end supplier of the component.

CFW500 Series:

Looking for any easy-to-use drive that has the flexibility your application needs?

The CFW500 has easy to configure advanced technology options, developed for fast commissioning while offering excellent performance and reliability. Designed for exclusively industrial or professional use, is perfect for OEM, system integrators, panel installers and End Users providing great benefit from the added value. A wide range of plug-in modules and display options, showing up to 3 customer-selected variables at the same, make the CFW500 time efficient and easy to maintain.

New 2020: Additional CFW500 models have been released! Ending in B20Y2, these models have STO function (Safe Torque Off) and SS1 (Safe Stop 1). They are extremely flexible and provide machine manufacturers a cost-effective solution to reduce risks and ensure personal and equipment protection in case of failures in machines and industrial process. The CFW500 with safety functions is certified at TÜV Rheinlad, classified as SIL 3 according to IEC 61508, IEC 62061 and IEC 61800-5-2 and fulfils requirements for safety performance level PL e (cat. 4) according to EN ISO 13849-1.

Models ending in B20Y2 features include:

  • Safety functions STO and SS1-t
  • Can be used as part of the safety solution complying cat. 4 without contactor
  • Easy installation, commissioning and maintenance
  • Due to high safety level SIL 3 / PL e, the CFW500 with safety functions may replace the use of external safety relays for cables and emergency pushbuttons monitoring

Additional Features Include:

  • Easy to configure; step by step programming
  • A wide range of plug-in modules
  • Fan is simple and fast to remove
  • NEMA 1 Standard Housing
  • Capable of 150% overload for one minute, repeatable every 6 minutes
    • Based on ambient temperature of 50°C
    • Does not require you to oversize the drive
  • Standard conformal coating, classified as 3C2 per IEC spec 60721-3-3
  • 100% tested with load at the factor under rated conditions
  • The Weg CFW500 has replaced the Weg CFW08 Plus

Horsepower

  • 7.5 HP

Rated Input Voltage

  • 380-480V±10%
  • 3-Phase

Rated Output

  • 24Vcc, 3 phase

Rated Current:

  • Normal Duty: 10 Amps
  • Heavy Duty: 10 Amps

Dimensions

  • Height: 7.8 in (199 mm)
  • Width: 3.9 in (100 mm)
  • Depth: 6.3 in (160 mm)

Weight

  • 2.6 lbs (1.2 kg)

Housing

  • IP20

Operating Temperature:

  • -10°C - +40°C

Control Method:

  • V/f (escalar) and VVW

Technical Information:

Options Technical Information:

  • WEG CFW500 KPCSF Installation, Configuration and Operation Guide

    • Application Notes and White Papers:

    Accessories
    Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
    Add Selection to Cart
    Available Now!

    Dart Controls

    SA-STOK-WO

    5K Ohm Speed Pot Kit, 8.75" Leads, Knob, & Dial, Use When You Need an Input Device to Set Speed in VFD Applications, Ideal for Panel Mounting

    $35.00

    Weg

    CFW500-CEMB-TCP

    Modbus-TCP Communication Plug-in Module, CFW500 Communication Module: Modbus TCP : 1-Modbus TCP 100BASE TX RJ-45 Port, 1-RS485, 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 24VDC for CFW500 Drives

    $268.27

    Weg

    CFW500-CEPN-IO

    PROFINET IO Communication Plug-in Module, CFW500 Communication Module: ProfiNet I/O : 1-ProfiNet I/O 100BASE TX RJ-45 Port, 1-RS485, 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 24VDC for CFW500 Drives

    $268.27
    Available Now!

    Weg

    CFW500-CETH-IP

    EtherNet/IP Communication Plug-in Module, CFW500 Communication Module: EtherNet IP: 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 1-RS485, 1-EtherNet IP 100BASE TX RJ-45 Port, 24VDC for CFW500 Drives

    $254.49

    Weg

    CFW500-CPDP

    Profibus-DP Communication Plug-in Module, 2 DI, 1 AI, 1 AO, 1 DOR, 1 DOT, 1 RS485, 24VDC, Communication Module

    $217.73

    Weg

    CFW500-MMF

    CFW500 Flash Memory Module for Saving and Reloading Program and Parameters to / from the Drive for CFW500 Drives

    $101.61
    Available Now!

    Weg

    CFW500-KN1B

    NEMA 1 Conduit Kit for AC Drive Frame Size B

    $17.74

    Weg

    CFW500-CPDP2

    CFW500 Communication Module: Profibus DP & DP-V1 Module, : 1-Profibus DP & DP-V1 100BASE TX RJ-45 Port, 1-RS485, 2-DI, 1-AI, 1-AO, 1-DOR, 1-DOT, 24VDC (Terminal Block Connector) for CFW500 Drives

    $239.23

    Weg

    CFW500-CRS232

    RS232 Communication Plug-in Module, CFW500 Communication Module; RS232 Card: 1 RS232, 1 RS485, 4 DI, 1 AI, 1 AO, 1 DOR, 1 DOT, 24VDC for CFW500 Drives

    $74.19
    Available Now!

    Weg

    CFW500-CUSB

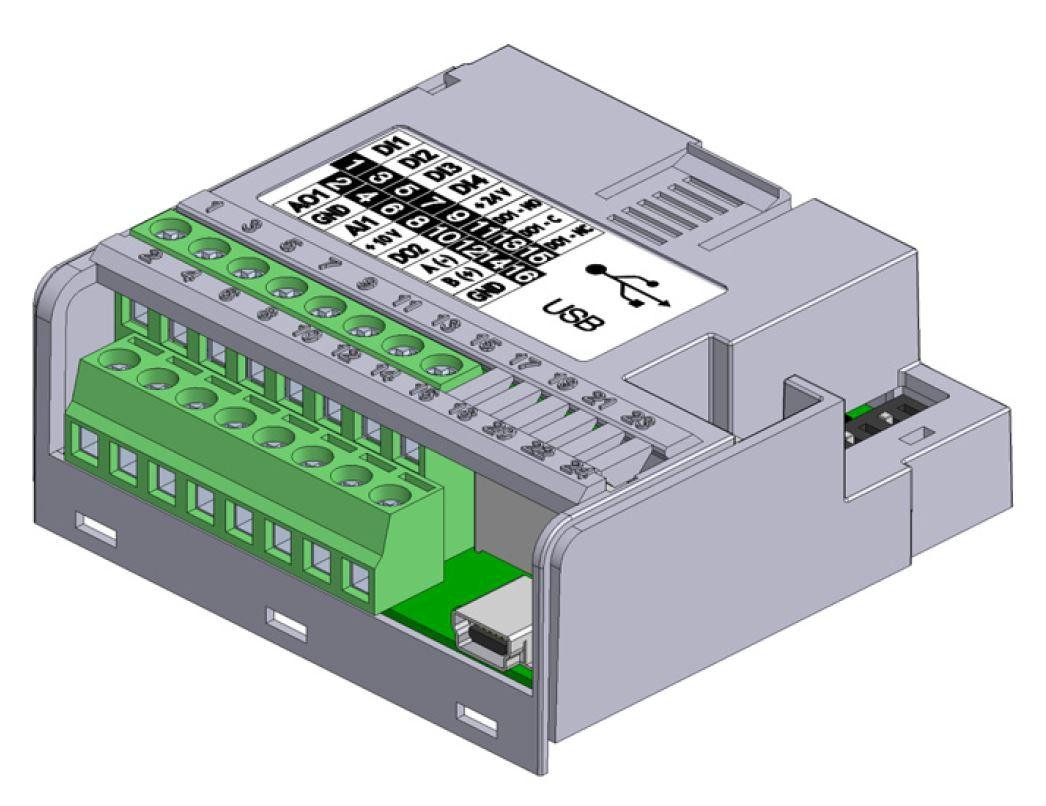

    Plug-in Module with USB Port, CFW500 Communication Module; USB Card: 1 USB, 1 RS485, 4 DI, 1 AI, 1 AO, 1 DOR, 1 DOT, 10VDC, 24VDC for CFW500 Drives
