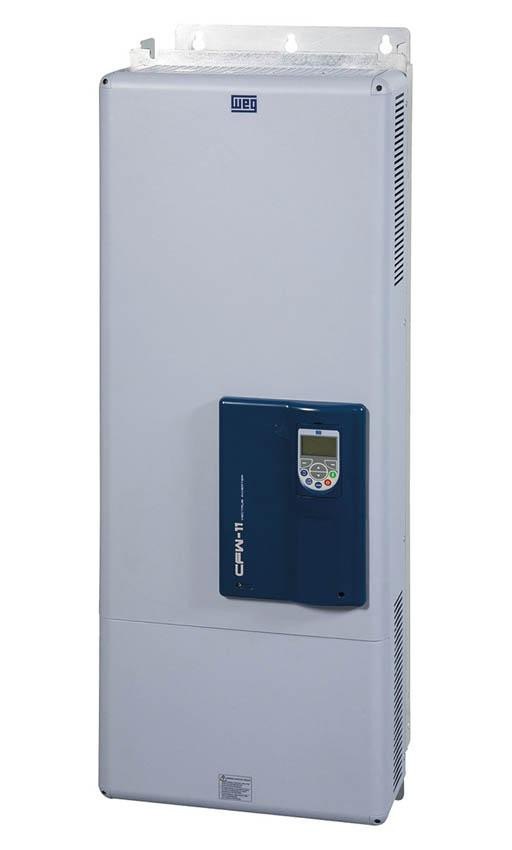

CFW110477T4SZ-PGS

Product image is representative only, please verify specifications.

Weg

CFW110477T4SZ-PGS

Alt: 14396174

$26,343.68

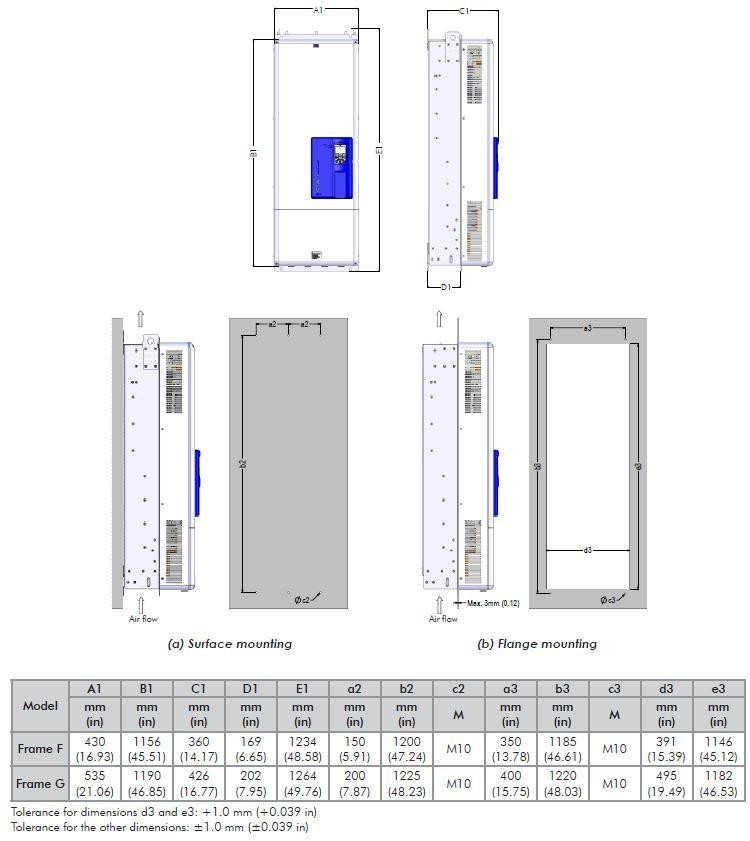

VFD, 400hp, 460V, 3 Phase, Simplex Software, NEMA 1, 48.6x16.9x14.2", Single Pump Control

Weight:
385.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added

Have you heard about our rewards program, Pack Perks? Learn all about it here!

Description

The WEG Pump Genius pump process control software (WEG drives that have the suffix -PGS) is designed to reduce system operation and maintenance costs while increasing pump process accuracy and protection. The Pump Genius software offers simplex or multiplex pump control while providing monitoring and protection for the pump system.

The CFW11 drive is available with multiple features:

  • Standard CFW11 drives will end with a Z
  • A suffix of -PGS is Pump Genius - Simplex for single pump control
  • A suffix of -PGM is is Pump Genius - Simplex for multiple pump system control
  • A suffix of -LR is a standard CFW11 drives with line reactors included

Pump Genius software works with the WEG CFW11 drive to control pump system processes. The software monitors system pressure or flow and adjusts pump speed to meet pumping requirements.

Weg's CFW11 series offers plug and play technology that will automatically recognize and configure accessories and options used, allowing for easy installation of accessories and options.

Vectrue Technology™ allows WEG inverters to combine V/F, Sensorless Vector, VVW, and vector (with encoder) control techniques - all in one product. Aimed at increasing productivity, the CFW11 offers efficiency ratings greater than 97%, as well as innovations designed to improve motor control and operational functions for applications such as Multi Pump Control, Fans, Exhausts, Compressors, Paper and Cellulose / Wood, Cement and Mining, Oil and Gas, Iron Works and Metallurgy, Refrigeration, Sugar and Alcohol Production and many more!

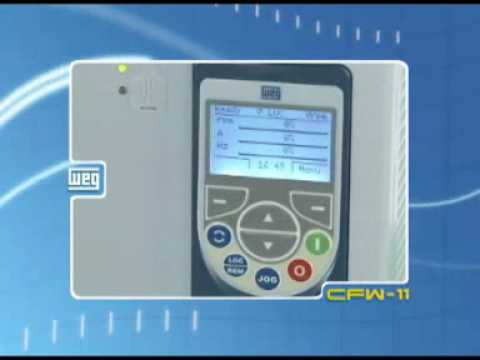

WEG's CFW11 series of variable frequency drives uses state-of-the-art technology to control motors up to 600HP with automatic control of the heatsink fan with speed sensor (additional protection) and easily detachable from the unit for cleaning and maintenance. Including Human-Machine Interface (HMI) with backlit graphic display and soft-keys, greatly facilitates inverter programming and operation.

Aimed at increasing customers productivity, the CFW11 offers the following innovations:

  • USB for microcomputer connection for using SUPERDRIVE programming and monitoring software as well as updating inverter firmware.
  • DC link inductors (symmetrically connected to positive and negative DC link terminals) enable compliance with IEC61000-3-12 standard requirements
  • Intelligent thermal management enables full protection of IGBTs, monitoring of heatsink and internal air temperature.
  • Normal Duty and Heavy Duty ratings to adapt optimally to all kinds of loads.
  • Protection with failure and alarm warnings.
  • Motor overload protection in compliance with IEC 60947-4-2/UL 508 C.
  • Memory card built into the standard product allows user to create functions without the need to use an external PLC (soft-PLC via IEC61131-3 programming software)
  • Guided start-up simplifies initial user programming.
  • TRACE / SCOPE function to assist with the start-up and system diagnostics.
  • V / F (scalar), Sensorless Vectorial control and Closed Loop Vectorial Control
  • Senusoidal PWM modulation - Space Vector Modulation
  • EMC filters (built-in)
  • Built-in Inductors in the DC link (No need input reactor)
  • SoftPLC function built-in
  • Built-in PID Controller
  • Local graphic HMI with real-time clock as standard (optional)
  • Trace Function by WEG Software
  • PLC Accessory - PLC 11-01 (Optional)
  • Flash Memory Model
  • USB Connection
  • Protection Degree IP20 as standard, IP21/NEMA1 by using accessories and IP54 as an optional up to 75kW
  • Communication protocols available: Modbus RTU (RS-232 and RS-485), CANopen, DeviceNet, Profibus DP/DPV1, Profinet, Modbus-TCP, EtherNET/IP, EtherCAT, BACnet
  • WLP and SuperDrive G2 free Softwares

Pump Genius (WEG drives with suffix -PGS):

  • Pump Genius can be applied to any pump system that requires constant flow or pressure control.
  • Reduce System Component Cost
  • Improve System Reliability
  • Reduce Maintenance Costs
  • Eliminate Costly Control Panels
  • Reduce System Energy Requirements
  • Reduce Overall Installation Costs

Features Include:

  • Built-in inductors on the DC Link
  • Space saving in the panel
  • Built-in USB port
  • Inverter smart cooling system
  • Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
  • Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
  • High precision and reliability in speed and torque control
  • Robust hardware

Applications Include:

  • Multi Pump Control
  • Pumps
  • Fans
  • Exhausts
  • Compressors
  • Paper and Cellulose / Wood
  • Cement and Mining
  • Oil and Gas
  • Iron Works and Metallurgy
  • Elevation
  • Refrigeration
  • Sugar and Alcohol
  • Process Machine

Technical Information:

Options Technical Information:

Application Notes and White Papers:
