E510-240-H3-U

The Teco Westinghouse E510 Variable Speed Drive is a versatile and compact AC Drive that can control today’s demanding motor driven applications in a cost effective manner. Ideal for fan and pump, mixing and conveyor applications as well as corrosive, dusty, humid or other dirty environments this highly flexible drive operates in severe environments and has built-in PLC functionality.

With parameters grouped by function and a built-in Modbus Protocol (RJ45 Interface) the E510 series efficiently works in many environments while still being easy to maintain and operate.

Additional Features include:

• Power Range:
  • 230V, 1Ø (0.5 to 3 HP)
  • 230V, 3Ø (1 to 15 HP)
  • 460V, 3Ø (1 to 25 HP)
• PID Process Control Loop
  • Sleep Mode
  • 0-10VDC or 4-20mA Feedback
  • Loss of feedback or tracking detection
• Built-in Modbus Protocol (RJ45 Interface)
• NEMA 4/12, Indoor Duty
• 5 Digit Operator Keypad
  • Scalable Display
  • Programming parameters
  • Diagnostics monitoring
• Built-in Disconnect and Speed Pot on selected models
  • 230V, 1Ø (0.5 to 3 HP)
  • 460V, 3Ø (1 to 15 HP)
• Digital and Analog Inputs and outputs have extremely fast (~4 msec) update time
• Auto Run Mode (cyclic operation)
• Power loss ride through
• Automatic Voltage Regulation (AVR) Stabilizes output voltage against fluctuation input voltage
• If you have an E510 drive without the –U on the end, the only difference with the –U is that they have ‘Westinghouse’ on the keypad and frame
• The E510 series is a great replacement for the Teco MA7200 series drives that were NEMA 4/12 (part numbers ended in a –N4)
• If you were using an MA7200 series that ended with –N1, we recommend looking at the Teco A510 series
• The E510 series drives are great to pair with our TECO washdown duty motors

Horsepower

• 40 HP


Rated Input Current

• 200-240VAC, 3 Phase
• 50/60Hz

Rated Output Current

• 0-240V, 3 phase
• 115 amps

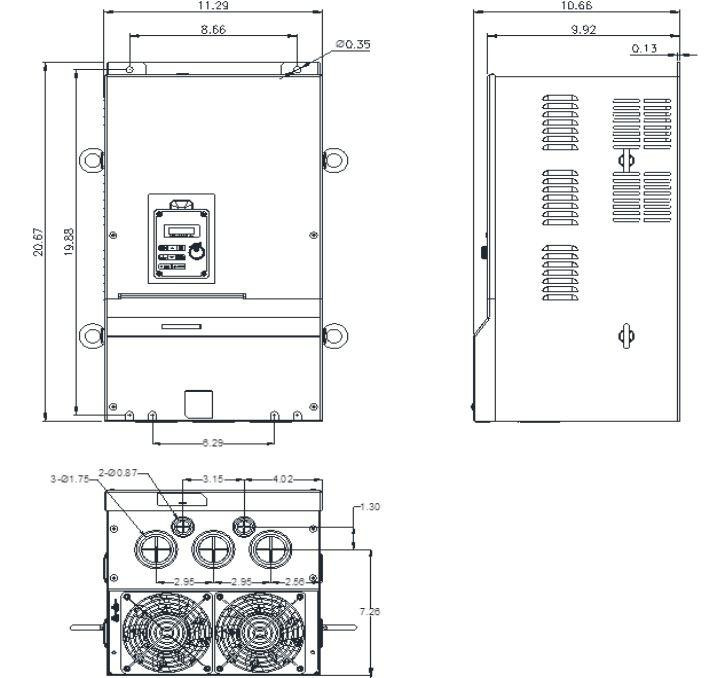

Dimensions

• Height: 20.67 in
• Width: 11.28 in
• Depth: 10.62 in

Housing

• IP20
• NEMA 1

Technical Information:

• TECO Westinghouse E510-240-H3-U Datasheet
• TECO Westinghouse E510 Series Compact Drive Flyer
• TECO Westinghouse E510 Series Technical Specification Brief
• TECO Westinghouse E510 Series Compact Drive Brochure
• TECO Westinghouse E510 NEMA 4/12 Series Compact Drive Brochure
• TECO Westinghouse E510 Series Instruction Manual
• TECO Westinghouse E510 Series Start-Up and Installation Manual
• TECO Westinghouse E510 Series Quick Start Guide

Options Technical Information:

• Teco Westinghouse E510 Series PLC Addendum
• Teco Westinghouse E510 Series Communication Addendum
• Teco Westinghouse 510 Series Braking Unit User Manual
• Teco Westinghouse 510 Series Copy Module Instruction Manual
• TECO Westinghouse Compact E510 General PID Setup Guide
