FRN0011E2S-7GB
Alt: This Product Replaced FRN003E1S-7U
$459.00
VFD, 3hp, 11 Amp (11A), 230VAC, Single Phase Input, Sensorless Vector, STO (Safe Torque Off), High Performance, 5.51 x 5.51 x 5.63" (HWD), Optional NEMA 1 Kit: NEMA1-20E2-247 Available to Order Separately, FRENIC-Ace Series
- Weight:
- 5.40 LBS
- Minimum Purchase:
- 1 unit
Description

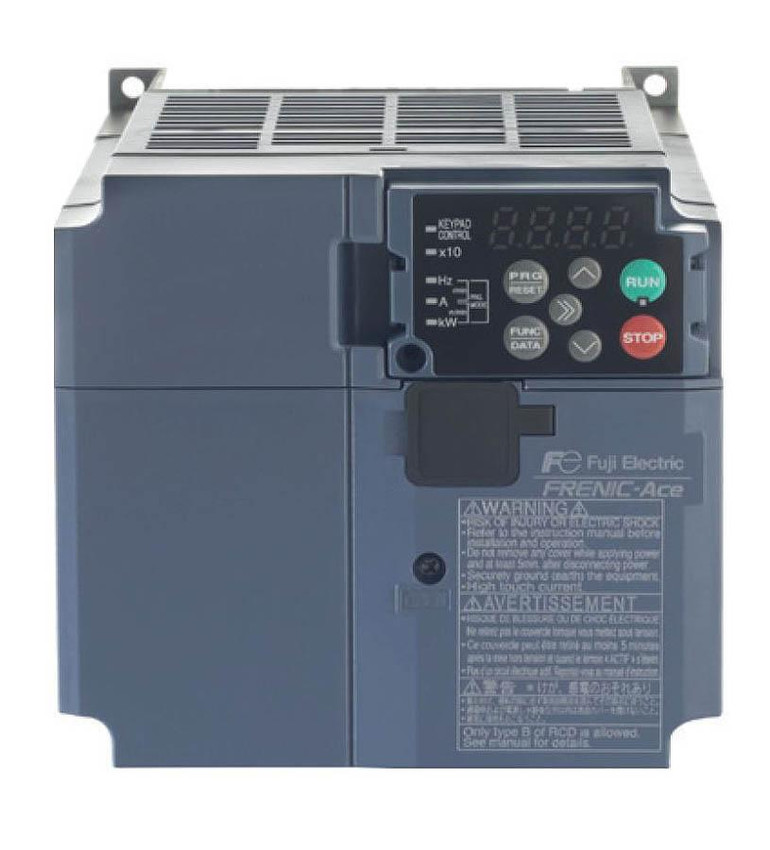

Our Fuji Electric FRENIC-Ace is loaded with features! This high performance drive has 200 steps of customizable logic and has safety torque off (STO) input.
As always, Fuji uses components with a lifespan of 10 years or more and comes with their 3-year warranty.
Currently FRENIC-Ace is stocked in the US from 1/8 to 40 horsepower. For higher horsepower please contact us and we will get delivery from the factor. Please note 50 hp and up is considered 'non-stock' by Fuji.

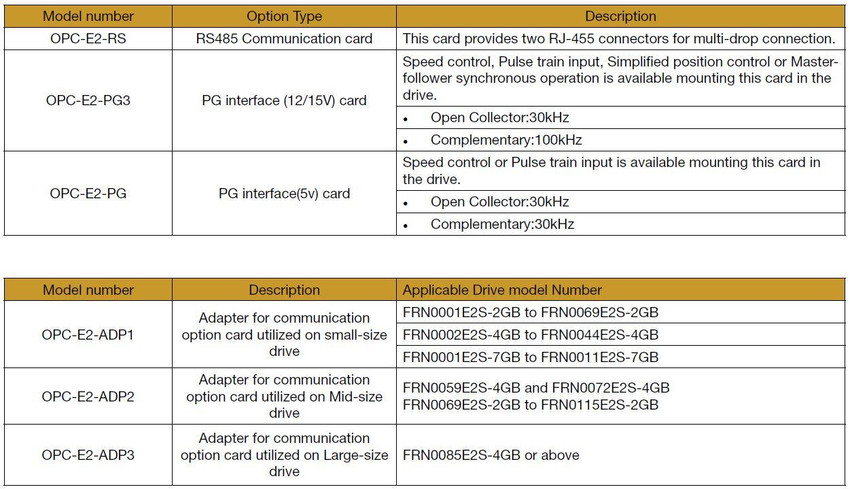

Option cards are available: OPC-XXX. It is possible to install one communication card and one terminal block option card. A mounting adapter is required to install the communication card to the converter.
This series was launched April 1, 2017.
Eventually this series will replace the FRENIC-Multi. We expect the FRENIC-Multi to be available through 2018.
Specifications
Alternate Part Number
This Product Replaced FRN003E1S-7U
Horsepower
3 hp
Housing/Enclosure
IP20 (NEMA 1 Kit Available)
Input Phase
Single Phase
Input Voltage
200-240V, Single Phase
Outdoor Rated
No
Output
3 Phase Output
Series
FRENIC-Ace
Options
Enclosed, STO (Safe Torque Off)
STO (Safe Torque Off)
Yes
Torque Load
See Spec
Drives - Type of Drive
High Performance
Warranty
3 Years
Width
5.51"
Length/Depth
5.63" D
Height
5.51"
Weight
5.4
FRENIC-Ace Series Features Include:
- Sensorless dynamic torque vector control
- Motor vector control with PG (with optional card)
- Synchronous motor with sensorless vector control
- 2-channel on-board RS485 communications port
- Standard CANopen compatibility
- Removable keypad device
- Removable control terminal block board
- IP20, NEMA 1/UL Type 1 kit optional
- UL 508C, CE, KC, UL single phase input, UL Plenums rating, RoHS
- Standard stock from 1/8 to 40 hp
- Over 50hp available, may have leadtimes
Downloads
- Fuji FRENIC-Ace High Performance Inverter Catalog
- Fuji FRENIC-Ace High Performance Inverter Datasheet
- Fuji FRENIC-Ace High Performance Inverter Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Solar Pumping Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Supplement to Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Global Model User Manual
- Fuji FRENIC-Ace High Performance Inverter Quick Reference Guide
- Fuji FRENIC-Ace Specifications for Global Model
- Fuji FRENIC-Ace Engineering Specifications
Accessories
Available Now!
Available Now!
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Dart Controls
SA-STOK-WO
5K Ohm Speed Pot Kit, 8.75" Leads, Knob, & Dial, Use When You Need an Input Device to Set Speed in VFD Applications, Ideal for Panel Mounting
$36.00
Fuji Electric

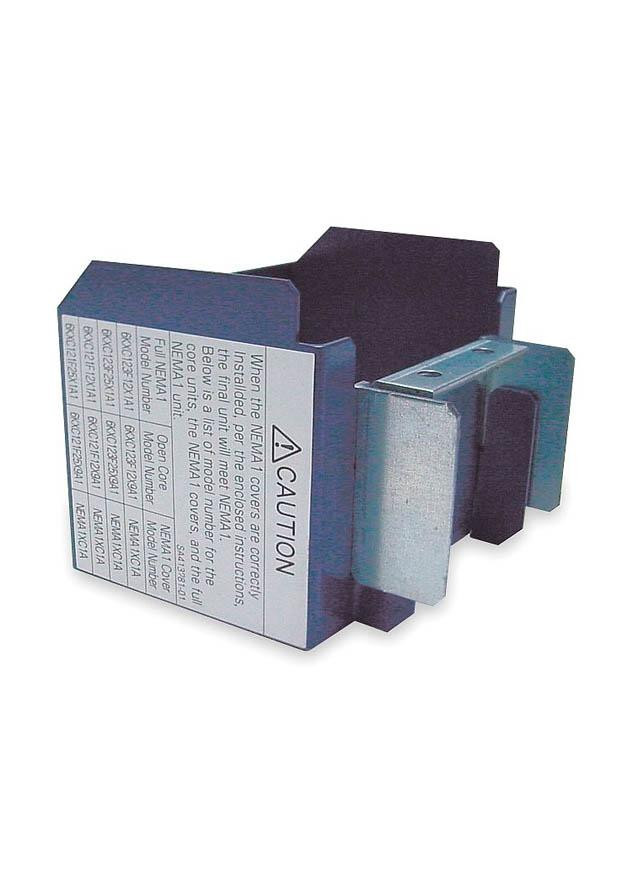

NEMA1-20E2-247
