LSLV0220H100-4COFN
Alt: 6731003400, Replaced by LSLV0220H100-4COFN(PLUS), 67310034PL, H100+ Series
$2,157.12
VFD, 30hp, 22kW, 380-480VAC, Three Phase, 45A, LCD Keypad, UL Open, Built-in EMC Filter, 8.66 x 13.78 x 8.79"
- Weight:
- 16.53 LBS
- Minimum Purchase:
- 1 unit
Description
The LSIS H100 series is a true HVAC drive. Whether you are a system designer or the end user, you will appreciate the standard configuration.
Can your current HVAC drive operate in a pollution degree 3 environment without the expense of optional conformal coating? Our H100 can.
The H100 comes with 5 relay outputs standard... eliminates the need for option cards that are sometimes required for certain installations.
Features include:
- Damper control, broken pipe, fire mode and a payback counter
- LCD keypad HOA standard
- Side by side installation
- Heatsink out the back (flange option)
- Built-in EMC filter (optional for 480V)
- BACnet, Modbus-RTU, Metasys N2 communication protocol as standard
- Fan and pump drive up to 800hp
H100 Series Features Include:
- HVAC/fan and pump drive
- 1 phase UL rating for 230V & 480V
- Built-in EMC filter (option for 480V)
- BACnet, Modbus-RTU, Metasys N2 & communication protocol standard
- UL Plenum rated
- Side by side installation
- Heatsink out the back (flange mount)
- LCD keypad designed just for HVAC/fan and pump apps
- Many features for HVAC/fan and pump applications
Technical Information:
- LS Electric H100 Series Fan and Pump Drive Catalog
- LS Electric H100 Series Fan and Pump Drive User Manual
- LS Electric H100 Series Troubleshooting Manual
- LS Electric VFD Quick Start Guide
- LS Electric Low-Voltage Drive Solution Catalog
- LS Electric Smart Factory Automation Solutions Brochure
Options Technical Information:
- LS Electric SV-iS7/LSLV-H100 Series NEMA4X/IP66 Keypad Mount Option User Manual
- LS Electric H100 Series Disconnect Switch Option Flyer
- LS Electric H100 Series Disconnect Switch Installation Guide
- LS Electric LSLV-H100 Series Extension I/O User Manual
- LS Electric LSLV-H100 Series Extension I/O2 User Manual

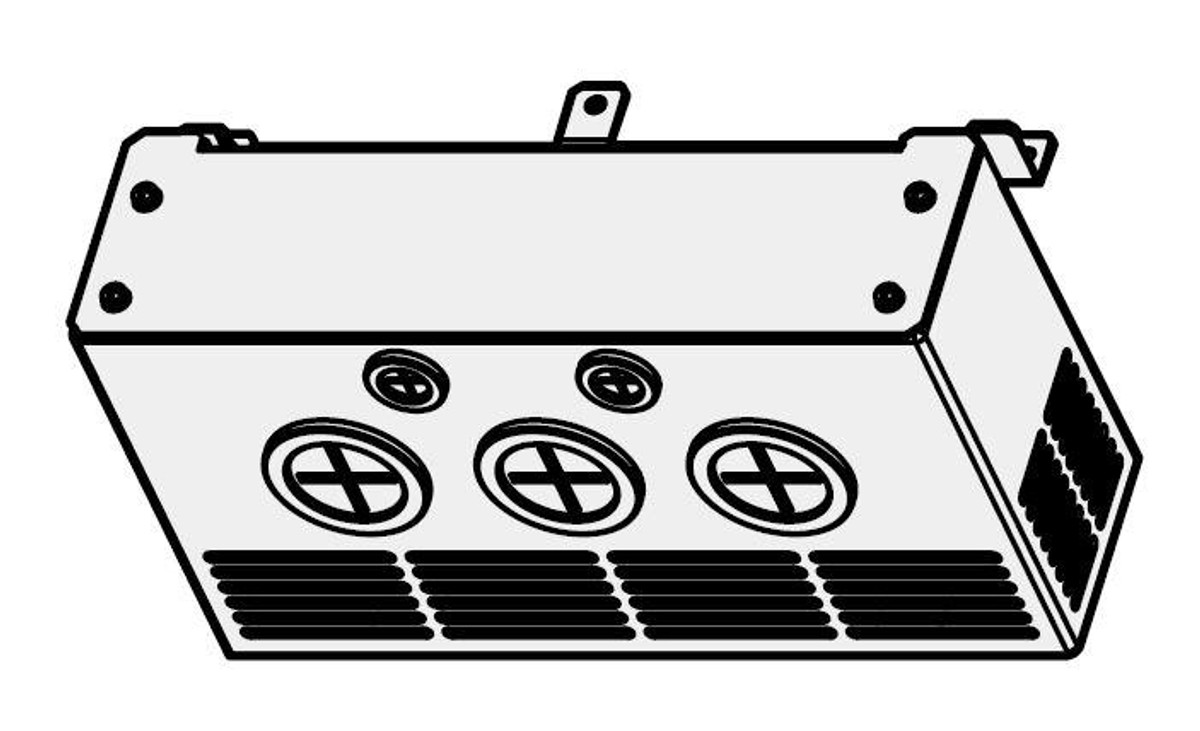

- LS Electric S100/H100 Series Conduit Option Installation Manual
- LS Electric S100/H100 Series Flange Option Installation Manual
- LS Electric Dynamic Braking Resistor Flyer
- LS Electric Dynamic Braking Resistor User Manual
Application Notes:
Want to learn more?
- Protecting Pumps from Dry Running with LSIS
- You’re going to “luv” the C100 series from LS IS!
- VFD Temperature Guide
- What VFD should I use with my pump?
- A Simple Explanation: The Difference Between a Soft Starter and a Variable Frequency Drive
- What does VFD really mean?
- I know I need a VFD, but which manufacturer is best?
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
LS Electric
64150018
Heat Sink, S100/H100 Flange Module F, Frame Size 3, H100: 230V: 25hp / 480V: 30-40hp
$42.97
$21.91
$150.83
$171.90
$40.95
LS Electric
64160005
Option Board, INV, EXTENSION I/O, 2 Digital In, 3 Digital Out, 1 Analog Out, 2 Analog Out
$116.28
$29.47
LS Electric
64160046
H100 Disconnect Switch Option 3 Phase 400V 30hp, UTS150LT FTU 60A 3P & HANDLE, REH2-S-12, UTS250
$517.37
