Dart Controls
SA-STOK-WO
5K Ohm Speed Pot Kit, 8.75" Leads, Knob, & Dial, Use When You Need an Input Device to Set Speed in VFD Applications, Ideal for Panel Mounting
$35.00
Product image is representative only, please verify specifications.

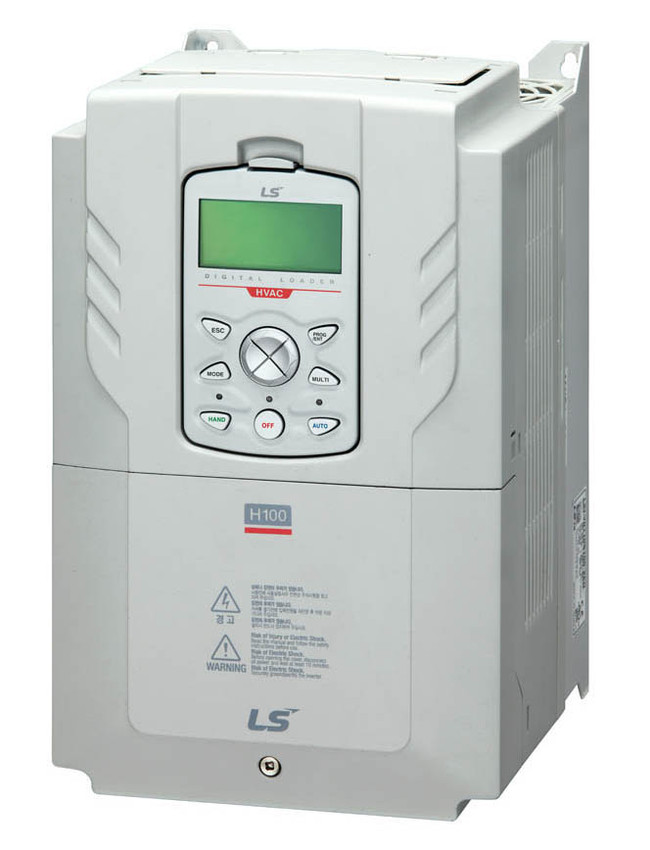

LSLV0150H100-4COFN(PLUS)
Alt: 67310032PL, (PLUS) Latest Version of 6731003200
$1,433.27
VFD, 20hp, 380-480VAC, Three Phase, 30 Amp (30A), Built-in EMC Filter, Includes LCD Keypad, 7.1 x 11.4 x 8.1" WHD
- Weight:
- 10.20 LBS
- Minimum Purchase:
- 1 unit
Description
The H100+ (Plus) takes the H100 series features and adds new fan and pump control functions! This series is an eco-friendly and energy saving solution for your fan and pump systems.
This series is available in 240V/3 phase from 1hp to 25hp as well as 480V/3 phase from 1hp to 80hp.
The H100+ series has all of the existing features of the H100 series PLUS:
- No-flow control
- Flow monitoring
- PI auxiliary (suction/level/vacuum) control
- Over-cycling protection
- Differential level detection
- Low/high feedback detection
- Setpoint timeout
- Current limit
- Thrust bearing control
- Pump minimum speed
- Improved Hand-Off-Auto keypad
- Power-On run for keypad command
- Lead-lag
- Enhanced PID performance
- Simplify PID group
- Various sleep mode and method
- Selectable wake-up method (absolute, deviation)
- Wake-up disable mode
- Backspin timer
- Single phase protection - UL tested and approved for use on single phase power
- Dual rating - can be used for normal or heavy duty applications
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
LS Electric
64150017
Heat Sink, S100/H100 Flange Module E, Frame Size 2, H100: 230V: 20hp/480V:20-25
$42.97
$21.91
$270.48
$171.90
$38.59
LS Electric
64160005
Option Board, INV, EXTENSION I/O, 2 Digital In, 3 Digital Out, 1 Analog Out, 2 Analog Out
$116.28
LS Electric
64160044

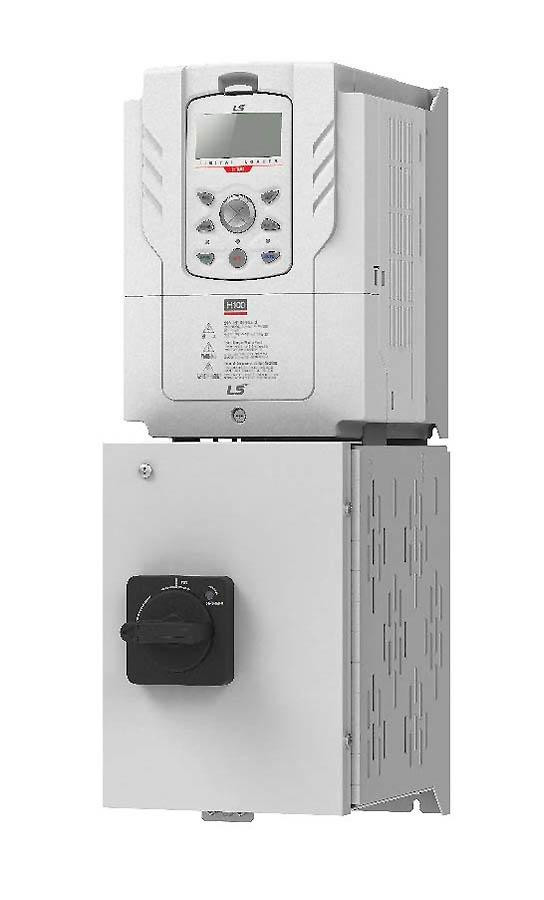

H100 Disconnect Switch Option 3 Phase 400V 20hp, UTS150LT FTU 40A 3P & HANDLE, REH2-S-12, UTS250
$472.71
