LSLV0750H100-4COFD
Alt: 6731001500, Replaced by H100+ Series
$5,128.78

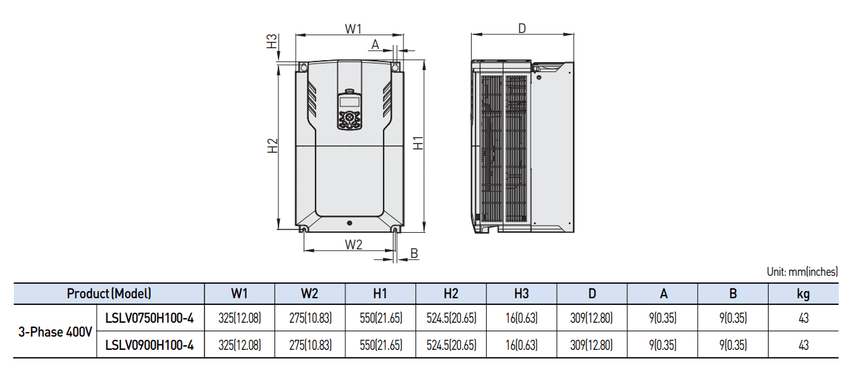

VFD, 100hp, 380-480VAC, 3 Phase, 142A, DC Reactor, 12.8 x 21.65 x 12.17", Includes LCD Keypad
- Weight:
- 115.80 LBS
- Minimum Purchase:
- 1 unit
Description
The LSIS H100 series is a true HVAC drive. Whether you are a system designer or the end user, you will appreciate the standard configuration.
Can your current HVAC drive operate in a pollution degree 3 environment without the expense of optional conformal coating? Our H100 can.
The H100 comes with 5 relay outputs standard... eliminates the need for option cards that are sometimes required for certain installations.
Features include:
- Damper control, broken pipe, fire mode and a payback counter
- LCD keypad HOA standard
- Side by side installation
- Heatsink out the back (flange option)
- Built-in EMC filter (optional for 480V)
- BACnet, Modbus-RTU, Metasys N2 communication protocol as standard
- Fan and pump drive up to 800hp
H100 Series Features Include:
- HVAC/fan and pump drive
- 1 phase UL rating for 230V & 480V
- Built-in EMC filter (option for 480V)
- BACnet, Modbus-RTU, Metasys N2 & communication protocol standard
- UL Plenum rated
- Side by side installation
- Heatsink out the back (flange mount)
- LCD keypad designed just for HVAC/fan and pump apps
- Many features for HVAC/fan and pump applications
