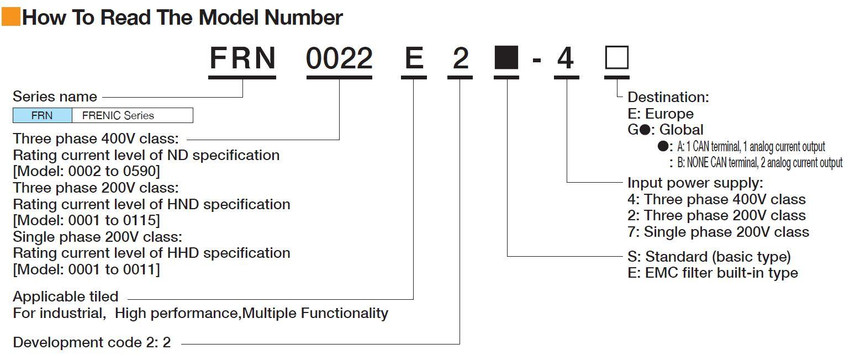

FRN0072E2S-4GB
Alt: FRENIC-Ace Series
$1,688.46
VFD, 30hp/40hp, 45/60 Amp (45/60A), CT/VT, Three Phase, Sensorless Vector, STO (Safe Torque Off), High Performance, 9.84 x 15.75 x 7.68" (WHD), Dual Rated for Constant Torque (CT) and Variable Torque (VT) Applications, FRENIC-Ace Series
- Weight:
- 29.70 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Our Fuji Electric FRENIC-Ace is loaded with features! This high performance drive has 200 steps of customizable logic and has safety torque off (STO) input.
As always, Fuji uses components with a lifespan of 10 years or more and comes with their 3-year warranty.
Currently FRENIC-Ace is stocked in the US from 1/8 to 40 horsepower. For higher horsepower please contact us and we will get delivery from the factor. Please note 50 hp and up is considered 'non-stock' by Fuji.

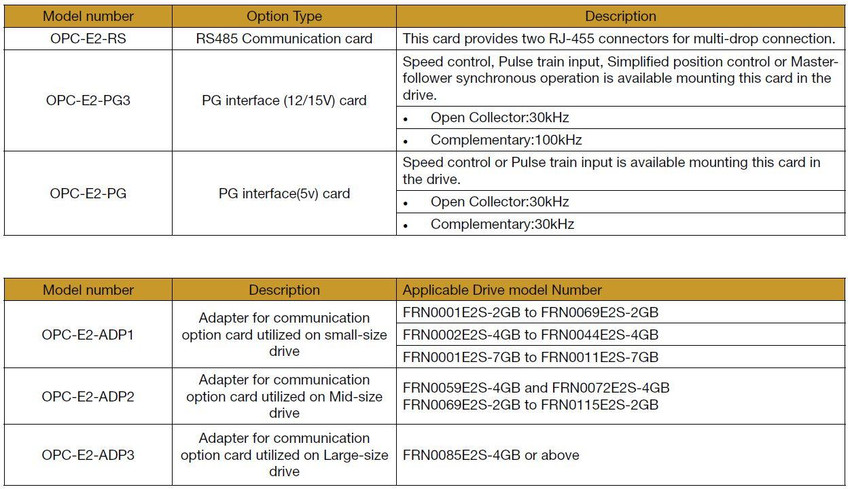

Option cards are available: OPC-XXX. It is possible to install one communication card and one terminal block option card. A mounting adapter is required to install the communication card to the converter.
This series was launched April 1, 2017.
Eventually this series will replace the FRENIC-Multi. We expect the FRENIC-Multi to be available through 2018.
Specifications
Horsepower
30 hp
Housing/Enclosure

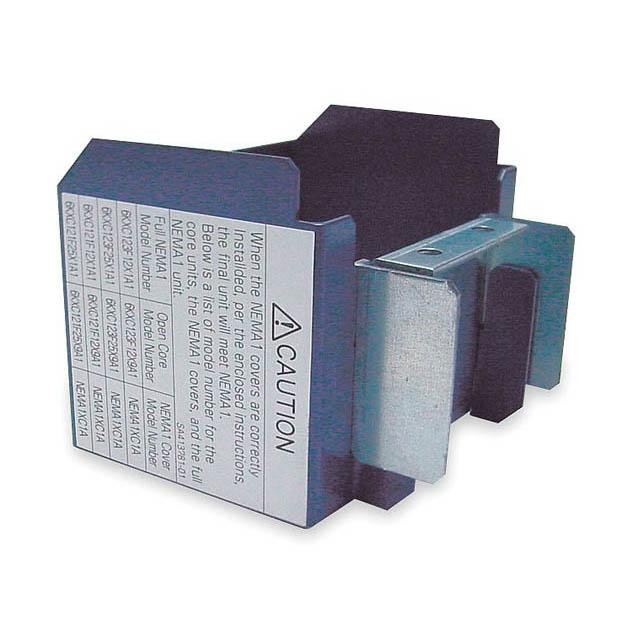

IP20 (NEMA 1 Kit Available)
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
FRENIC-Ace
Options
Enclosed, STO (Safe Torque Off)
STO (Safe Torque Off)
Yes
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
High Performance
Warranty
3 Years
Quantity
1
Alternate Part Number
FRENIC-Ace Series
Width
9.84"
Length/Depth
7.68" D
Height
15.75"
Weight
29.7
FRENIC-Ace Series Features Include:
- Sensorless dynamic torque vector control
- Motor vector control with PG (with optional card)
- Synchronous motor with sensorless vector control
- 2-channel on-board RS485 communications port
- Standard CANopen compatibility
- Removable keypad device
- Removable control terminal block board
- IP20, NEMA 1/UL Type 1 kit optional
- UL 508C, CE, KC, UL single phase input, UL Plenums rating, RoHS
- Standard stock from 1/8 to 40 hp
- Over 50hp available, may have leadtimes
Downloads
- Fuji FRENIC-Ace High Performance Inverter Catalog
- Fuji FRENIC-Ace High Performance Inverter Datasheet
- Fuji FRENIC-Ace High Performance Inverter Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Solar Pumping Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Supplement to Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Global Model User Manual
- Fuji FRENIC-Ace High Performance Inverter Quick Reference Guide
- Fuji FRENIC-Ace Specifications for Global Model
- Fuji FRENIC-Ace Engineering Specifications
