FRN0006E2S-4GB

Our Fuji Electric FRENIC-Ace is loaded with features! This high performance drive has 200 steps of customizable logic and has safety torque off (STO) input.

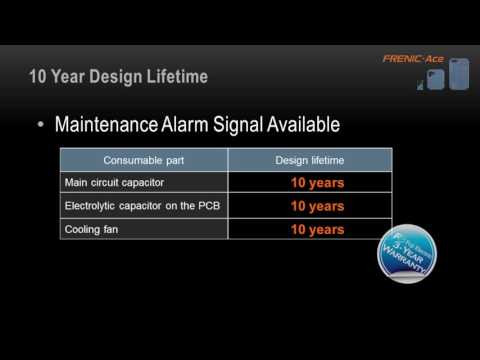

As always, Fuji uses components with a lifespan of 10 years or more and comes with their 3-year warranty.

Currently FRENIC-Ace is stocked in the US from 1/8 to 40 horsepower. For higher horsepower please contact us and we will get delivery from the factor. Please note 50 hp and up is considered 'non-stock' by Fuji.

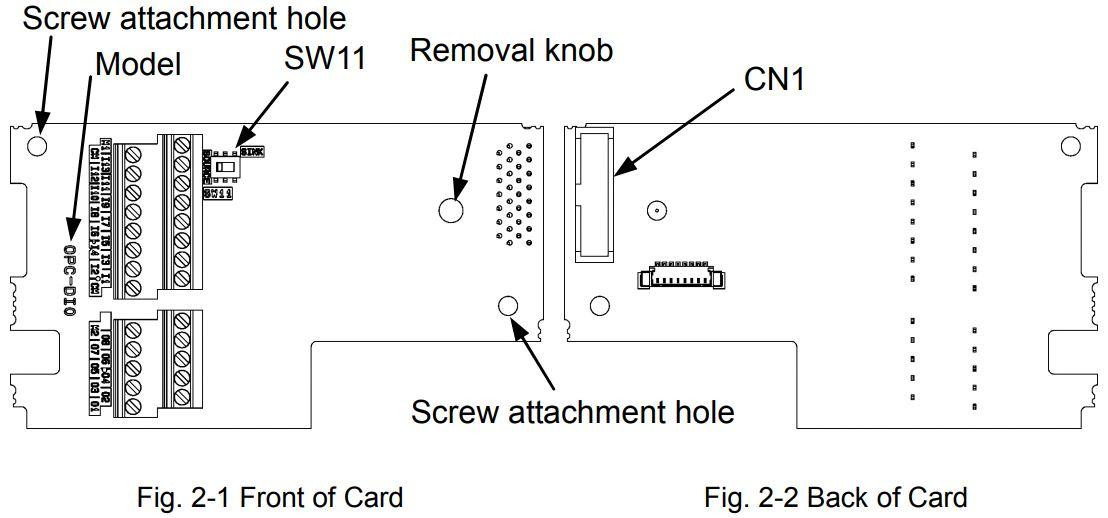

Option cards are available: OPC-XXX. It is possible to install one communication card and one terminal block option card. A mounting adapter is required to install the communication card to the converter.

This series was launched April 1, 2017.

Eventually this series will replace the FRENIC-Multi. We expect the FRENIC-Multi to be available through 2018.

FRENIC-Ace Series Features Include:

• Sensorless dynamic torque vector control
• Motor vector control with PG (with optional card)
• Synchronous motor with sensorless vector control
• 2-channel on-board RS485 communications port
• Standard CANopen compatibility
• Removable keypad device
• Removable control terminal block board

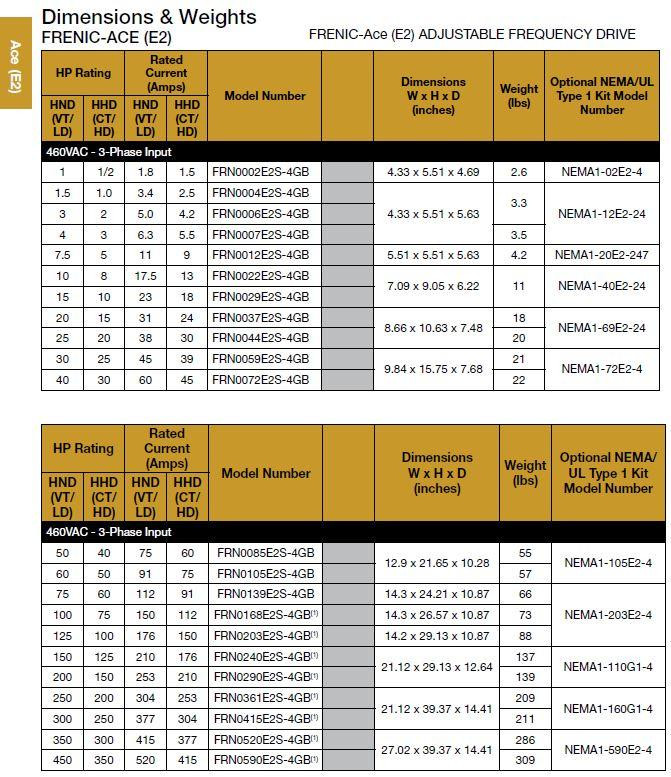

• IP20, NEMA 1/UL Type 1 kit optional
• UL 508C, CE, KC, UL single phase input, UL Plenums rating, RoHS
• Standard stock from 1/8 to 40 hp
• Over 50hp available, may have leadtimes

Technical Information:

• Fuji FRENIC-Ace High Performance Inverter Catalog
• Fuji FRENIC-Ace High Performance Inverter Datasheet
• Fuji FRENIC-Ace High Performance Inverter Instruction Manual
• Fuji FRENIC-Ace High Performance Inverter Solar Pumping Instruction Manual
• Fuji FRENIC-Ace High Performance Inverter Supplement to Instruction Manual
• Fuji FRENIC-Ace High Performance Inverter Global Model User Manual
• Fuji FRENIC-Ace High Performance Inverter Quick Reference Guide
• Fuji FRENIC-Ace Specifications for Global Model
• Fuji FRENIC-Ace Engineering Specifications

Option Manuals:

• Fuji I/O card 115V input OPC-115V Instruction Manual
• Fuji OPC-PRT Multiprotocol Ethernet Interface Brochure
• Fuji OPC-PRT Multiprotocol Ethernet Interface User Manual
• Fuji RS-485 User Manual
• Fuji Supplement to RS-485 User Manual
• Fuji Inverter Support Software FRENIC Loader 3.3 Instruction Manual
• Fuji Inverter TP-AI Multi-Function Keypad Instruction Manual

Application Notes:

• Fuji Low Voltage AC Drives Selection Guide
• Fuji FRENIC-Ace Single Phase Ratings Application Note
• Fuji Surge Protection Information for AC Drives Technical Bulletin
• Fuji Motor Wiring Distances With VFD Application Note
• Fuji Cost of Downtime Infographic Flyer
