CFW110031T4ON1Z
Alt: 10574740
$2,478.72

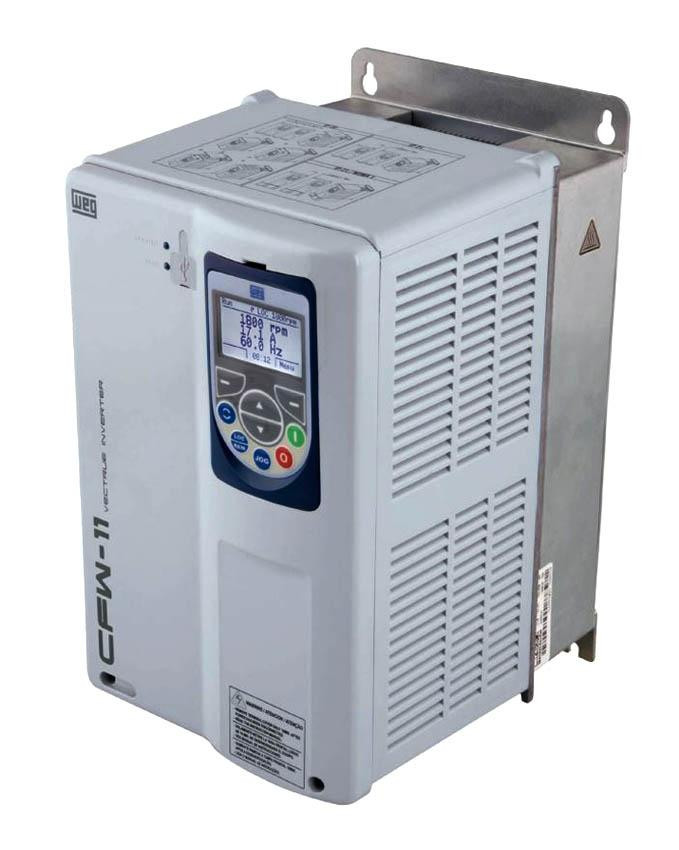

VFD, 20hp ND/VT, 3 Phase 380-480VAC with Dynamic Braking, NEMA 1, 13.9 x 7.5 x 9.0", No Pump Genius Software
- Weight:
- 32.00 LBS
- Minimum Purchase:
- 1 unit
Description
AC Drive, 20hp, 380-480V, 3 Phase, NEMA 1, 13.9 x 7.5 x 9.0" w/Dynamic Braking Transistor
Pump Genius (WEG drives with suffix -PGS):
- Pump Genius can be applied to any pump system that requires constant flow or pressure control.
- Reduce System Component Cost
- Improve System Reliability
- Reduce Maintenance Costs
- Eliminate Costly Control Panels
- Reduce System Energy Requirements
- Reduce Overall Installation Costs
Features Include:
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
Applications Include:
- Multi Pump Control
- Pumps
- Fans
- Exhausts
- Compressors
- Paper and Cellulose / Wood
- Cement and Mining
- Oil and Gas
- Iron Works and Metallurgy
- Elevation
- Refrigeration
- Sugar and Alcohol
- Process Machine
