FRN0361E2S-4GB
Alt: FRENIC-Ace Series
$9,713.80

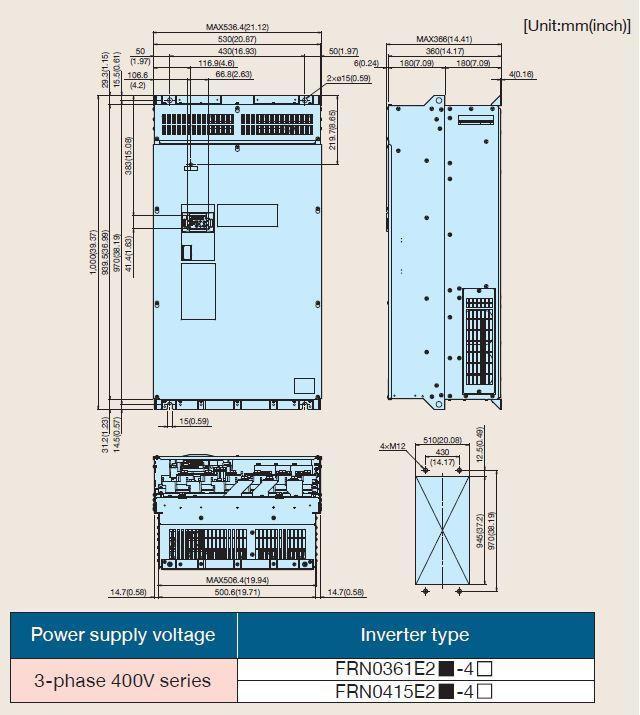

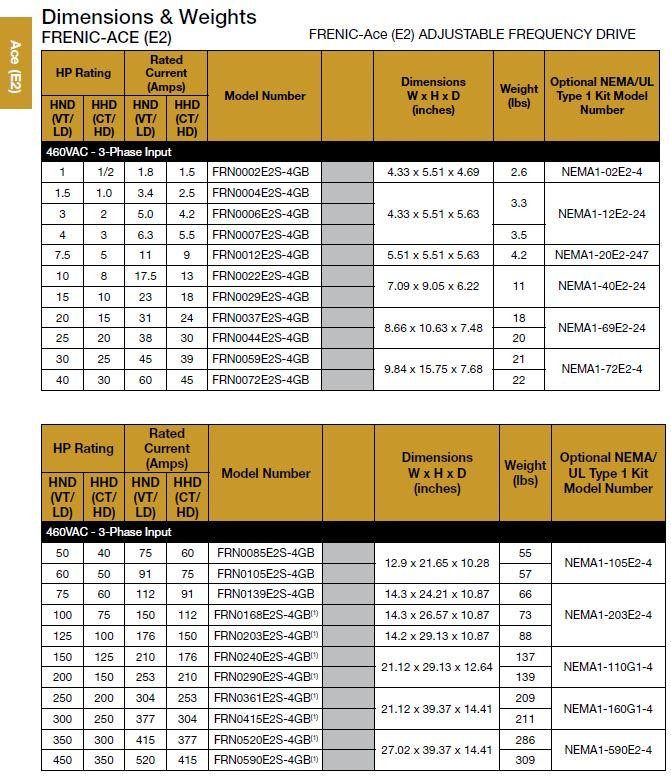

VFD, 200hp/250hp, 253/304 Amp (253/304A), CT/VT, 3 Phase, Sensorless Vector, STO (Safe Torque Off), 21.12 x 39.37 x 14.41" (WHD), Optional NEMA 1 Kit: NEMA1-160G1-4 Available to Order Separately, Dual Rated for Constant Torque (CT) and Vari
- Weight:
- 282.15 LBS
- Minimum Purchase:
- 1 unit
Description
Our Fuji Electric FRENIC-Ace is loaded with features! This high performance drive has 200 steps of customizable logic and has safety torque off (STO) input.

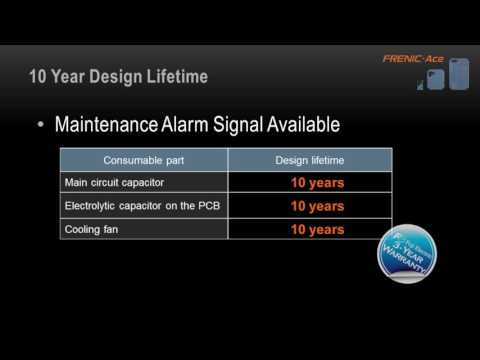

As always, Fuji uses components with a lifespan of 10 years or more and comes with their 3-year warranty.
Currently FRENIC-Ace is stocked in the US from 1/8 to 40 horsepower. For higher horsepower please contact us and we will get delivery from the factor. Please note 50 hp and up is considered 'non-stock' by Fuji.
Option cards are available: OPC-XXX. It is possible to install one communication card and one terminal block option card. A mounting adapter is required to install the communication card to the converter.
This series was launched April 1, 2017.
Eventually this series will replace the FRENIC-Multi. We expect the FRENIC-Multi to be available through 2018.
FRENIC-Ace Series Features Include:
- Sensorless dynamic torque vector control
- Motor vector control with PG (with optional card)
- Synchronous motor with sensorless vector control
- 2-channel on-board RS485 communications port
- Standard CANopen compatibility
- Removable keypad device
- Removable control terminal block board
- IP20, NEMA 1/UL Type 1 kit optional
- UL 508C, CE, KC, UL single phase input, UL Plenums rating, RoHS
- Standard stock from 1/8 to 40 hp
- Over 50hp available, may have leadtimes
Technical Information:
- Fuji FRENIC-Ace High Performance Inverter Catalog
- Fuji FRENIC-Ace High Performance Inverter Datasheet
- Fuji FRENIC-Ace High Performance Inverter Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Solar Pumping Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Supplement to Instruction Manual
- Fuji FRENIC-Ace High Performance Inverter Global Model User Manual
- Fuji FRENIC-Ace High Performance Inverter Quick Reference Guide
- Fuji FRENIC-Ace Specifications for Global Model
- Fuji FRENIC-Ace Engineering Specifications
Option Manuals:
- Fuji I/O card 115V input OPC-115V Instruction Manual
- Fuji OPC-PRT Multiprotocol Ethernet Interface Brochure
- Fuji OPC-PRT Multiprotocol Ethernet Interface User Manual
- Fuji RS-485 User Manual
- Fuji Supplement to RS-485 User Manual
- Fuji Inverter Support Software FRENIC Loader 3.3 Instruction Manual
- Fuji Inverter TP-AI Multi-Function Keypad Instruction Manual
Application Notes:
