CFW110142T4ON1Z
Alt: 11128980
$8,000.00

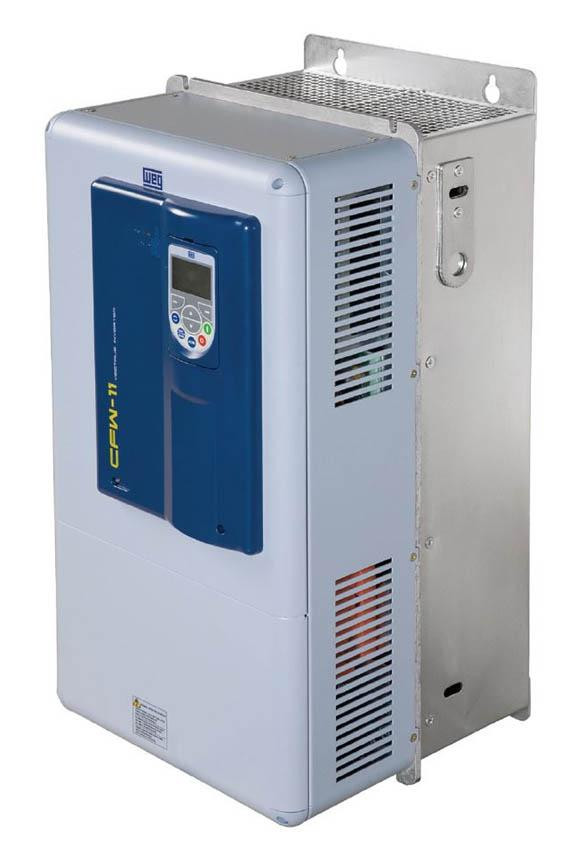

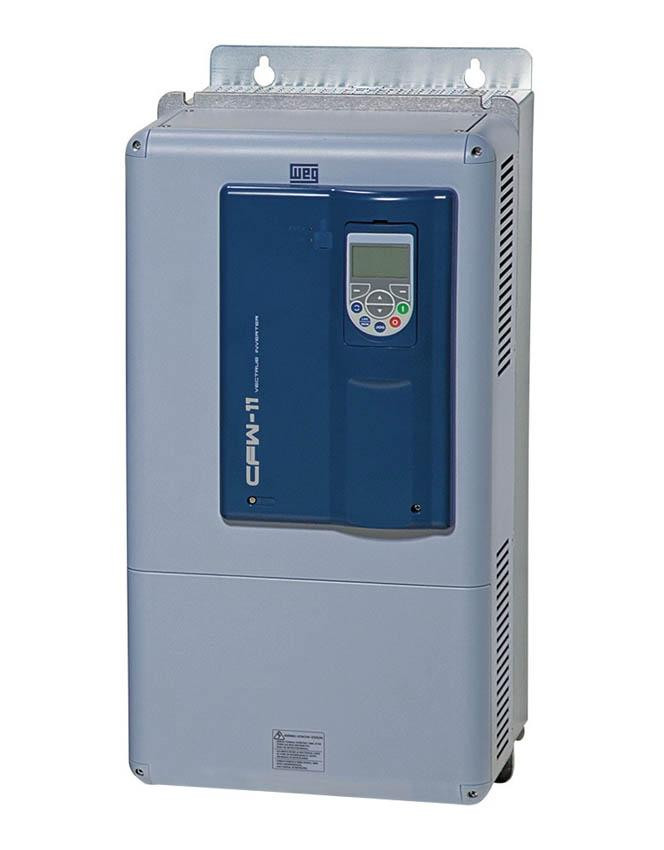

VFD, 100/125hp ND/VT, 3 Phase 380-480VAC, without Dynamic Braking, NEMA 1, IP20, 26.6 x 13.2 x 14.1
- Weight:
- 209.10 LBS
- Minimum Purchase:
- 1 unit
Description
AC Drive, 100/125hp ND/VT, 3 Phase 380-480VAC, w/o DB, NEMA 1, IP20, 26.6 x 13.2 x 14.1
Specifications
Alternate Part Number
11128980
Horsepower
125 hp
Housing/Enclosure
IP20
Input Phase
3 Phase
Input Voltage
400-480V, 3 Phase
Outdoor Rated
No
Output
3 Phase Output
Series
CFW11 Series
Options
Enclosed, Keypad
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
High Performance
Warranty
18 Months
Weight
209.1
Pump Genius (WEG drives with suffix -PGS):
- Pump Genius can be applied to any pump system that requires constant flow or pressure control.
- Reduce System Component Cost
- Improve System Reliability
- Reduce Maintenance Costs
- Eliminate Costly Control Panels
- Reduce System Energy Requirements
- Reduce Overall Installation Costs
Features Include:
- Built-in inductors on the DC Link
- Space saving in the panel
- Built-in USB port
- Inverter smart cooling system
- Several communication protocols available (Modbus-RTU, Modbus-TCP, Profibus-DP-V1, DeviceNet, CANopen, EtherNet/IP, EtherCAT, PROFINET-IO and BACnet)
- Version with cabinet with degree of protection IP55 (versions with built-in switch-disconnector)
- High precision and reliability in speed and torque control
- Robust hardware
Applications Include:
- Multi Pump Control
- Pumps
- Fans
- Exhausts
- Compressors
- Paper and Cellulose / Wood
- Cement and Mining
- Oil and Gas
- Iron Works and Metallurgy
- Elevation
- Refrigeration
- Sugar and Alcohol
- Process Machine
Downloads
- WEG CFW110142T4ON1Z Datasheet
- WEG CFW11 Variable Frequency Drive Brochure
- WEG CFW11 Variable Frequency Drive Catalog
- WEG CFW11 NEMA12/IP55 Enclosure Catalog
- WEG CFW11 Frame H Variable Frequency Drive Flyer
- WEG CFW11 Variable Frequency Drive Installation Guide
- WEG CFW11 Models 6-105 A / 200-240V, 3.6-88 A / 380-480 V - Frame A to D User's Manual
- WEG CFW11 Models 242-1141 A / 380-480 V - Frame F to H User's Manual
- WEG CFW11 Models 142-211 A / 220-230 V, 105-211 A / 380-480V - Frame E User's Manual
- WEG CFW11 Models 2.9-804 A / 500-690V - Frame B to H User's Manual
- WEG CFW11 IP54 Addendum to User's Manual
- WEG CFW11 Quick Parameter Reference Manual
- WEG CFW11 Quick Parameter Reference Guide
- WEG CFW11 Pump Genius Pump Process Control Software Brochure
- WEG LV Variable Frequency Drives and Soft Starters Product Catalog
