LSLV0075SP100-4CEFD3
Alt: 6731005600, Advertised Price Limited to Available Stock
$1,681.50

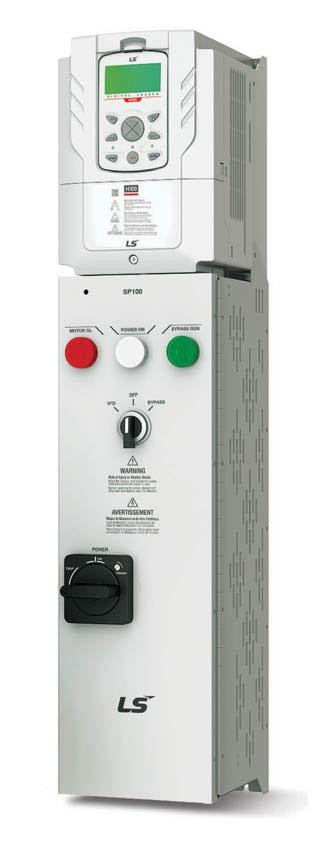

VFD, 10hp, 380-480VAC, Three Phase, Bypass, Built In DC Reactor, 3 Contactor Bypass, 16 Amp (16A), This Series is Currently Undergoing a Redesign and May Have Extended Lead Times or Become Unavailable. Please Verify Before Ordering.
- Weight:
- 48.00 LBS
- Minimum Purchase:
- 1 unit
Description
VFD packaged solution for variable torque fan and pump applications!
The LSIS H100 with bypass/SP100 series is a bypass package that is loaded with features for all HVAC applications.
This series is available from 2 to 75 horsepower, has a NEMA 1 enclosure and both a built-in DC reactor and 3 contactor basic bypass is standard.
Features:
- 3 contactor bypass
- HAND/OFF/AUTO selectiable
- Easy wiring and installation
- Auto bypass function
- Motor OL trip detection
- Built-in Bacnet, Metasys and Modbus protocols
- NEMA 1 enclosure
- KEB, Kinetic Energy buffering
- Fire mode
- Built-in five relay outputs
- Real time clock
- UL, cUL Listed per UL508A
- Built-in, compact AC/DC reactor option
- Built-in EMC filter available for 460V, 2 to 40hp as option
Ideal for HVAC applications, the H100 with bypass (SP100) series offers security with no downtime plus energy savings!
Features Include:
Input Frequency:
- 60Hz +/-5%
Displacement Power Factor
- ≥0.97
Output Frequency:
- 0.00 ~ 400.00Hz
Motor Control Method:
- V/F for all capacity range
Jump Frequencies:
- 3 programmable jump frequency
Ambient Temperature:
- 5% to 95% with no condensation
Technical Information:
- LS Electric HVAC/Pump H100 Bypass Application Flyer
- LS Electric SP100 Quick Start Reference
- LS Electric LSLV-SP100 Series User Manual

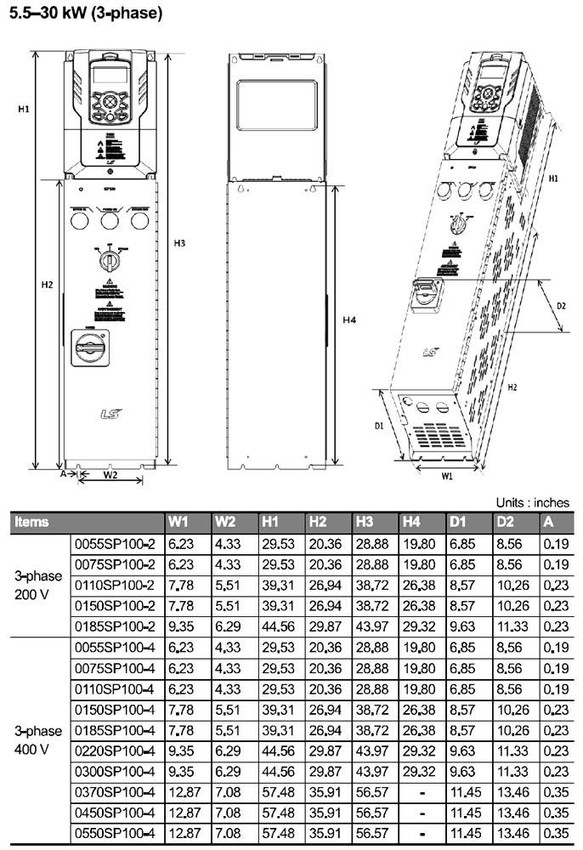

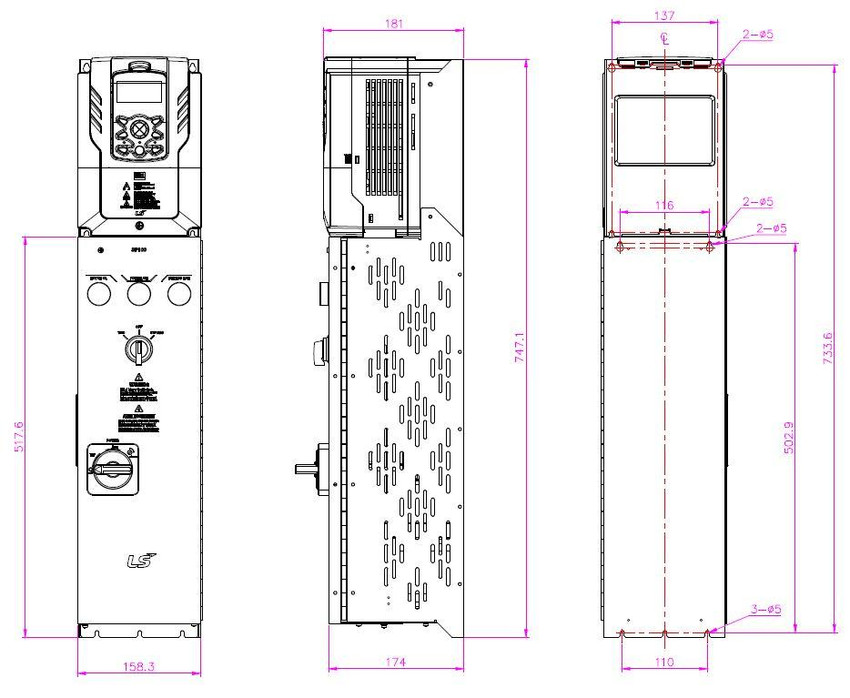

- LS Electric LSLV-SP100 Series Dimensional Drawings
- LS Electric VFD Package Solution Catalog
- LS Electric LV Drive Series Catalog
- LS Electric ‘Electric Power & Automation Solutions’ Brochure
