ODE-3-120043-1F1A-01
Alt: Replaces ODE-3-120043-1F1X-01, Use with PSC or SP Single Phase Motors Only
$494.40

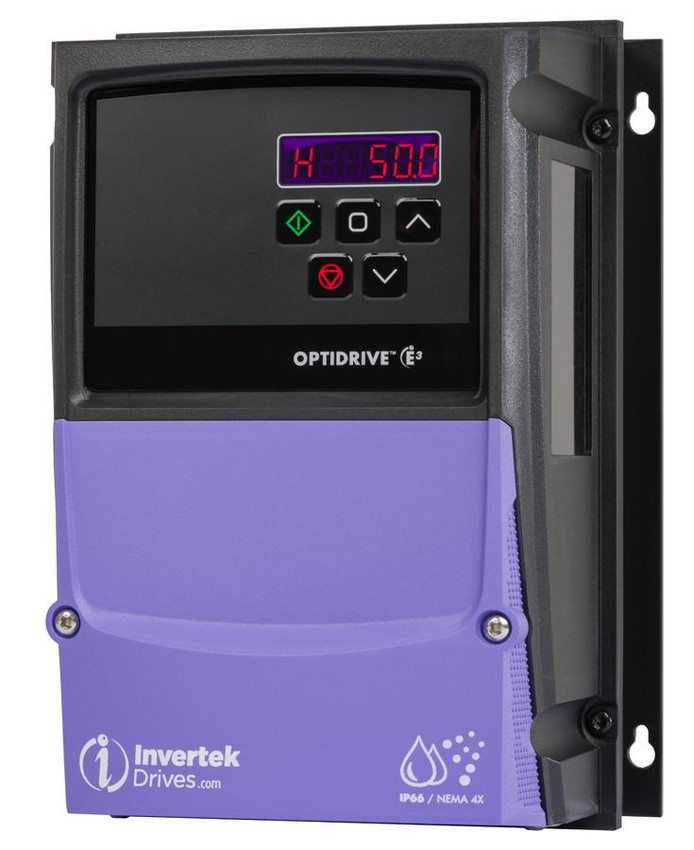

VFD, 0.5hp, 4.3 Amp (4.3A), 200-240V, Single Phase Input/Output, LED Keypad, EMC Filter, (No Internal Brake Transistor), NEMA 4X, IP66 Outdoor Non-Switched, Frame 1, Optidrive E3 Series, Use with PSC or Shaded Pole Single Phase Motors
- Weight:
- 6.39 LBS
- Minimum Purchase:
- 1 unit
Choose Your Motor Starter Solution
Build your motor starter system with knowledgeable guidance on selecting your components, including starters, contactors, relays, and accessories.
Description
The Optidrive E3 from Invertek is a general purpose sensorless vector drive that is great for most motor types.
E3 series, 3 phase rated drives (with the exception of Size 4 IP66/NEMA 4X models) can be derated by 50% for use in single phase power applications. Please see more information under 'Documents'.
Invertek offers single phase input drives up to 10 hp, these drives are not derated.
- This is the most popular, general purpose drive from Invertek
- Available from 0.5 to 50hp
- Single and 3 phase input, 110 to 480V models
- Single phase input models available up to 10hp!
- Choose from IP20 or IP66/NEMA 4X models
- Switch between Industrial or Pump & Fan modes
- Simple set up – just 14 basic parameters and functions
- Includes models for single phase motors
- Can be used with all motor types; induction, AC permanent magnet, brushless DC, line start PM, synchronous reluctance
- Internal Category C1 EMC filter
- 2 year warranty
IP20 (part #'s ending in 2):
- Available up to 50hp, no disconnect switch
- Indoor rated
- 3 phase models can be derated by 50% for use in single phase power applications

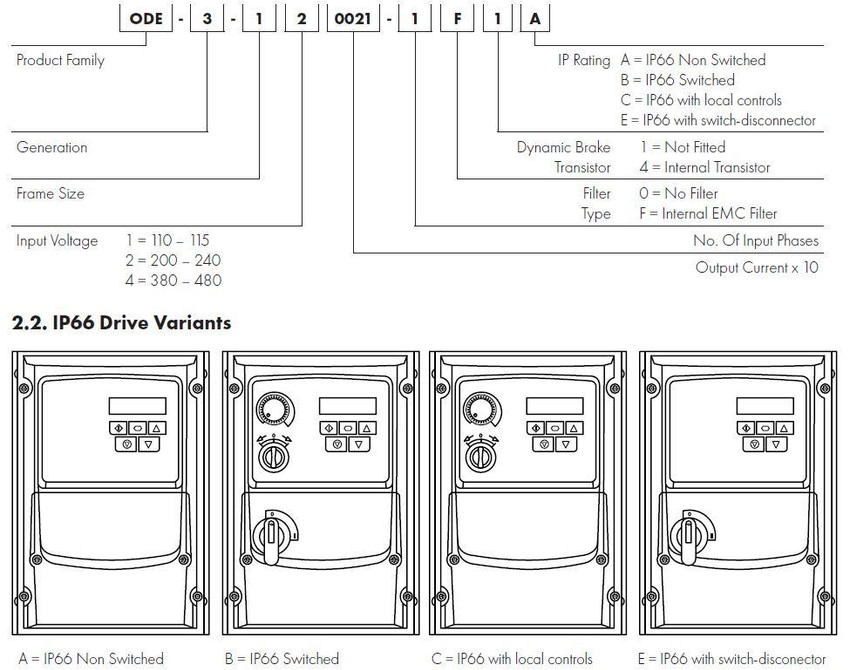

IP66/NEMA 4X (part #'s ending in A or B):
- Ending in B is Outdoor, with disconnect switch
- Ending in A is Outdoor, no disconnect switch
- Outdoor rated, dust-tight and washdown ready!
- Please note: For IP66/NEMA 4X three phase input models, chassis size 4 is not capable of being derated for use in applications supplying single phase power to these units.
- Size 4 chassis use film capacitors which prohibit single phase operation.
Single Phase Input/Output:
- Available from 0.5 to 1,5hp
- For use on permanent split capacitor (PSC) or shaded pole induction motors
- These drives end in -01
- Higher horsepower 3 phase models can be derated for use in single phase power applications.
- Switch between industrial mode, pump mode and fan mode
- 14 parameter basic setup, default settings suitable for most applications
- Internal Category C1 EMC filter
Specifications
Alternate Part Number
Replaces ODE-3-120043-1F1X-01, Use with PSC or SP Single Phase Motors Only
Horsepower
.5 hp (1/2)
Housing/Enclosure
NEMA 4/4X (IP66)
Input Phase
Single Phase
Input Voltage
200-240V, Single Phase
Outdoor Rated
Yes
Output
Single Phase Output
Series
Optidrive E3 Series
Options
Enclosed, Integrated EMC Filter, Keypad
STO (Safe Torque Off)
No
Torque Load
Constant/Variable (CT/VT)
Drives - Type of Drive
General Purpose
Warranty
3 Years
Weight
6.39
Length/Depth
13.58"
Width
8.27"
Height
8.07"
Features Include:
- Power Supply: 24 Volt DC, 100mA, Short Circuit Protected, 10 Volt DC, 10mA for Potentiometer
- Output Current: 4.3 A
- Digital Inputs: 8 – 30 Volt DC, internal or external supply | Response time < 4ms
- Output Frequency: 0 – 500Hz, 0.1Hz resolution
- Acceleration Time: 0.01 - 600 seconds
- Keypad: Built-in keypad as standard, optional remote mountable keypad
- Display: 7 Segment LED
- PC: OptiTools Studio
- Small mechanical envelope
- Rugged industrial operation
- Fast setup, and simple operation with 14 basic parameters
- Unique motor control strategy optimized for single phase motors
- Motor current and rpm indication
- Built in PI control, EMC filter (C1) & brake chopper
- Application macros for industrial, fan and pump operation
- Bluetooth connectivity
Control Method:
- Sensorless Vector Speed Control
- PM Vector Control
- BLDC Control
- Synchronous Reluctance
Downloads
- Invertek High Power VFDs for Single Phase Supplies Flyer
- Invertek Optidrive E3 General Purpose Drive Brochure
- Invertek Optidrive E3 Indoor User Guide
- Invertek Optidrive E3 IP66 Outdoor User Guide
- Invertek Optidrive E3 Quick Start Guide
- Invertek Optidrive E3 Advanced Technical Manual
- Invertek Stock Drives Catalog
