FRN0002E2S-7GB

FRN0002E2S-7GB

Alt: FRENIC-Ace Series

$224.40

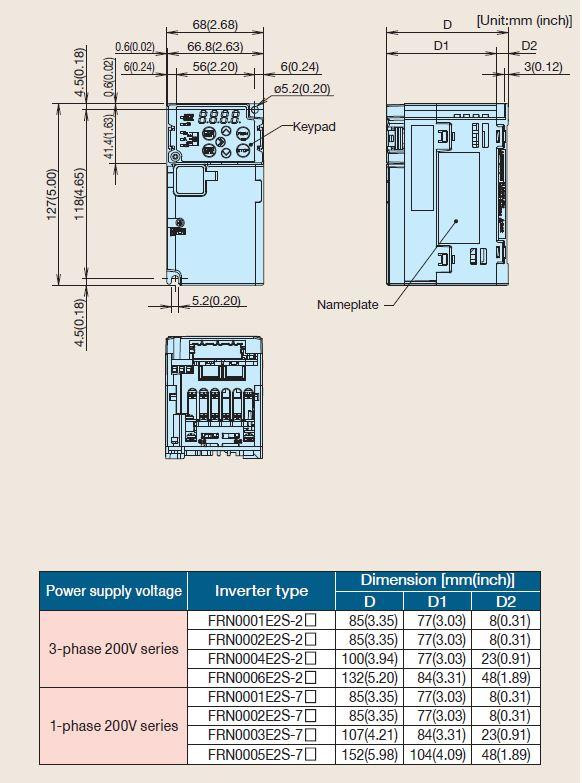

VFD, 0.25hp, 1.6 Amp (1.6A), CT, Single Phase Input, Sensorless Vector, STO (Safe Torque Off), High Performance, 2.68 x 5.00 x 3.35" (WHD), Optional NEMA 1 Kit: NEMA1-02E2-27 Available to Order Separately, FRENIC-Ace Series

Weight:
1.49 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Our Fuji Electric FRENIC-Ace is loaded with features! This high performance drive has 200 steps of customizable logic and has safety torque off (STO) input.

As always, Fuji uses components with a lifespan of 10 years or more and comes with their 3-year warranty.

Currently FRENIC-Ace is stocked in the US from 1/8 to 40 horsepower. For higher horsepower please contact us and we will get delivery from the factor. Please note 50 hp and up is considered 'non-stock' by Fuji.

Option cards are available: OPC-XXX. It is possible to install one communication card and one terminal block option card. A mounting adapter is required to install the communication card to the converter.

This series was launched April 1, 2017.

Eventually this series will replace the FRENIC-Multi. We expect the FRENIC-Multi to be available through 2018.

FRENIC-Ace Series Features Include:

  • Sensorless dynamic torque vector control
  • Motor vector control with PG (with optional card)
  • Synchronous motor with sensorless vector control
  • 2-channel on-board RS485 communications port
  • Standard CANopen compatibility
  • Removable keypad device
  • Removable control terminal block board
  • IP20, NEMA 1/UL Type 1 kit optional
  • UL 508C, CE, KC, UL single phase input, UL Plenums rating, RoHS
  • Standard stock from 1/8 to 40 hp
  • Over 50hp available, may have leadtimes
