$4.32
A204B-A4ER
Alt: Operator Only, Requires Accessories
$5.92

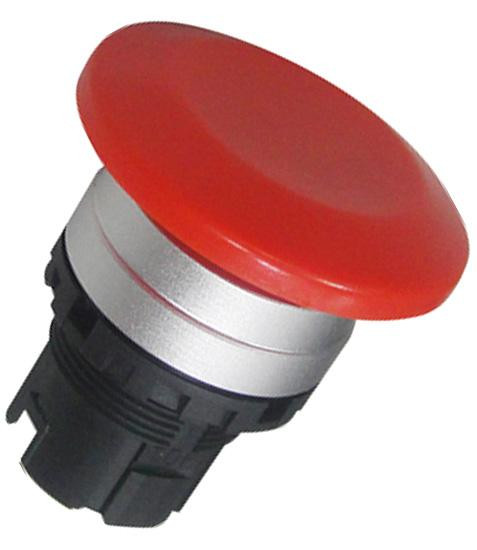

Pushbutton Operator Only, Ø22mm, Non-Illuminated, Maintained, Ø40mm Mushroom, Red
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Our A20 series of 22mm pushbuttons, selector switches and e-stop switches is a modular series.
Please note: you need to purchase the operator and then choose your accessories to complete your switch.
A20 Operators:
- A20B - non-illuminated pushbuttons
- A20L - illuminated pushbuttons
- A20S - non-illuminated selector switches
- A204S - non-illuminated selector switches, available with different bezel options
- A20F - illuminated selector switches
- A204F - non-illuminated selector switches, available with different bezel options
- A20K - key selector switches
- A204K - key selector switches with different bezel options
- A20B-V4ER - non-illuminated e-stop switch
- A20L-V4ER - illuminated e-stop switch
- A20E-K4 - push lock key reset e-stop switch
All of the above require contact blocks and, if illuminated, the lamp socket and LED lamp.
If you are looking for a complete switch by this manufacturer please see the CP2 series.
Series Features Include:
- Removable operator
- Compact and light-weight
- IP20 finger-safe screw terminals (IEC 60529)
- Separate contact block makes installation and removal easy
- Pilot lights feature a large lens for a wide viewing angle
- Matted surfaces on the buttons, lenses, and bezels reduce reflection of ambient light
- UL, c-UL listed, EN compliant, and CCC approved
Technical Information:
