911542
Alt: GLD3-RT/115B/123/147
$205.27

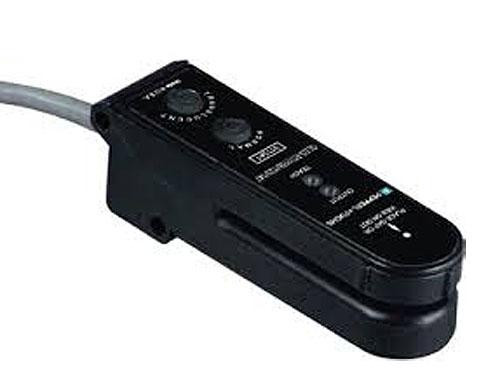

Photoelectric Sensor, Slot for Label Detection, Through Beam, 3mm Slot, M12 5-Pin Pigtail, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Pepperl+Fuchs was founded in 1945 as a small radio workshop in Germany by Walter Pepperl and Ludwig Fuchs. They eventually invented the proximity switch!
Their products include proximity, ultrasonic and photoelectric sensors, explosion protection products, visions systems as well as connectivity and remote I/O options.
The U.S headquarters is located in Twinsburg, Ohio.
Features Include:
- Push-button programmable
- Adjustable sensitivity
- Detection of paper and foil labels, including translucent varieties
- Light Source: LED
- Light Type: Modulated visible red light
- Slot Width: 3 mm
- Function Display: 2 LEDS
- Operating Voltage: 10 - 30 V DC
- No-Load Supply Current: ≤ 45 mA
- Switching Type: Light/Dark On
- Signal Output: 1 NPN and 1 PNP Short circuit, overload protected and reverse polarity protected
- Switching Current: max. 150 mA
- Connection: fixed cable 150 mm with M12 x 1 male connector, 4 pin
- Housing: Thermoplastic PPS
