820KCG1R16
Alt: ClickNGo Micromodule
$28.00

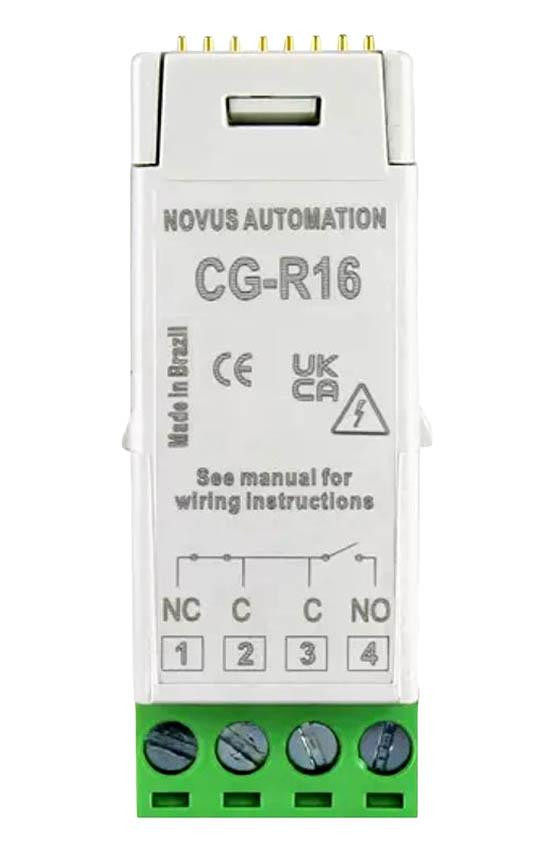

Micromodule ClickNGo 1 Relay Output 16 A (2 Slots)
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Features Include:
- Output Type: SPDT Relay, 16 A / 250 VAC, resistive use
- Input Type: Thermoucouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V, 0-10 V, 0-20 mA and 4-20 mA.
- Power Consumption: 10 VA
- Operating Temperature: -20 to 60 °C (-4 to 140 °F)

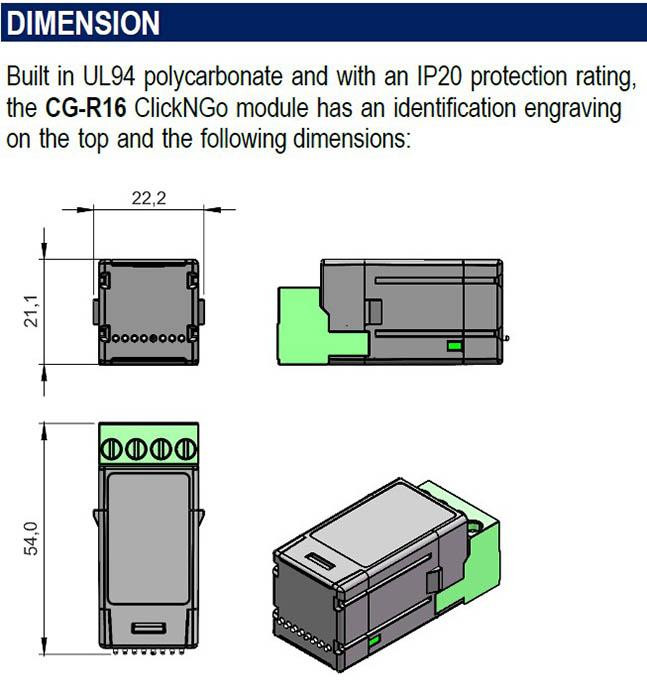

- Dimension: 46.5 x 21.1 x 22.2 mm
- Protection Degree: IP50 when installed in controller, ABS+PC UL94 V-0
- Plastic material: ABS+PC UL94 V-0
- Software: QuickTune (for PC) QuickTune Mobile (for smartphones)
- Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function
- Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth
- Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)
Technical Information:
