820KCG13DO
Alt: ClickNGo Micromodule
$20.00
Micromodule ClickNGo 3 Digital Outputs (1 Slot)
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.
NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.
Features Include:

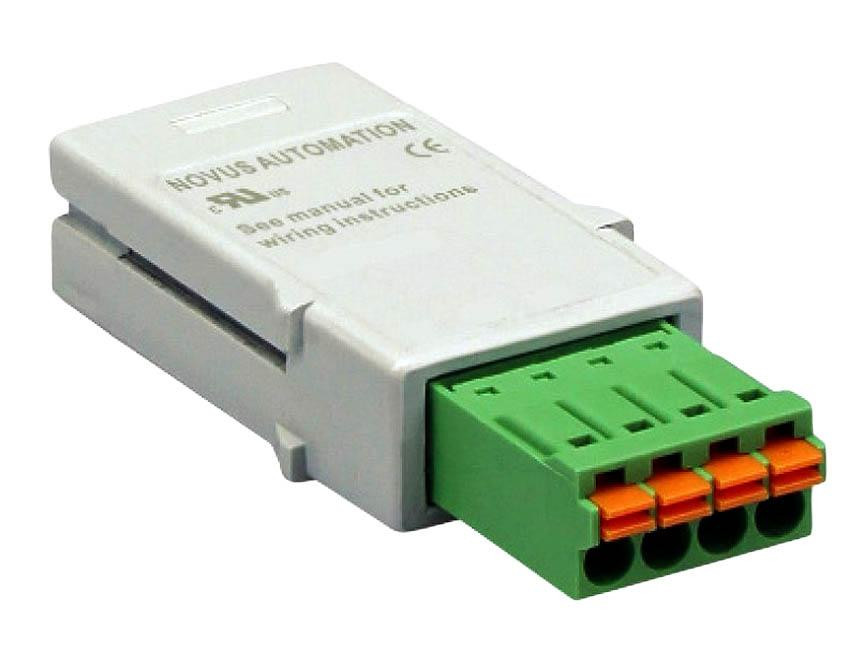

- CG-3DO ClickNGo Module has 3 pulse voltage outputs (+5V) and was designed to work as an expansion module for NOVUS line of modular controllers.
- Operating Temperature: -20 to 60 °C (-4 to 140 °F)

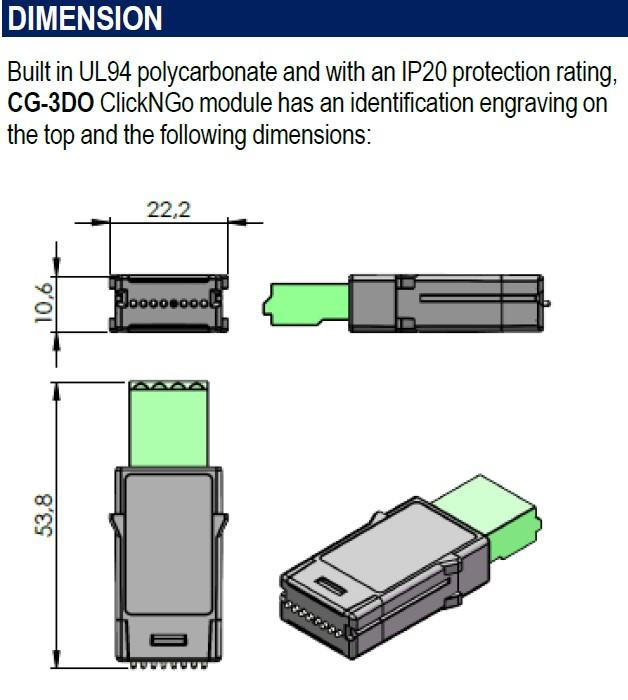

- Dimension: 53.8 x 10.6 x 22.2 mm
- Protection Degree: IP50 when installed in controller
- Plastic material: ABS+PC UL94 V-0
- Software: QuickTune (for PC) QuickTune Mobile (for smartphones)
- Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)
