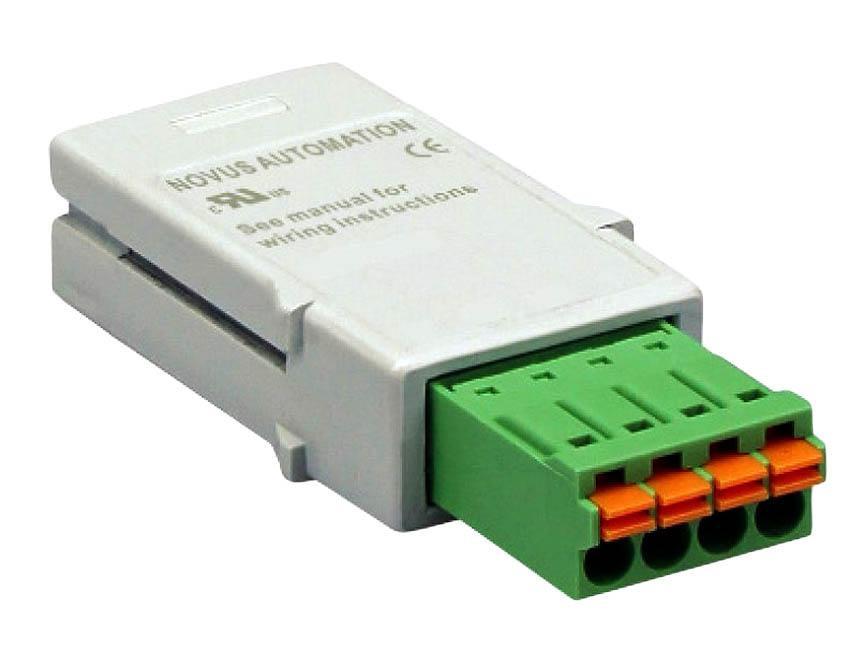

820KCG11AO

Since 1982, NOVUS Automation has manufactured devices for data acquisition, temperature and process control as well as signal conditioning.



NOVUS is headquartered in southern Brazil with sales offices and warehouses in the US as well.

Features Include:

• Available analog output types: 0 to 20 mA | 4 to 20 mV
• Current Accuracy: 0.25 % @ 25 °C
• Resolution: 0.00125 mA (14 bits)
• Thermal Drift: 0.005 % / °C
• Load maximum impedance: 500 Ohms
• Voltage capacity at the output: 10 V
• Maximum voltage at output terminals when there is no load: 16 V
• Electrical isolation from other controller circuits: 600 VAC
• Dimension: 53.8 x 10.6 x 22.2 mm
• Protection Degree: IP50 when installed in the controller
• Plastic material: ABS+PC UL94 V-0
• Software: QuickTune (for PC), QuickTune Mobile (for smartphones)

Technical Information:

• Novus CG-AO ClickNGo Module 1 Analog Output Output Technical Data
• Novus N20K48 Modular Process Controller Flyer
• Novus N20K48 Modular Process User Guide
• Novus Product Automation Catalog
