Modular Process Controller, 12-24VDC Power Supply, High Contrast 11-Segment LCD Display, Bluetooth, Compact Depth Enclosure, Dock (Part # 820KCG00DK) is Required for Any Micromodule Accessories to Work
SKU:
820K481024
Weight:
0.50 LBS
Minimum Purchase:
1 unit
Please note that the dock (part # 820KCG00DK) is required for any micromodule accessories to work!
Novus introduces their NK20K48 series of modular process controllers!
The concept is based on a compact, powerful core controller plus a growing family of micromodules that enables it to meet a wide range of application requirements in the industry. Choose from a selection of cost-effective expansion micromodules (see below) that allow for scalability of I/O, features and connectivity.
The native Bluetooth interface offers simple field diagnostic and commissioning through the QuickTune Mobile app, which reduces eventual downtime, while the USB interface provides batch conguration option, optimizing workbench series production.
The controller features a large and bright clear-to-read display, while keeping a compact depth enclosure which makes it suitable for installation in restricted spaces. With a design focused on the best user experience, the QuickTune Mobile app provides the user an intuitive mobile platform for configuration management for all controllers and micromodules on the shop floor.
Process Controllers:
820K481010 - 100-240VAC/DC power supply (standard)
820K481024 - 24VDC power supply

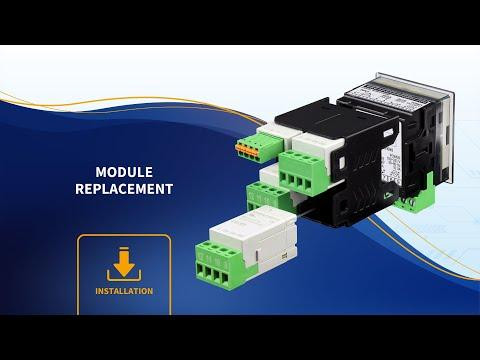

Expansion ClickNGo Micromodules:

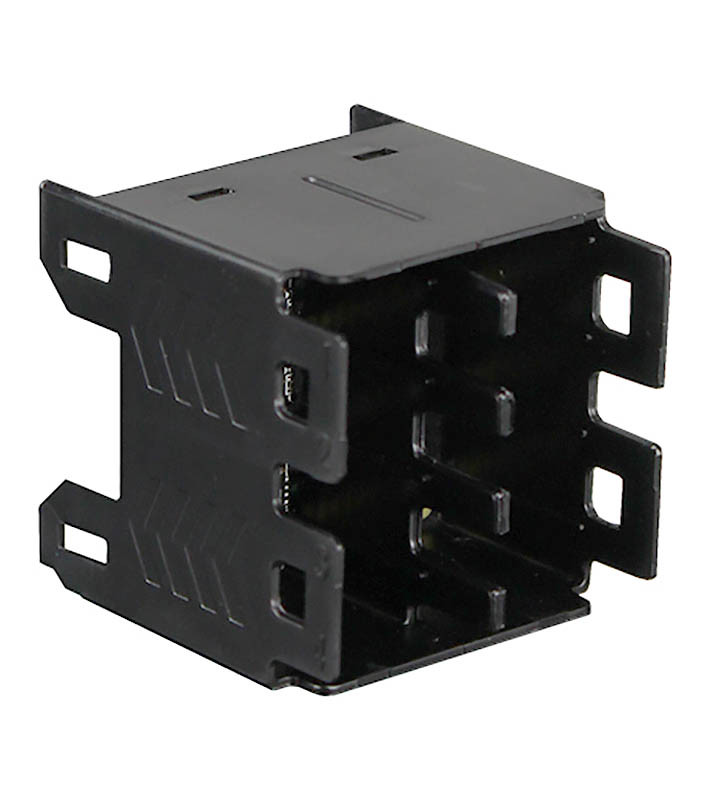

DOCK N20K48- Dock for micromodules
CG-2RS - 2 relays, 5A
CG-3DI - 3 digital inputs
CG-R16 - 1 relay, 16A
CG-3DO- 3 digital outputs
CG-1AO - 1 analog output
CG-485 - RS485 Modbus RTU interface
Available soon - CG-WIFI (WIFI interface) and CG-NAIR (Air wireless interface)
Please note that the dock (part # 820KCG00DK) is required for any micromodule accessories to work!
Series Features Include:
Display: LCD type, alphanumeric with 11 segments.
Input Type: Thermocouple J, K, T, E, S, N, R, B, Pt100, 0-50 mV, 0-5 V, 0-10 V, 0-20 mA and 4-20 mA.
PID Features: PWM, Auto tune
Control Action: 1 Loop (Heat or Cool)
Output Control: 1 Pulse and up to 1 Relay
Ramp & Soak: 20 Programs, 9 Segments
Sampling Period: 18 ms
Communication: RS485 Modbus RTU (optional)
Power Consumption: 10 VA
Special Functions: Soft-Start, PID Loop Break, Ramp and Soak event, 4 Alarms (9 alarm types) and Timer Function
Configuration: Software NOVUS QuickTune, QuickTune Mobile, via USB (micro-B type) or Bluetooth
Power Supply: 100-240 Vac/dc or 12-24 Vdc (Optional)
Operate Conditions: Temperature: -20 to 60 °C (-4 to 140 °F), Humidity: 80 % @ 30 °C (86 °F)
