820K481010

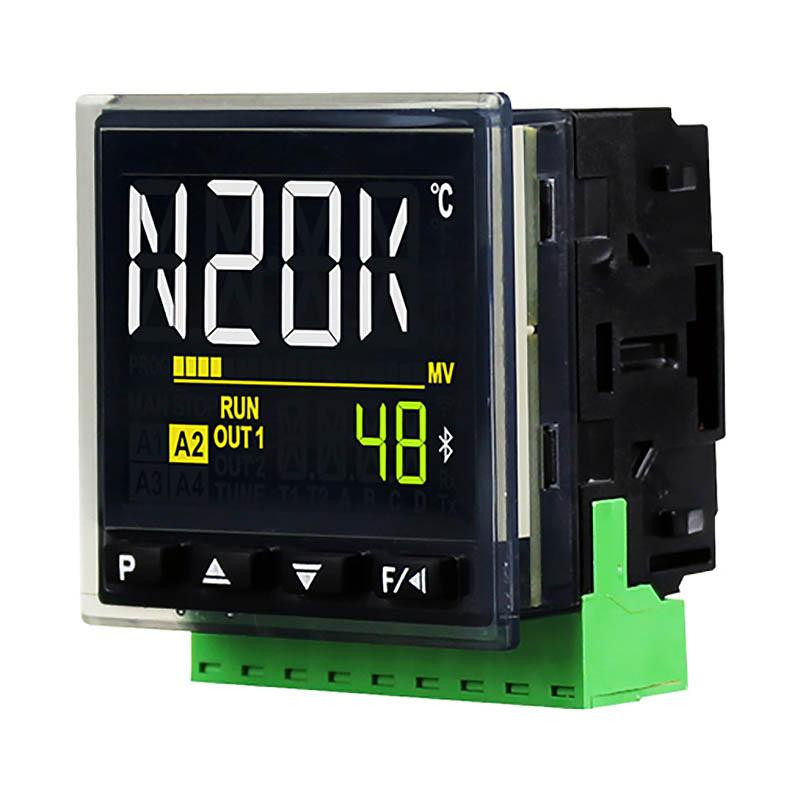

Novus introduces their NK20K48 series of modular process controllers!

The concept is based on a compact, powerful core controller plus a growing family of micromodules that enables it to meet a wide range of application requirements in the industry. Choose from a selection of cost-effective expansion micromodules (see below) that allow for scalability of I/O, features and connectivity.

The native Bluetooth interface offers simple field diagnostic and commissioning through the QuickTune Mobile app, which reduces eventual downtime, while the USB interface provides batch conguration option, optimizing workbench series production.

The controller features a large and bright clear-to-read display, while keeping a compact depth enclosure which makes it suitable for installation in restricted spaces. With a design focused on the best user experience, the QuickTune Mobile app provides the user an intuitive mobile platform for configuration management for all controllers and micromodules on the shop floor.

Process Controllers:

• 820K481010 - 100-240VAC/DC power supply (standard)
• 820K481024 - 24VDC power supply

Expansion ClickNGo Micromodules:

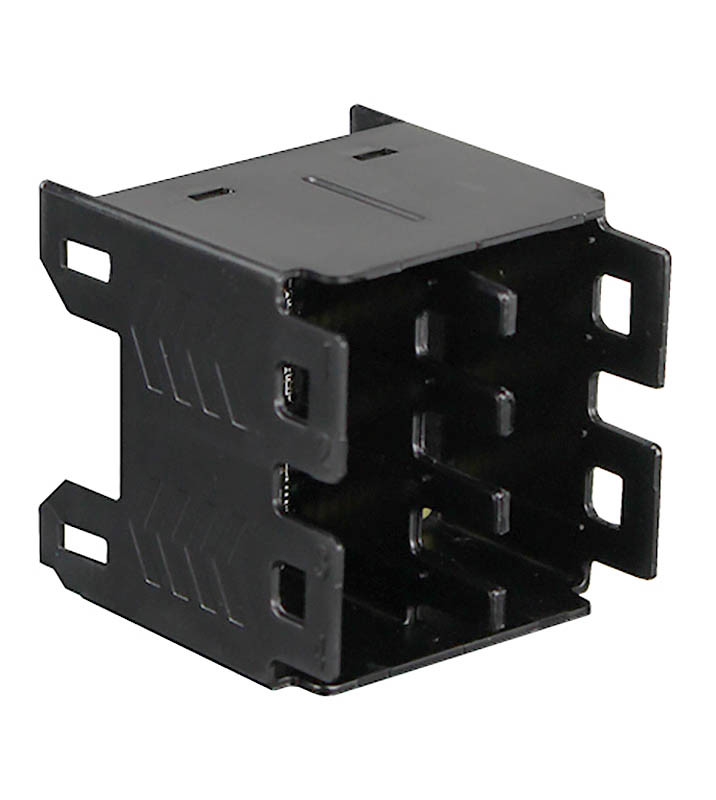

• DOCK N20K48- Dock for micromodules
• CG-2RS - 2 relays, 5A
• CG-3DI - 3 digital inputs
• CG-R16 - 1 relay, 16A
• CG-3DO- 3 digital outputs
• CG-1AO - 1 analog output
• CG-485 - RS485 Modbus RTU interface
• Available soon - CG-WIFI (WIFI interface) and CG-NAIR (Air wireless interface)

Please note that the dock (part # 820KCG00DK) is required for any micromodule accessories to work!
