Kacon
730-2TR-24VDC
Electro Mechanical Power Relay, DIN Rail Mount and Screw Terminals, 25A, DPST NO, 24VDC Coil Input
$17.79
730-2TB-24VDC
Alt: K730 Series
$16.64

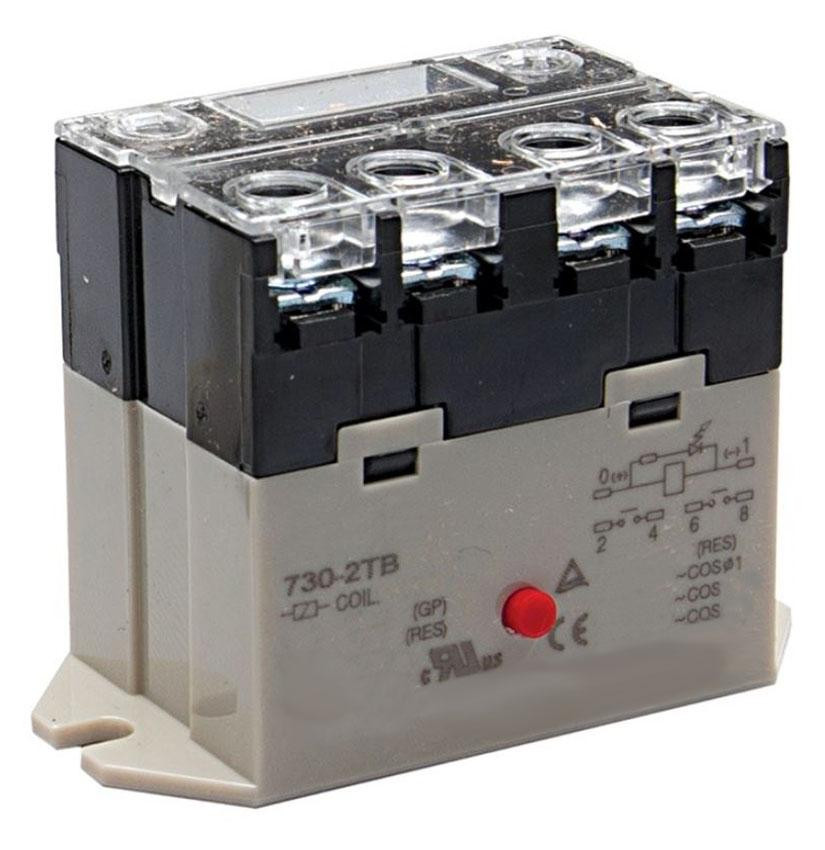

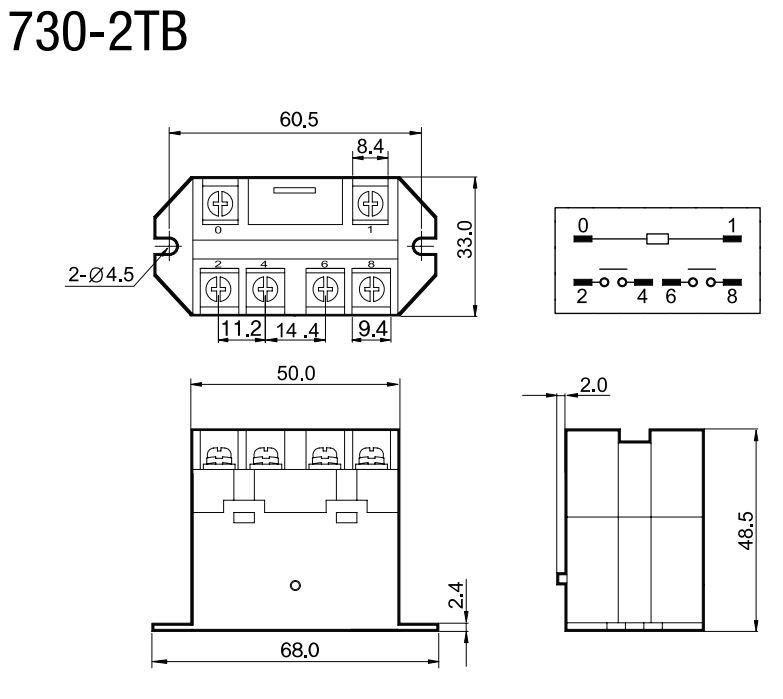

Electro Mechanical Power Relay, Panel Mount and Screw Terminals, 25A, DPST NO, 24VDC Coil Input
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Specifications
Amp Rating
25 Amp
Mounting
DIN Rail Mount
Poles
DPDT
Series
K730 Series
Options
No Special Options
Type of Relay
Power Relay
All - Voltage
24VDC
Warranty
3 Years
Alternate Part Number
K730 Series
Weight
0.5
Features Include:
- Configuration: DPST NO(2a)
- Material: Silver alloy
- Rated current: 25A
- Rated Max. Resistive Load: 25A at 30VDC/277VAC
- Max. Switching Voltage: DC900W/AC8, 310VA, DC750W/AC5, 500VA
- Min. Switching requirement: 100mA 5VDC
- Voltage range: 6VDC to 110VDC, 6VAC to 240VAC
- Power consumption: DC: approx. 1.9W, 6-48VAC: 1.7-1.9VA, 100/120VAC: 1.9-2.7VA, 200/240VAC: 1.8-2.6VA
- Minimum operating voltage: 80% of the rated coil voltage
- Dropout voltage: DC Coil: 10% of rated voltage, AC Coil: 30% of rated voltage
- Operating Time: 30ms max. at rated coil voltage
- Ambient temperature: -10 ~ +60°C(-14°F~140°F) at nonfreezing
- Weight: TB Type: 90g (3.2oz), QB Type: 120g (4.2oz)
