Kacon

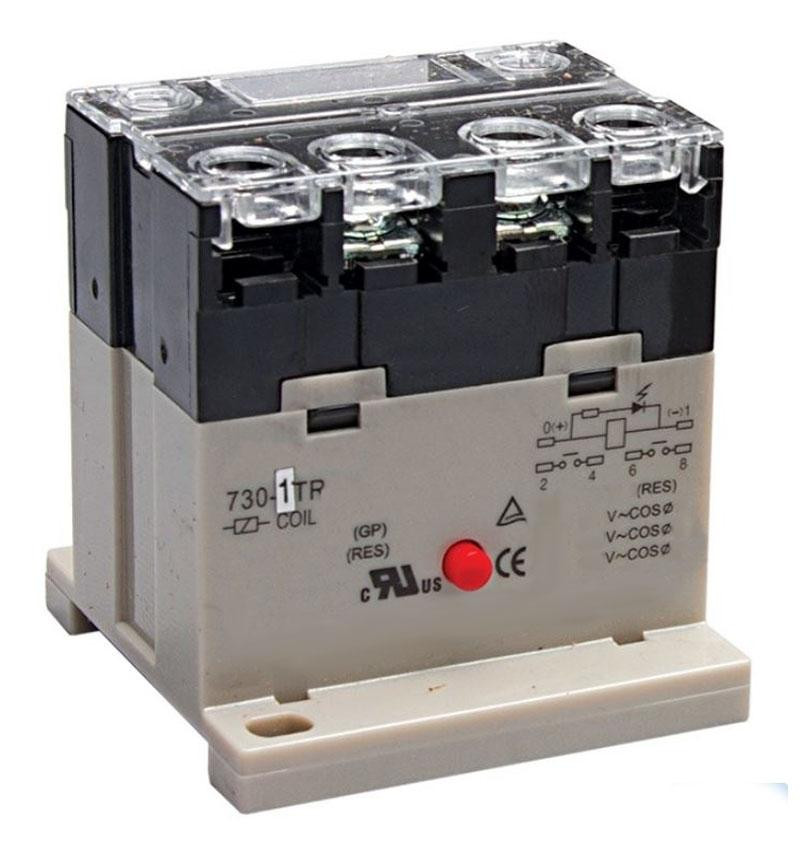

730-1TR-110VAC
Electro Mechanical Power Relay, 30A, SPST NO, 110VAC Coil Input, DIN Rail Mount and Screw Terminals
$13.44
730-1TR-24VDC
Alt: K730 Series
$13.44
Electro Mechanical Power Relay, DIN Rail Mount and Screw Terminals, 30A, SPST NO, 24VDC Coil Input
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Features Include:
- Configuration: SPST NO(1a)
- Material: Silver alloy
- Rated current: 30A
- Rated Max. Resistive Load: 30A at 30VDC/277VAC
- Max. Switching Voltage: DC900W/AC8, 310VA, DC750W/AC5, 500VA
- Min. Switching requirement: 100mA 5VDC
- Voltage range: 6VDC to 110VDC, 6VAC to 240VAC
- Power consumption: DC: approx. 1.9W, 6-48VAC: 1.7-1.9VA, 100/120VAC: 1.9-2.7VA, 200/240VAC: 1.8-2.6VA
- Minimum operating voltage: 80% of the rated coil voltage
- Dropout voltage: DC Coil: 10% of rated voltage, AC Coil: 30% of rated voltage
- Operating Time: 30ms max. at rated coil voltage
- Ambient temperature: -10 ~ +60°C(-14°F~140°F) at nonfreezing
- Weight: TB Type: 90g (3.2oz), QB Type: 120g (4.2oz)
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
730-1TR-220VAC
Electro Mechanical Power Relay, 30A, SPST NO, 220VAC Coil Input, DIN Rail Mount and Screw Terminals
$13.44
Kacon

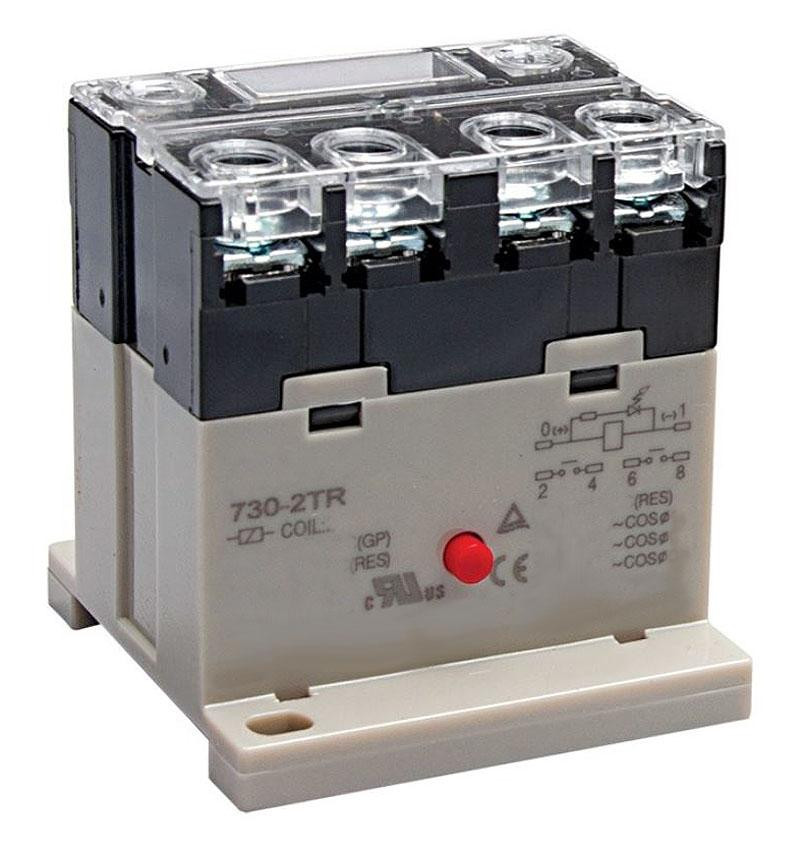

730-2TR-24VDC
