Kacon
730-1QB-220VAC
Electro Mechanical Power Relay, 30A, SPST NO, 220VAC Coil Input, Panel Mount and Quick Connector (#250)
$12.10

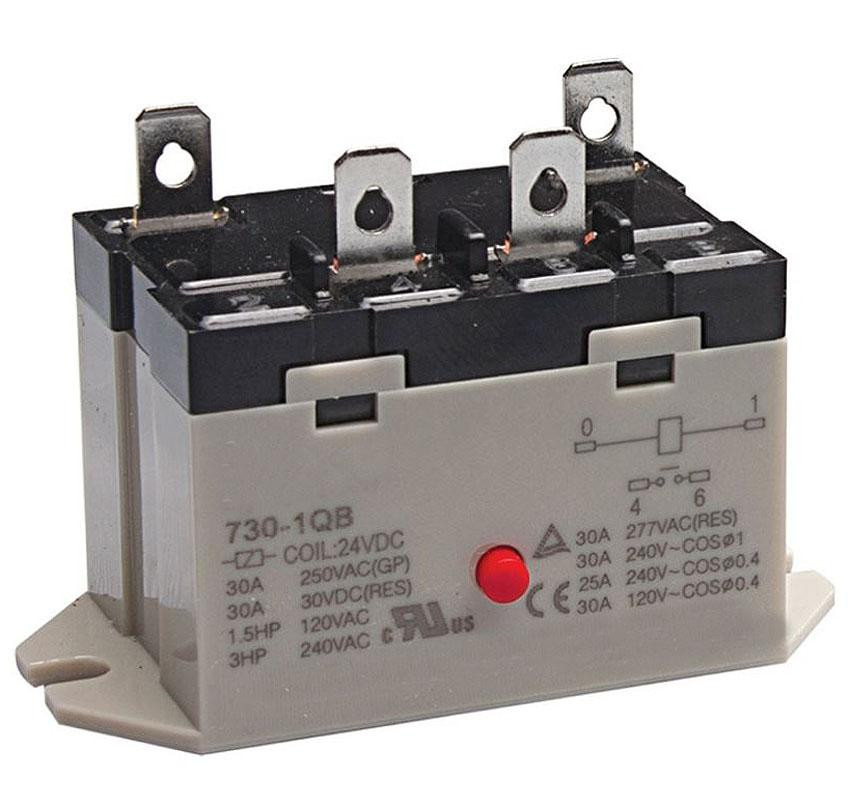

730-1QB-24VDC
Alt: K730 Series
$12.10
Electro Mechanical Power Relay, 30A, SPST NO, 24VDC Coil Input, Panel Mount and Quick Connector (#250)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Features Include:
- Configuration: SPST NO(1a)
- Material: Silver alloy
- Rated current: 30A
- Rated Max. Resistive Load: 30A at 30VDC/277VAC
- Max. Switching Voltage: DC900W/AC8, 310VA, DC750W/AC5, 500VA
- Min. Switching requirement: 100mA 5VDC
- Voltage range: 6VDC to 110VDC, 6VAC to 240VAC
- Power consumption: DC: approx. 1.9W, 6-48VAC: 1.7-1.9VA, 100/120VAC: 1.9-2.7VA, 200/240VAC: 1.8-2.6VA
- Minimum operating voltage: 80% of the rated coil voltage
- Dropout voltage: DC Coil: 10% of rated voltage, AC Coil: 30% of rated voltage
- Operating Time: 30ms max. at rated coil voltage
- Ambient temperature: -10 ~ +60°C(-14°F~140°F) at nonfreezing
- Weight: TB Type: 90g (3.2oz), QB Type: 120g (4.2oz)
Technical Information:
