Kacon
730-1QB-24VDC
Electro Mechanical Power Relay, 30A, SPST NO, 24VDC Coil Input, Panel Mount and Quick Connector (#250)
$12.10
730-1QB-220VAC
Alt: K730 Series
$12.10
Electro Mechanical Power Relay, 30A, SPST NO, 220VAC Coil Input, Panel Mount and Quick Connector (#250)
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Specifications
Amp Rating
30 Amp
Mounting
DIN Rail Mount
Poles
SPDT
Series
K730 Series
Options
No Special Options
Type of Relay
Power Relay
All - Voltage
220/240VAC
Warranty
3 Years
Alternate Part Number
K730 Series
Weight
0.5
Features Include:
- Configuration: SPST NO(1a)
- Material: Silver alloy
- Rated current: 30A
- Rated Max. Resistive Load: 30A at 30VDC/277VAC
- Max. Switching Voltage: DC900W/AC8, 310VA, DC750W/AC5, 500VA
- Min. Switching requirement: 100mA 5VDC
- Voltage range: 6VDC to 110VDC, 6VAC to 240VAC
- Power consumption: DC: approx. 1.9W, 6-48VAC: 1.7-1.9VA, 100/120VAC: 1.9-2.7VA, 200/240VAC: 1.8-2.6VA
- Minimum operating voltage: 80% of the rated coil voltage
- Dropout voltage: DC Coil: 10% of rated voltage, AC Coil: 30% of rated voltage
- Operating Time: 30ms max. at rated coil voltage
- Ambient temperature: -10 ~ +60°C(-14°F~140°F) at nonfreezing
- Weight: TB Type: 90g (3.2oz), QB Type: 120g (4.2oz)
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
730-1QB-110VAC
Electro Mechanical Power Relay, 30A, SPST NO, 110VAC Coil Input, Panel Mount and Quick Connector (#250)
$12.10
Kacon
730-1TB-220VAC
Electro Mechanical Power Relay, 30A, SPST NO, 220VAC Coil Input, Panel Mount and Screw Terminals
$14.43
Kacon
730-1QR-220VAC
Electro Mechanical Power Relay, 30A, SPST NO, 220VAC Coil Input, DIN Rail Mount and Quick Connector (#250)
$11.10
Kacon

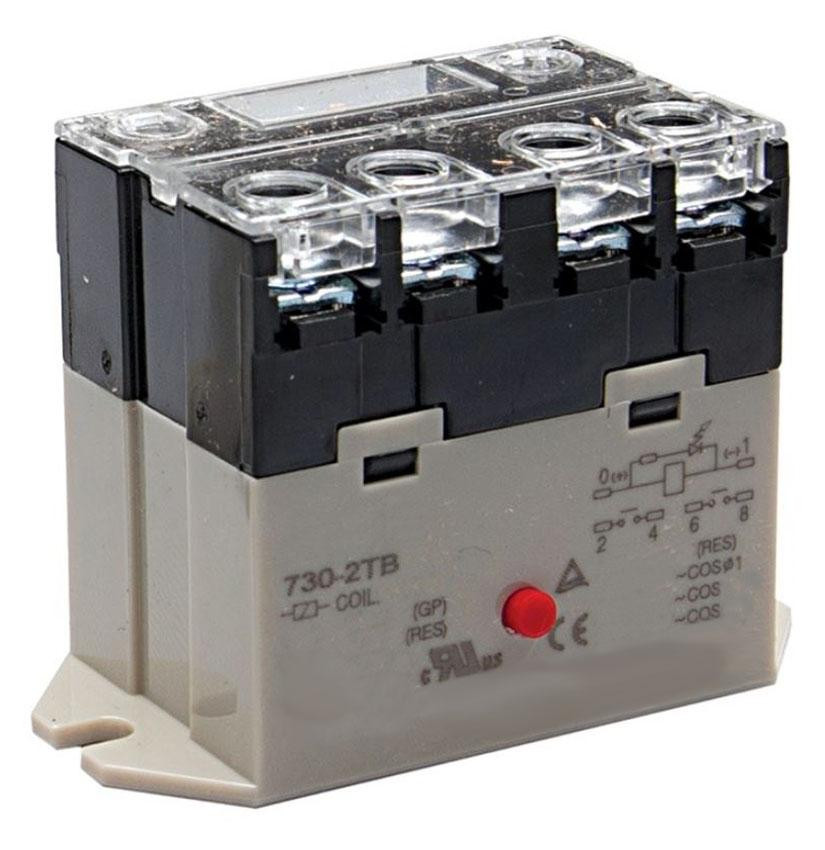

730-2TB-220VAC
