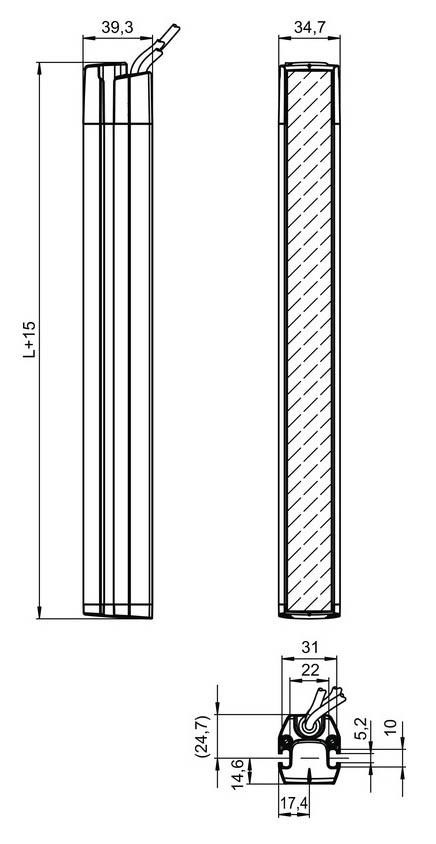

Safety Light Curtain, Transmitter, 30mm Resolution, 300mm Field Height, IP65, Use with Receiver ELC110R30-300 (72001303), ELC100 Series for Hand Protection, 34.7 x 315 x 35.4mm (WHL)

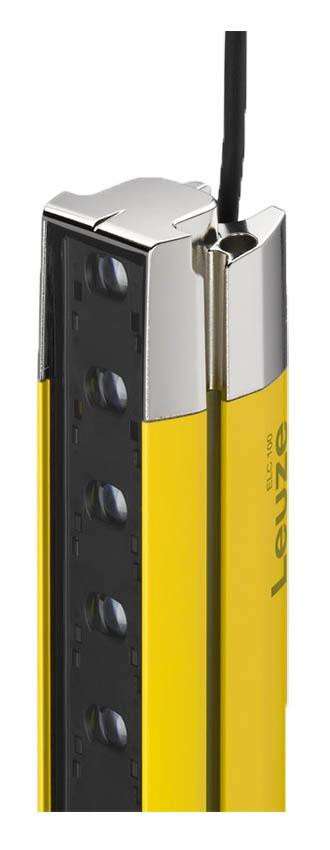

Leuze ELC Safety Light Curtains are ideal for your cost-effective machine designs. Even better, they are very easy to integrate and install!
The multi-level alignment display makes commissioning a breeze! Even rough alignments are reliably displayed. You can monitor the alignment result right from the transmitter using the easy to see, bright LEDs.
The housing allows flexible cable routing in all directions and the protective field extends in BOTH directions to the edge of the housing. This means you can mount flush at the boundary without any dead zones.
A swivel function helps with quick alignment as well. These are mounted right in the grooves on both sides of the ELC100 transmitter. Don't need any alignment? Simply use the sliding blocks that are included.
The M12 connector is easily accessible via the cable. No configuration required and the connection cables need no shielding.
The housings are made of metal throughout and protect the front screen and their tall side walls. They are expecially resistant to physical shock and vibration which makes them great for machines that have strong accelerations or vibrations.
Available with 30mm resolution (hand protection) or 17mm resolution (finger protection)
Easy part numbers; ELC110R is the receiver, ELC100T is the transmitter
Safety Light Curtain, Receiver, 30mm Resolution, 300mm Field Height, IP65, Use with Transmitter ELC100T30-300 (72000303), ELC100 Series for Hand Protection, 34.7 x 315 x 39.3mm (WHL)
