MS70S-P10-Y

Amerimation represents a number of top Korean brands that includes Menics light towers, Kacon and Boxco. They are the sole representative for North and South America.



Known for their competitive prices, Amerimation sells through distribution and is located right here in Illinois. Most products can ship from our stock, or theirs, within 1 to 2 days.

Series Features Include:

• Function: Flashing
• Power Supply: 12 ~ 48VDC, 110VAC, 220VAC(AC 50/60Hz)

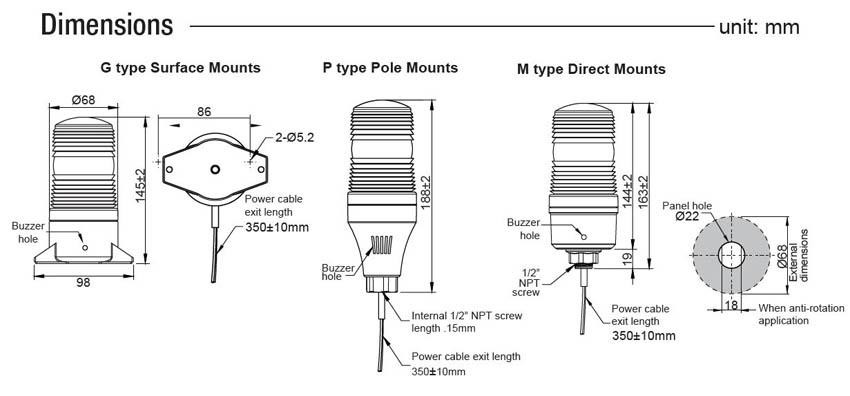

• Dimension: 68mm
• Flashing rate (2 patterns): 12~48VDC : 80±5 times per minute, 110VAC : 77±5 times per minute, 220VAC : 60±5times per minute
• Connection: UL2464/18AWG, AWM, 2C, 300V
• Material Body: Body - ABS resin Lens - PC resin
• Ambient temperature: -20 to 50°C
• Storage ambient: temperature -20 to 70°C
• Ambient Humidity: 45~85% RH
• Insulation resistance: 500VAC 50 / 60Hz for 1 minute
• Vibration: 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
• Approval: CE(DC products only), RoHS
• Protection structure: IP65
• Weight (DC type): G type: app.196g M type: app.195g P type: app.198g

Current consumption:

• 12~48VDC : 0.08~0.2A
• 110VAC : 0.07A
• 220VAC : 0.04A

Technical Information:

• Menics MS70S Series Beacon Technical Data
• Menics Mounting Options
