Menics
MS70S-M20-B
Beacon, 70mm Diameter, Xenon Strobe, Flashing, 220VAC, Blue Lens, Direct Mount, IP65
$63.04
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!
MS70S-M20-G
Alt: MS70 Series
$63.04

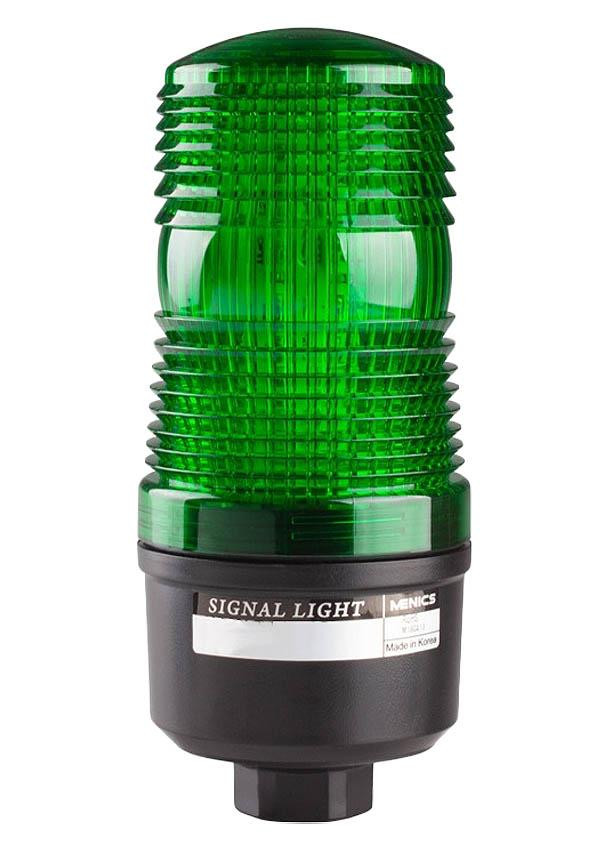

Xenon Strobe Light, Ø70mm, Direct Mount, 220VAC, Green Lens, IP65, MS70S Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Amerimation represents a number of top Korean brands that includes Menics light towers, Kacon and Boxco. They are the sole representative for North and South America.
Known for their competitive prices, Amerimation sells through distribution and is located right here in Illinois. Most products can ship from our stock, or theirs, within 1 to 2 days.
Specifications
Beacon Type
Strobe Light
Color
Green
Diameter
70mm
Light Tower Mounting
Direct/Surface Mount
All - Specific Ratings
IP65
Series
MS70 Series
Warranty
3 Years
Alternate Part Number
MS70 Series
Weight
0.5
Series Features Include:
- Function: Flashing
- Power Supply: 12 ~ 48VDC, 110VAC, 220VAC(AC 50/60Hz)
- Dimension: 68mm
- Flashing rate (2 patterns): 12~48VDC : 80±5 times per minute, 110VAC : 77±5 times per minute, 220VAC : 60±5times per minute
- Connection: UL2464/18AWG, AWM, 2C, 300V
- Material Body: Body - ABS resin Lens - PC resin
- Ambient temperature: -20 to 50°C
- Storage ambient: temperature -20 to 70°C
- Ambient Humidity: 45~85% RH
- Insulation resistance: 500VAC 50 / 60Hz for 1 minute
- Vibration: 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- Approval: CE(DC products only), RoHS
- Protection structure: IP65
- Weight (DC type): G type: app.196g M type: app.195g P type: app.198g
Current consumption:
- 12~48VDC : 0.08~0.2A
- 110VAC : 0.07A
- 220VAC : 0.04A
