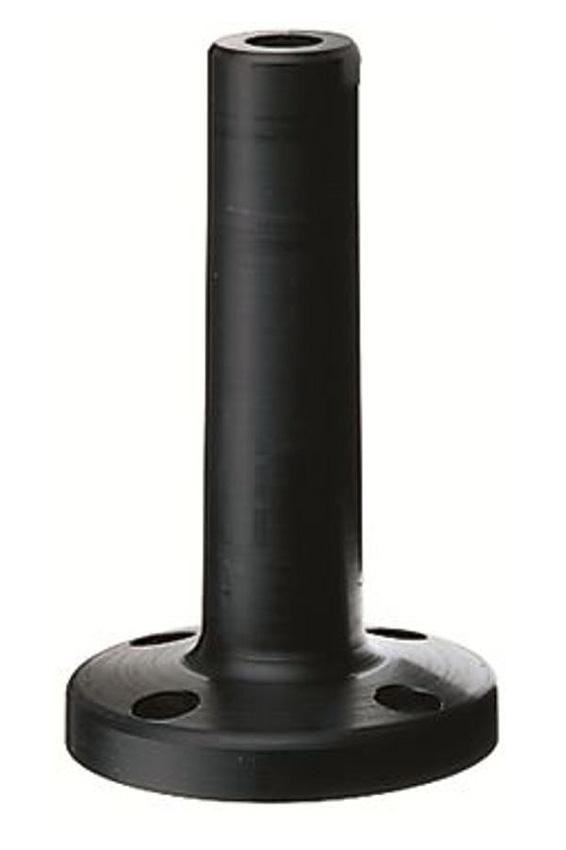

Werma
960-000-64
Base with Integrated Tube for Mounting eSIGN with Protection Class UL Type 4X, Black, Ø70mm x 110mm High
$36.50

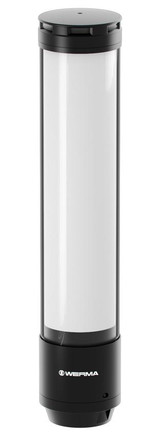

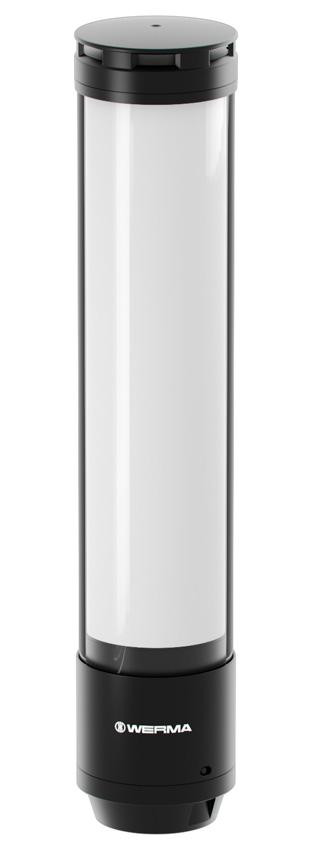

657-610-55
Alt: 657.610.55, 65761055, eSIGN, IO-Link, 15 Segments w/Siren
$475.29
Full Surface Signal Tower with 105dB Multi-Tone Siren, LED, 24VDC, Signal Effect: Blink Double Flash Flash Permanent Revolving Triple Flashes, Ø72mm x 372mm High, IP66/69K, Black PC Housing, Clear Lens, M12 4-Pole Plug, Base / Tube Mounting
- Weight:
- 1.86 LBS
- Minimum Purchase:
- 1 unit
Description
Werma's eSIGN is loaded with powerful features:
- Different lighting options and tones for any number of applications!
-
- Classic signal tower light indication by individual tiers
- Autoscale mode for full-surface signalling
- Variable filling level indication from 0 to 100%
- Each eSIGN segment (available in 9 or 15 per tower) can be set and activated individually
- UL Type 4X
- Optional siren/buzzer with up to 10 different tones, can be combined with light effects
- IO-Link model available
- M12 connection
- Can be base mounted, wall mounted or pole mounted (view accessories)
Features Include:
- Full-surface signalling with clear and unmistakable light effects for maximum visibility.
- Versatile customization options with different modes, light effects and tones.
- UL Type 4X ensures resistance to UV radiation and environmental influences.
- Classic signal tower indication in individual tiers.
- Autoscale mode for full-surface signalling and optimum visibility.
- Variable filling level indication from 0 to 100 %.
- Individual triggering to suit your requirements.

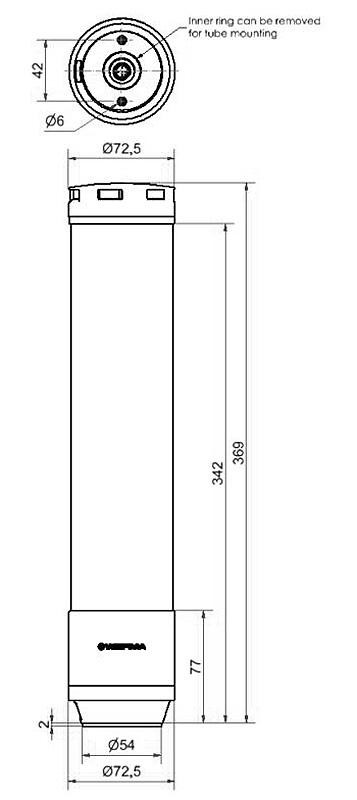

- Height: 372 mm
- Diameter: 72 mm
- Materials: PC
- Dome color: Clear
- Protection category: IP66, IP69K
- Connection: M12 plug 4-pole
- Type of fixing: Base mounting, Tube mounting
- Operating voltage tolerance: +/- 20%
- Rated operational voltage: 24 VDC
- Rated operational current: 620 mA
- Rated inrush current: 800 mA
- Light source LED
- Light color MC >1.000.000 colors
- Optical signal image: Blink, Double flash, Flash, Permanent, Revolving, Triple flash
- Volume (max) at 1m distance: 105 dB (A)
- Acoustic signal image: Multi-tone
- Number of tones: 10 tone
- Volume adjustable: Software controlled
- Volume adjustment range: 80-105 dB (A)
Technical Information:
Read more about Light Towers here!
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Werma
960-000-65
Wall Mount Bracket (One Sided Mounting) for eSIGN with Protection Class UL Type 4X, Black PA-GF Housing, Ø70mm x 98mm High
$21.00
