657-510-55
Werma

657-510-55

Alt: 657.510.55, 65751055, eSIGN, IO-Link , 15 Segments

$488.00

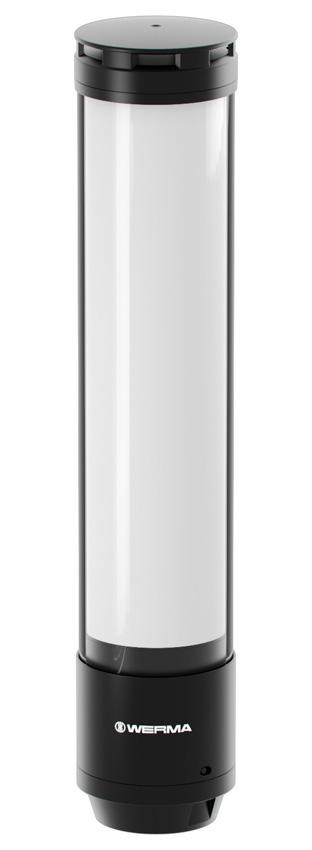

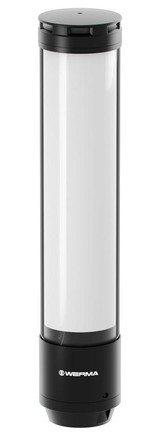

Full Surface Signal Tower, LED, 24VDC, Signal Effect: Blink Double Flash Flash Permanent Revolving Triple Flashes, IO-Link, 15 Segments, Ø72mm x 372mm High, IP66/69K, Black PC Housing, Clear Lens, M12 4-Pole Plug, Base / Tube Mounting, eSIG

Weight:
1.86 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Signal tower mode, autoscale mode, filling level mode or individual mode!
Description

Werma's eSIGN is loaded with powerful features:

  • Different lighting options and tones for any number of applications!
    • Classic signal tower light indication by individual tiers
    • Autoscale mode for full-surface signalling
    • Variable filling level indication from 0 to 100%
    • Each eSIGN segment (available in 9 or 15 per tower) can be set and activated individually
  • UL Type 4X
  • Optional siren/buzzer with up to 10 different tones, can be combined with light effects
  • IO-Link model available
  • M12 connection
  • Can be base mounted, wall mounted or pole mounted (view accessories)





Features Include:

  • Full-surface signalling with clear and unmistakable light effects for maximum visibility.
  • Versatile customization options with different modes, light effects and tones.
  • UL Type 4X ensures resistance to UV radiation and environmental influences.
  • Classic signal tower indication in individual tiers.
  • Autoscale mode for full-surface signalling and optimum visibility.
  • Variable filling level indication from 0 to 100 %.
  • Individual triggering to suit your requirements.

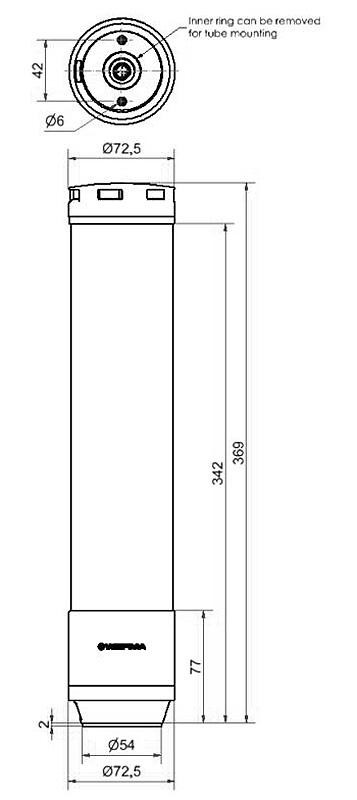

  • Height: 372 mm
  • Diameter: 72 mm
  • Materials: PC
  • Dome color: Clear
  • Protection category: IP66, IP69K
  • Connection: M12 plug 4-pole
  • Type of fixing: Base mounting, Tube mounting
  • Operating voltage tolerance: +/- 20%
  • Rated operational voltage: 24 VDC
  • Rated operational current: 555 mA
  • Rated inrush current: 800 mA
  • Light source LED
  • Light color MC >1.000.000 colors
  • Optical signal image: Blink, Double flash, Flash, Permanent, Revolving, Triple flash
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Werma

960-000-64

Base with Integrated Tube for Mounting eSIGN with Protection Class UL Type 4X, Black, Ø70mm x 110mm High

$36.50

Werma

960-000-65

Wall Mount Bracket (One Sided Mounting) for eSIGN with Protection Class UL Type 4X, Black PA-GF Housing, Ø70mm x 98mm High

$21.00
