6490652329
Alt: 649.0652.329, MAK-5236-BCD-9
$149.92

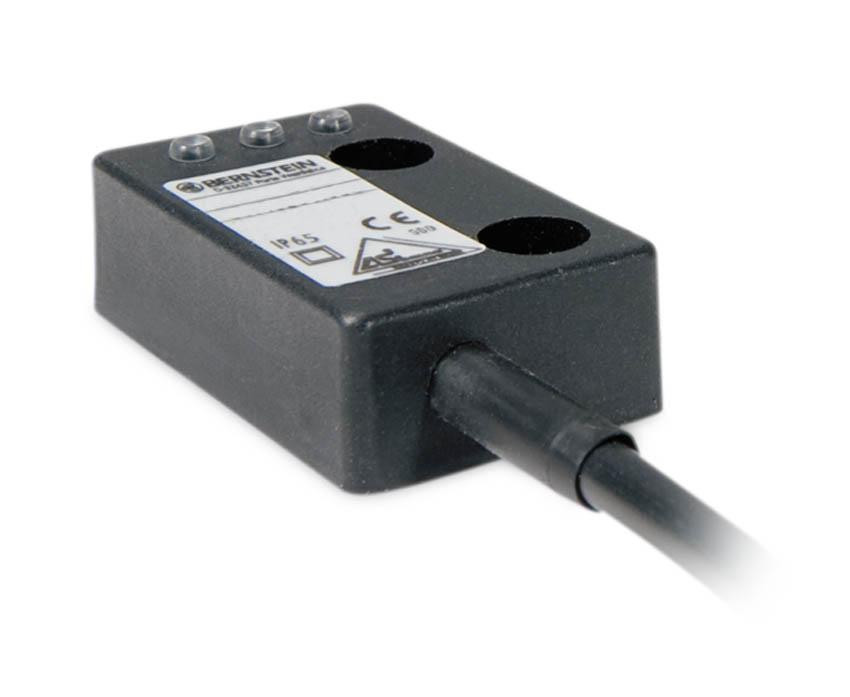

Magnetic Switch Non-Contact, Part of Safety System Can Be Used w/Safety Evaluation Unit (MUZ Series)
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Bernstein is a German manufacturer of industrial safety and enclosure technology and are well known for a wide range of sensors, switches, enclosures and operating terminals.
If you do not see the part number you are looking for, please Contact Us, we can find what you need!
Features Include:
- Assured Operating Distance: 3 mm
- Switching Element Function: N.O., N.C. combined
- Max. Switching Voltage: 170 V DC / 120 V AC
- Max. Switching Current: 400 mA DC / 280 mA AC
- Max. Switching Capacity: 0.25 VA
- Operating Frequency: 1 Hz
- Ambient Temperature (min/max): -5°C/+70°C
- Protection Class: IP67
- Enclosure: Cable 4 x AWG26 x 9 m ± 5 %; PVC - Outer jacket, black
- Termination Type: PBT, black; encapsulated reed contact
